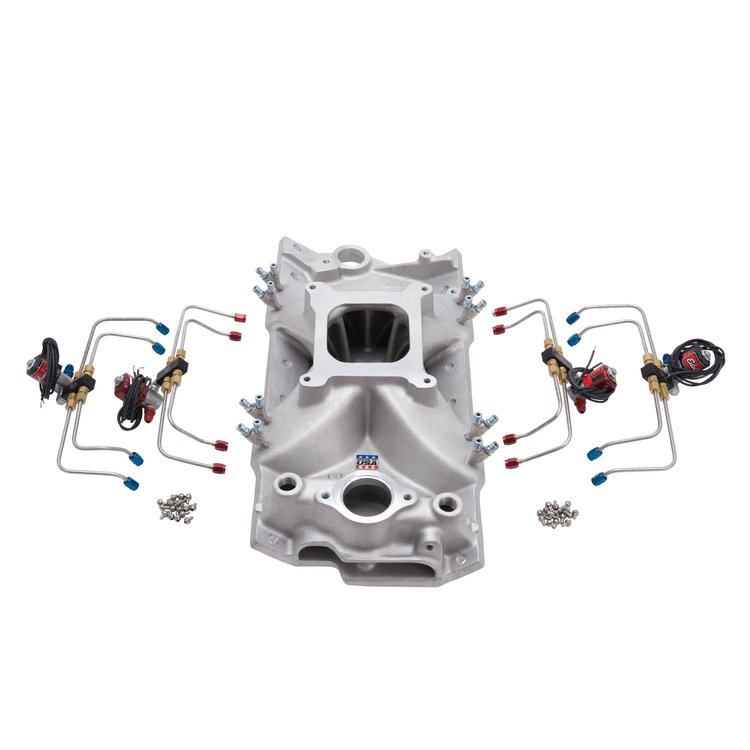

Pre-Assembled Direct Port Nitrous Plumbed Intake Manifold for Small Block Chevy with Victor Jr. Intake Manifold

Name: Pre-Assembled Direct Port Nitrous Plumbed Intake Manifold for Small Block Chevy with Victor Jr. Intake Manifold
Brand: EDELBROCK
SKU: 350-72975
Price: 2147.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Intake Manifolds

1957-1986 Small Block Chevy 262-400ci
Victor Jr. Intake Manifold
3500-8000 RPM Range
4150-Style Carb Flange

These versatile manifolds are excellent for many applications from high-performance street to drag/circle track racing. They provide maximum performance for engines with standard port location, iron and aluminum cylinder heads. The low-profile of the #2975 works well in applications with minimal hood clearance and where 1" or 2" spacers can be used for performance tuning. When carb spacers are not allowed, the #2999 should be used. The Victor Jr. Port Matched manifold has CNC-blended port exits that match any competition head using Fel-Pro gasket p/n 375-1206 or JEGS gasket p/n 555-210001
Installation Notes:
Port exit dimensions: 1.10' x 1.90'
Distance from bolt hole centerline to port roof 0.80'; to port floor 1.10'
Carb pad height = 4.58' with 3° carb angle.
Recommended intake gasket; JEGS 555-210001
