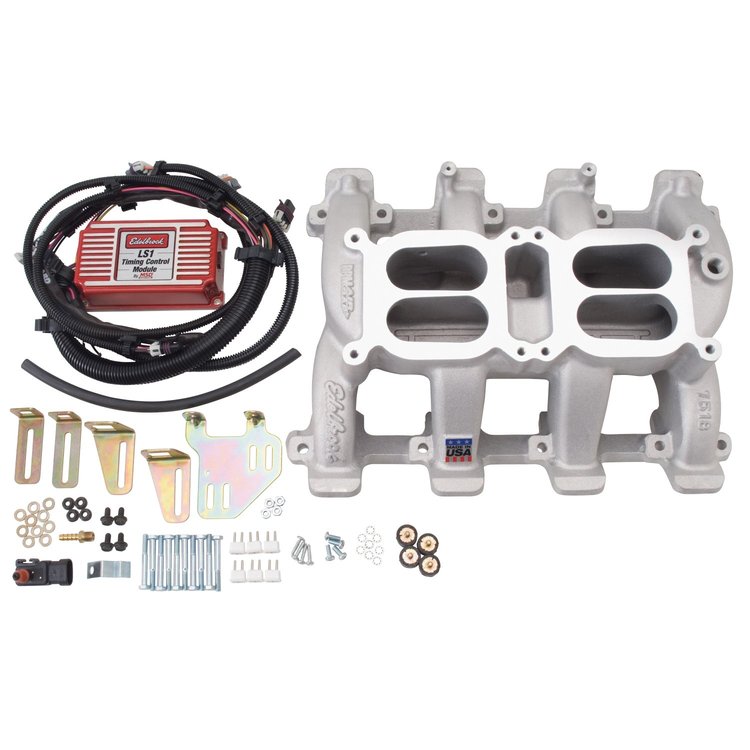

Intake Manifold Systems
- GM Gen III LS
- With Timing Control Module
- Cathedral Port
- 1500-6500 RPM Range
- Satin Finish
Designed for LS1, LS6, LM7 (5.3L), LR4 (4.8L), and LQ4 (6.0L) Gen III LS series engines.Installation Notes - Small Block Gen III LS Series Engines
- Manifold Height: (A) 5.05", (B) 5.64"Click here to determine carburetor pad height
- Port Exit Dimensions: .98" x 2.72" Carb center to carb center: 6-7/16"
- Uses LS1/LS6 style individual port o-ring seals.
- Designed for use with Edelbrock or Carter carburetors only.
- Recommended intake gasket; Fel-Pro 555-210800
- Carburetor Recommendations: Edelbrock Thunder Series AVS or Performer Series carb, 500 cfm.
Note: - LS1 Timing Control Module #91238 works on LS1 24x reluctor wheel (crank trigger) applications only
- LS2 applications with 58x reluctor (crank trigger) requires MSD 121-6012 ignition controller
- LS1 (24x) applications can be recognized by the rear mounted cam position sensor (black in color), while LS2 (58x) cam sensor is mounted in the timing cover and is gray in color.
Part TypeIntake Manifold
BrandEDELBROCK
Package Height7.3
Package Width14.6
Package Length24.0
Weight22.8 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard deck
UsageStreet/Hi-Performance
Number Of CarbsTwo
Intake MaterialAluminum
PositionN/A
Intake StyleDual quad
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeStandard
Intake FinishNatural
Carburetor QuantityTwo
Engine Make/SizeChevy Small Block LS1
Intake Section IncludedComplete
Basic Operating Rpm Range1,500-6,500
EgrWithout EGR
Rpm Range1500-6500
Vendor Part Number7518
Package Qty1
Package TypeEA
