Product Discontinued
EDELBROCKPART NUMBER: 350-75201

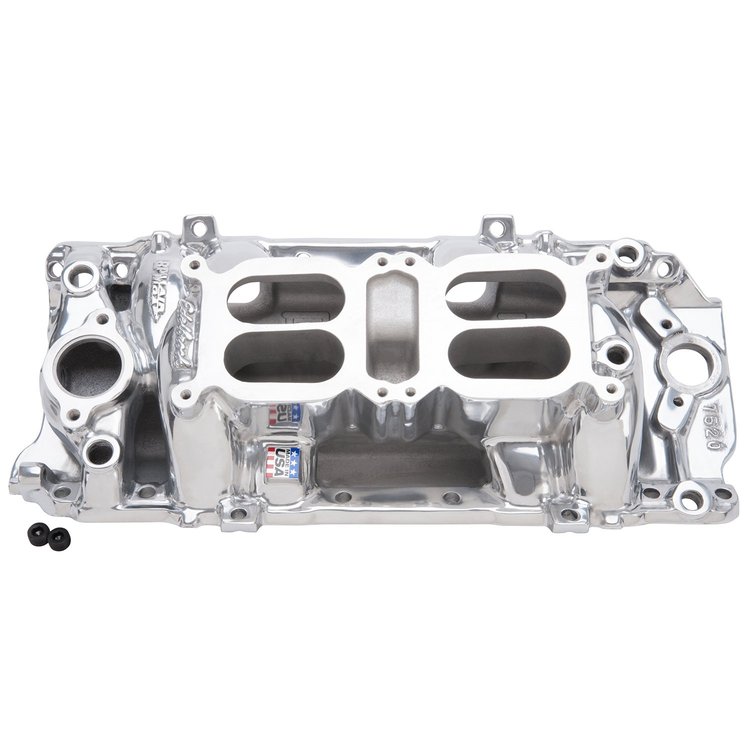

RPM Air-Gap Dual-Quad Manifold 1975 and Earlier BB-Chevy with Oval Ports
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy
- RPM Air-Gap Dual-Quad Manifold-O
- Big Block Chevy 396-502
- Oval Port Heads
- 1500-6500 RPM Range
- Polished Finish

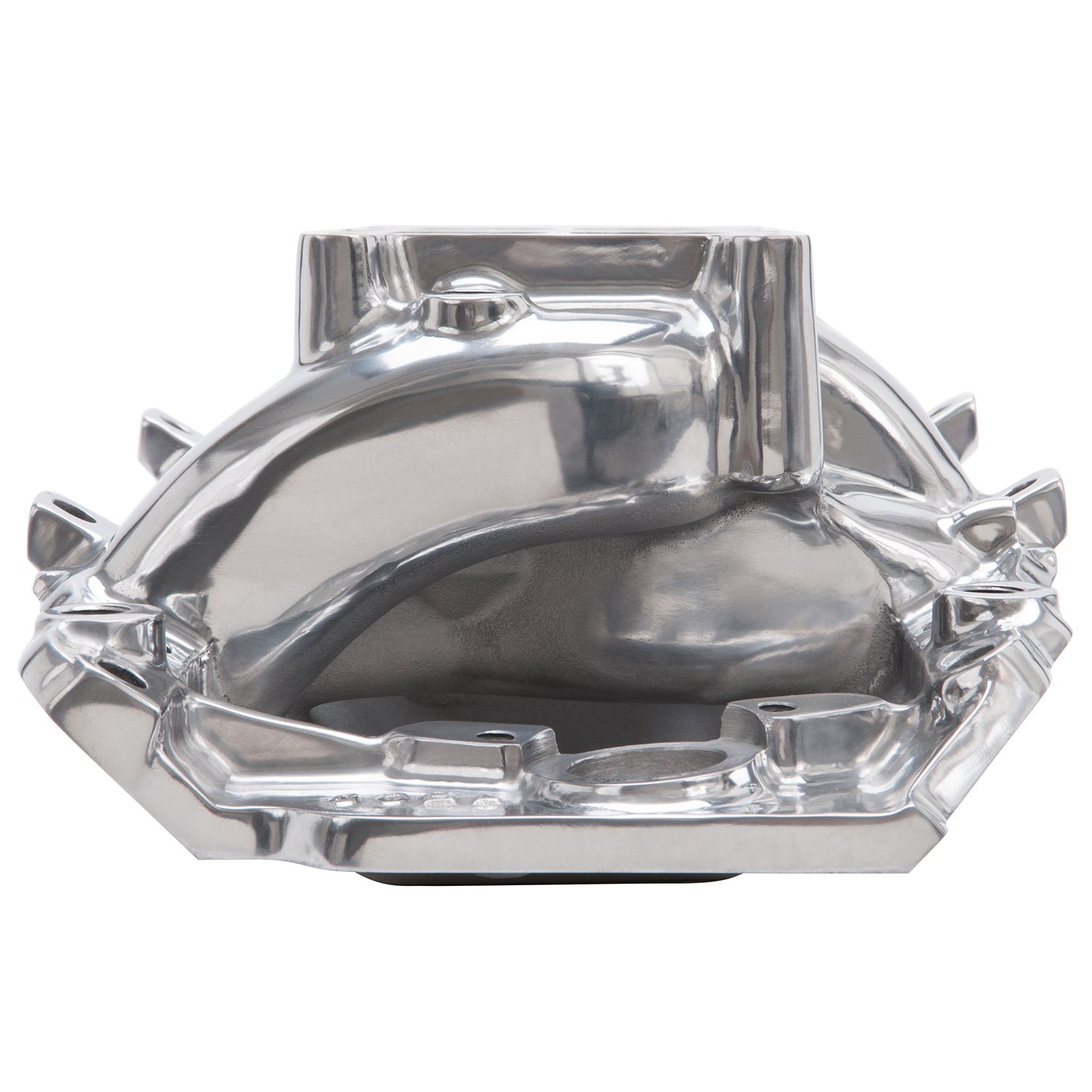

Designed for street 396-502ci chevy big blocks with oval port heads. These intakes stand 7/8" taller than the low-profile C-66-O/R dual-quad intake and offer performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge.
Installation Notes - Manifold Height: (A) 5.18", (B) 5.94"
- Carburetor Pad Height: 5.56" Click here to determine carburetor pad height
- Port exit dimensions: 1.57" x 2.27"
- Will not fit with HEI or mechanical tach drive distributors.
- Manifold not equipped with EGR.
- Recommended intake gasket: Jegs p/n 555-210102
Carburetor Recommendations - Edelbrock 500cfm Thunder AVS Electric Choke p/n 350-1803 or Manual Choke p/n 350-1804
Part TypeIntake Manifold
BrandEDELBROCK
Package Height9.1
Package Width13.1
Package Length25.0
Weight23.0 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard Deck
UsageStreet/Hi-Performance
Number Of CarbsTwo
Intake MaterialAluminum
PositionN/A
Intake StyleDual quad
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeOval Port- Large
Intake FinishPolished
Carburetor QuantityTwo
Engine Make/SizeChevy Big Block (396-502)
Intake Section IncludedComplete
Basic Operating Rpm Range1,500-6,000
EgrWithout EGR
Rpm Range1500-6000
Vendor Part Number75201
Package Qty1
Package TypeEA
