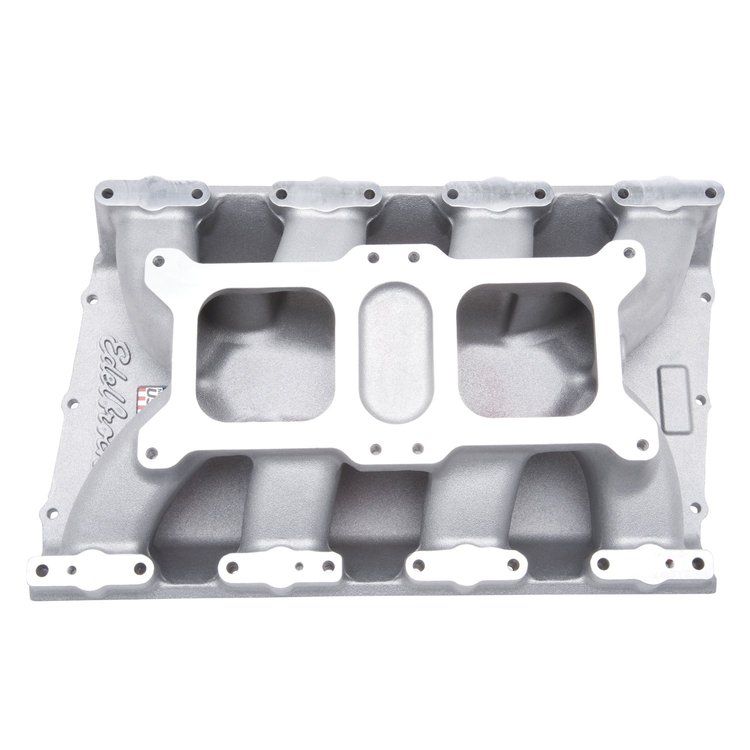

Dual-Quad HEMI Intake Manifold Gen II 426-572 HEMI
- Dual-Quad HEMI Intake Manifold
- Gen II 426-572 HEMI
- Single-Plane Air-Gap
- Dual Square-Bore 4150 Carburetor Flange
Dual-Quad HEMI intake manifolds are intended for use with Mopar Gen II (1964-71) 426-572 HEMI engines operating in the 2,500 to 6,500+ range. These new intake manifolds are a single-plane Air-Gap® design with a dual square-bore 4150 style carburetor pad. Carburetor spacing and height are the same as Mopar Performance dual-quad #312-P5153737, making it a direct bolt-on to all vehicles with a shaker hood. They also retain the same carburetor linkage location from the factory. The Dual-Quad HEMI is compatible with factory style cylinder heads, but optimized for use with Edelbrock Victor Jr. HEMI cylinder heads.
Installation Notes: - Port exit dimensions: 1.80" x 1.98"
- Manifold height: (A) 4.68" , (B) 5.51"
- Carb Pad Height: 5.1" Click here to determine carburetor pad height.
- Recommended intake gasket: Fel-Pro 375-1234
- Requires Edelbrock Coil Bracket 350-8079 for use with OE style coils.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.
Edelbrock Dual-Quad HEMI intake manifolds are perfect for use with Mopar Gen II (1964-71) 426-572 HEMI engines operating in the 2,500 to 6,500+ range. These intake manifolds are a single-plane Air-Gap design with a dual square-bore 4150 style carburetor pad. These intakes can be a direct bolt-on to all vehicles with a shaker hood. They also retain the same carburetor linkage location from the factory. The Dual-Quad HEMI intake is compatible with factory style cylinder heads. Best for use with Edelbrock Victor Jr. HEMI cylinder heads.
NOTE: Requires the use of Coil Bracket 350-8079 when using OE style coils.
