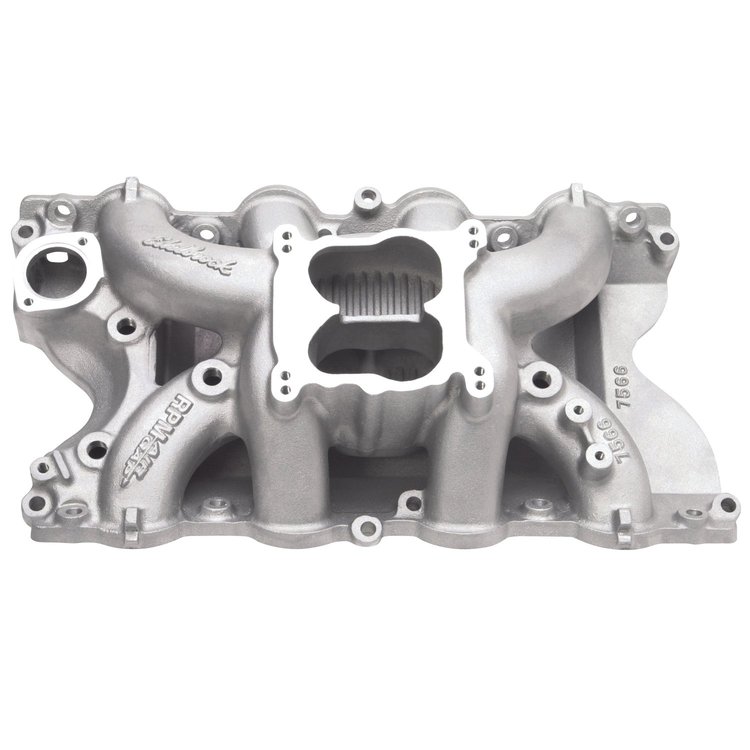

RPM Air-Gap 460 Ford Intake Manifold
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-7566

RPM Air-Gap 460 Ford Intake Manifold

$56995
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Ford
  • Big Block Ford 429-490ci
  • 4-bbl Spread-Bore Carb Flange (non-EGR)
  • 1500-6500 RPM Range
  • Satin Finish

    Designed for Ford 429-460 street and high-performance applications with standard or Cobra Jet cylinder heads. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. This manifold is designed with a larger cross-sectional area (3.3 square inches) than Performer RPM 460 intake manifold #350-7166 for more gains with high-performance and large displacement engines. The carb mount flange accepts both square-bore and spread-bore carbs for Cobra Jet applications. Will not fit 1988 and later models.

    Installation Notes:
  • Port exit dimensions: 1.76' x 2.06'
  • Manifold height: (A) 4.81' , (B) 6.15'
  • Carb pad height = 5.48' Click here to determine carburetor pad height.
  • Recommended intake gasket: JEGS p/n 555-210305 or JEGS p/n 555-210306

    Carb Recommendations
  • Edelbrock 750 cfm Performer Carburetor Manual Choke p/n 350-1407 , Electric Choke p/n 350-1411
  • Edelbrock 800 cfm Performer Carburetor Manual Choke p/n 350-1412 , Electric Choke p/n 350-1413
  • Edelbrock 800 cfm Thunder AVS Carburetor Manual Choke p/n 350-1812 , Electric Choke p/n 350-1813
  • Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeIntake Manifold
BrandEDELBROCK
Package Height7.5
Package Width15.2
Package Length23.5
Weight24.38 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard deck
UsageStreet/Hi-Performance
Number Of CarbsOne
Intake MaterialAluminum
PositionN/A
Intake StyleDual plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeStandard
Intake FinishNatural
Carburetor QuantityOne
Engine Make/SizeFord Big Block
Intake Section IncludedComplete
Basic Operating Rpm Range1,500-6,500
EgrWithout EGR
Rpm Range1500-6500
Vendor Part Number7566
Package Qty1
Package TypeEA
