Vehicle Info NeededEDELBROCKPART NUMBER: 350-7581

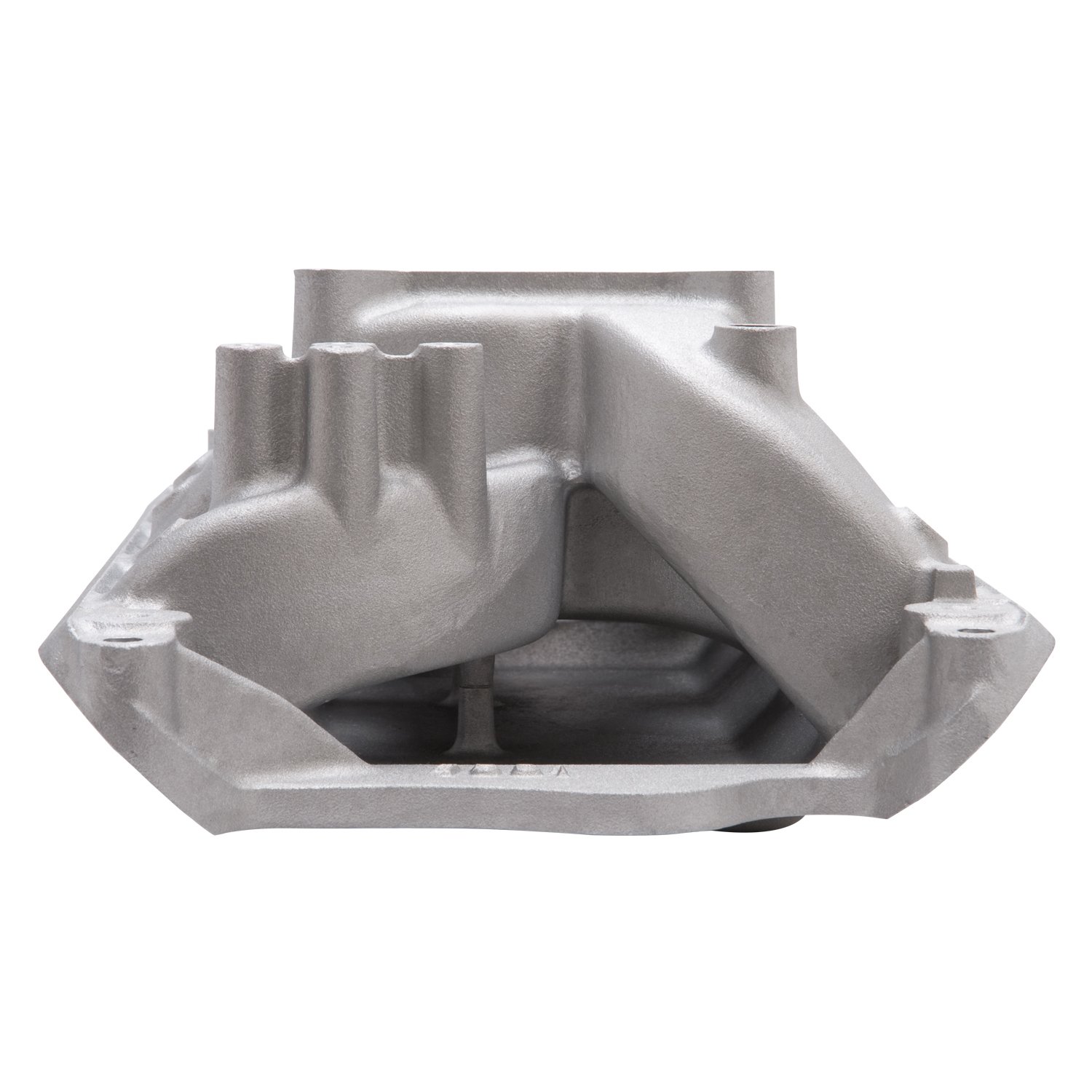

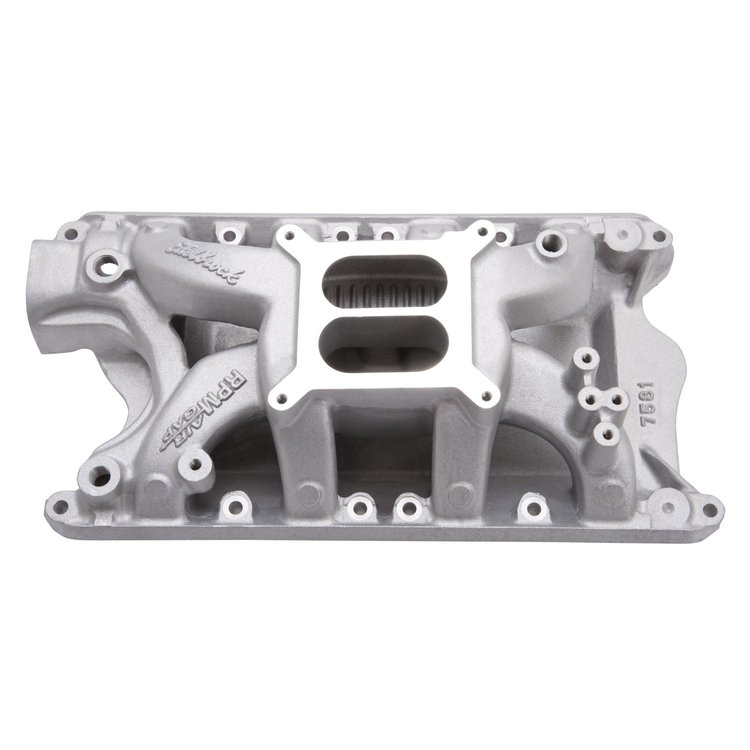

RPM Air-Gap Ford 351W Intake Manifold
$49295
1 left in stock
Ships Today
Lowest Price GuaranteeFord
- Small Block Ford 351 Windsor
- 4-bbl Square-Bore Carb Flange (non-EGR)
- 1500-6500 RPM Range
- Satin Finish
Designed for high-performance Ford Windsors with 351-400ci. Larger cross-sectional area and a taller carb flange than #350-7181 for compatibility with large displacement, stroker 351W-based engines. Includes bosses for nitrous and rear water crossover. No provision for exhaust-heated choke and no exhaust crossover.
Installation Notes: - Port exit dimensions: 1.12' x 1.86'
- Manifold height: (A) 5.81' , (B) 6.19'
- Carb pad height = 5.75' Click here to determine carburetor pad height.
- Recommended Intake Gaskets: JEGS p/n 555-210200 (For van installations use OEM Ford "van" intake gasket set)
Carb Recommendations - Edelbrock 650 cfm Thunder AVS Carburetor Manual Choke p/n 350-1805 , Electric Choke p/n 350-1806
- Edelbrock Performer 750cfm Carburetor Manual Choke p/n 350-1407 , Electric Choke p/n 350-1411
- Edelbrock Performer 800cfm Carburetor Manual Choke p/n 350-1412 , Electric Choke p/n 350-1413
- Edelbrock Thunder AVS 800cfm Carburetor Manual Choke p/n 350-1812 , Electric Choke p/n 350-1813
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntake Manifold
BrandEDELBROCK
Package Height7.5
Package Width15.5
Package Length23.5
Weight21.75 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard Deck
UsageStreet/Hi-Performance
Number Of CarbsOne
Intake MaterialAluminum
PositionN/A
Intake StyleDual plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeStandard
Intake FinishNatural
Carburetor QuantityOne
Engine Make/SizeFord Small Block
Intake Section IncludedComplete
Basic Operating Rpm Range1,500-6,500
EgrWithout EGR
Rpm Range1500-6500
Part FitmentSemi Universal
Vendor Part Number7581
Package Qty1
Package TypeEA
