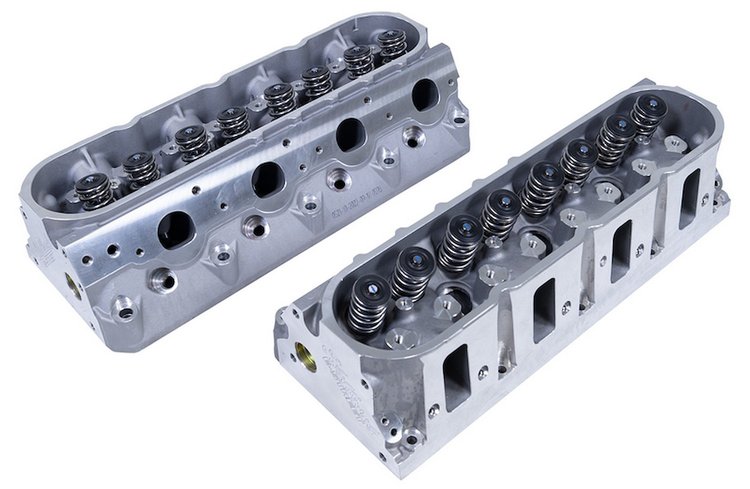

Edelbrock E-Street cylinder heads for GM Gen IV LS3 engines are engineered as premium bolt-on aluminum cylinder heads for street performance and high-performance engine builds. Manufactured from A356-T6 aluminum and assembled with premium valvetrain components, these heads provide improved airflow, durability, and power capability while maintaining compatibility with factory LS3 components.

Edelbrock 77618 Features:

• GM Gen IV LS3 engines
• 15-degree valve angle
• A356-T6 aluminum construction

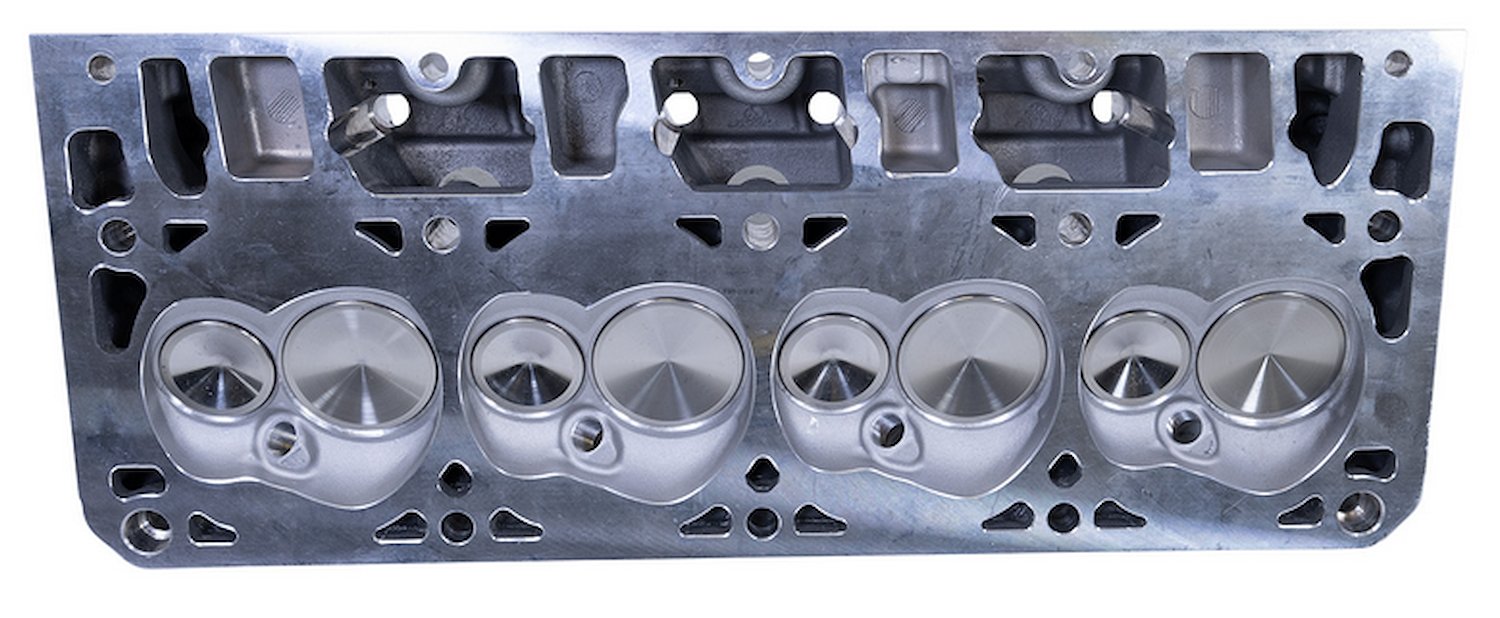

• 69 cc CNC-profiled combustion chambers
• 260 cc as-cast intake runners
• Rectangular intake ports
• 2.165 in. intake valves
• 1.590 in. exhaust valves
• Dual valve springs for camshafts up to .660 in. lift
• COMP Cams valvetrain components
• Manganese bronze valve guides
• Powdered-metal valve seats compatible with unleaded fuel
• One-piece stainless steel valves with hardened tips
• Dual spark plug pocket design accepts tapered-seat or gasket-seat spark plugs
• Reinforced rocker arm bosses for increased strength
• Assembled and prepared for installation out of the box
• Sold as a pair

Edelbrock 77618 Notes:

• Fits 2007 and later GM Gen IV LS3 engines and other Gen III/IV LS engines
• Compatible with 7.0L LS engines using LS7, C5R, or sleeved production blocks
• Designed for engines with 3.900 in. or larger bore diameters
• Can be used on 4.8L and 5.3L engines with 3.780 in. bores after verifying valve-to-piston and valve-to-bore clearance
• Requires new cylinder head bolts or studs with hardened washers
• Accepts stock or aftermarket Gen III/IV rocker arms
• Correct pushrod length must be verified during installation

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
