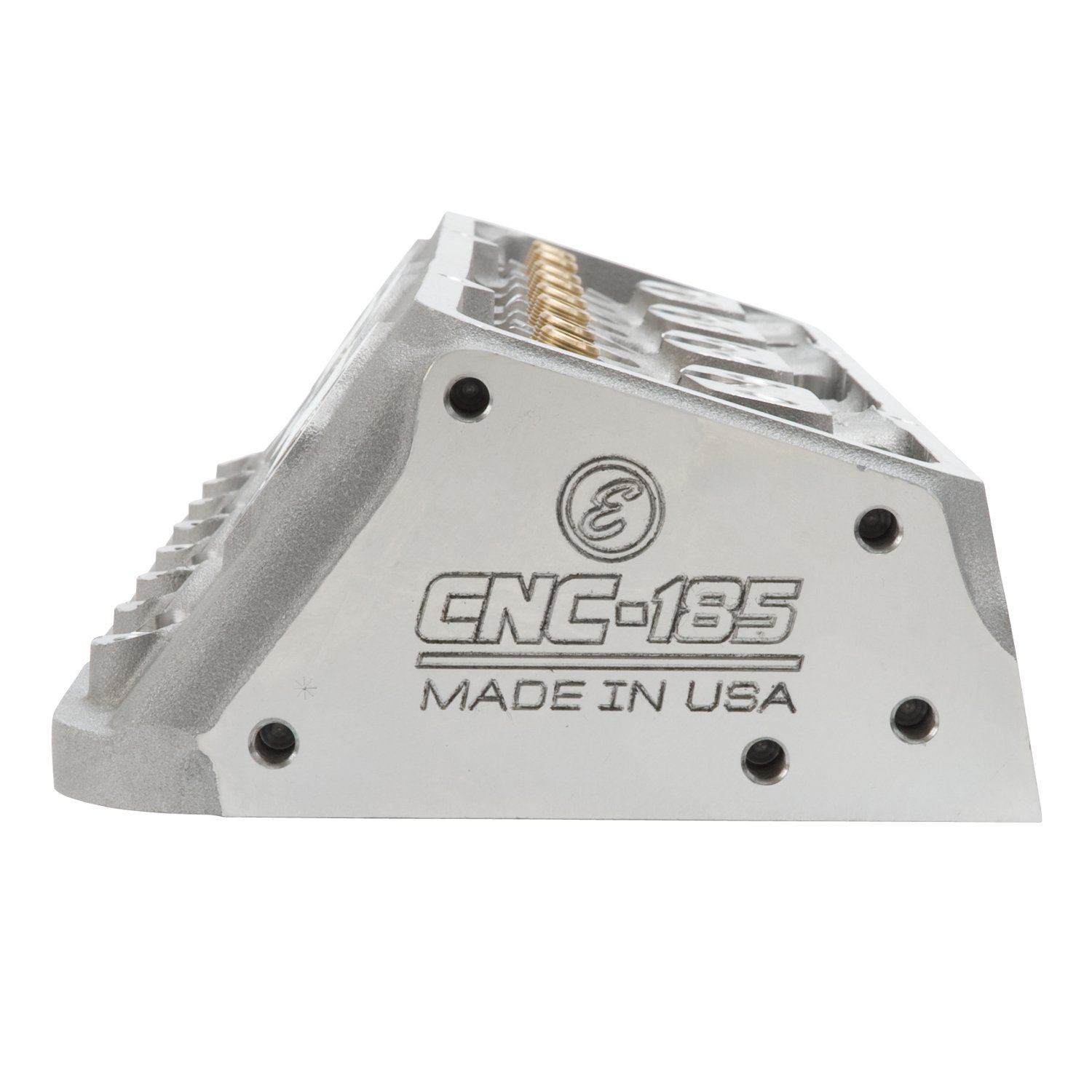

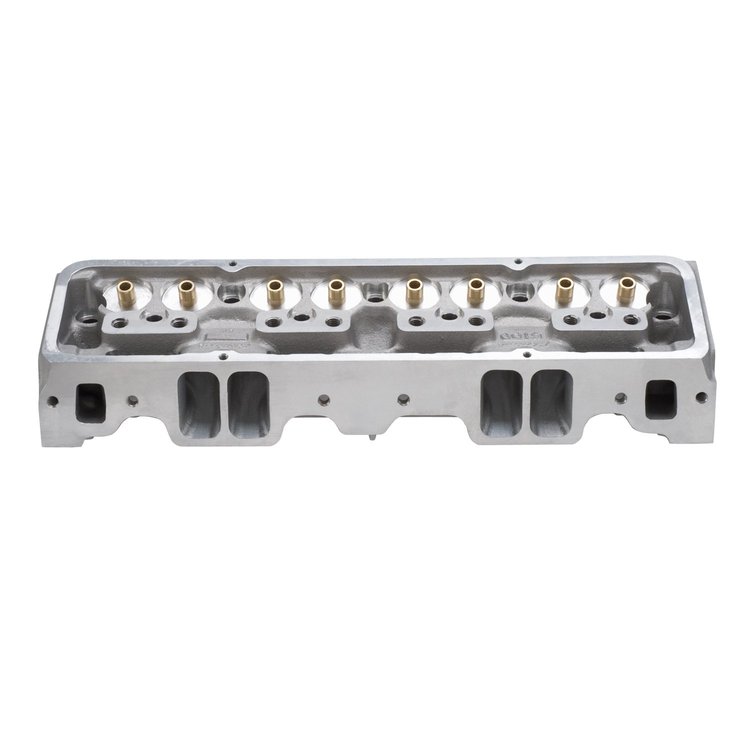

E-CNC 185 Cylinder Head for Small Block Chevy

Product Discontinued

EDELBROCKPART NUMBER: 350-79889

E-CNC 185 Cylinder Head for Small Block Chevy

Name: E-CNC 185 Cylinder Head for Small Block Chevy
Brand: EDELBROCK
SKU: 350-79889
Price: 682.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

E-CNC 185

1986 & Earlier Small Block Chevy 302-400ci
Port Volumes: 185cc/75cc
Combustion Chamber size: 64cc
Straight Spark Plug

Bare Head, Sold Each

Combustion Chamber Volume:	64cc
Intake Runner Volume:	185cc
Exhaust Runner Volume:	75cc
Intake Valve Diameter:	2.02' (Valves not included)
Exhaust Valve Diameter:	1.60' (Valves not included)
Valve Stem Diameter:	N/A
Valve Guides:
Deck Thickness:	9/16'
Valve Spring Diameter:	N/A
Valve Spring Maximum Lift:	N/A
Rocker Stud:	N/A
Guideplate:	N/A
Pushrod Diameter:	N/A
Valve Angle:	23°
Exhaust Port Location:	Stock
Spark Plug Fitment:	14mm x 3/4' Reach, Gasket Seat

Valve Lift	Intake	Exhaust
.100'	61	53
.200'	129	106
.300'	186	147
.400'	231	185
.500'	250	199
.600'	254	203
.700'	253	209
Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O

Part TypeCylinder Head

BrandEDELBROCK

Package Height8.5

Package Width11.0

Package Length24.75

Weight25.0 PG

Part CategoryPerformance Parts

Cylinder Head MaterialAluminum

Intake Port LocationStandard

EmissionNon-Emissions

Exhaust Valves IncludedNo

Locks IncludedNo

Engine Make/SizeChevy Small Block (262-400)

Retainers IncludedNo

Guideplates IncludedNo

Rocker Arms IncludedNo

Oiling StyleThrough pushrod

Rocker Arm Nuts IncludedNo

Cylinder Head FinishNatural

Valve Seats MachinedNo

Valve Seat MaterialDuctile iron

Heat CrossoverNo

FinishCast Steel

Valve Springs IncludedNo

Spark Plug StyleStraight

UsageCompetition

Damper Spring IncludedNo

Valve Guides IncludedYes

Cnc-Machined Intake RunnerYes

Intake Valves IncludedNo

QuantitySold individually

Cylinder Head TypeStandard

Valve Stem Seals IncludedNo

Intake Valve Diameter2.02 in (51.308 mm)

Accessory Bolt Holes DrilledYes

Exhaust Runner Volume (Cc)75

Exhaust Port LocationStandard

Valve Guide MaterialManganese bronze

TypeBare

Combustion Chamber Volume (Cc)64

Machined For O-RingNo

PreparationRequires Professional Preparation (Bare)

Steam Holes DrilledNo

Rocker Arm Studs IncludedNo

Cylinder Head StyleBare

Valve Cover Mounting StylePerimeter bolt

Intake Runner Volume (Cc)185

Cnc-Machined Exhaust RunnerYes

Cnc-Machined Combustion ChamberYes

Exhaust Valve Diameter1.6 in (40.64 mm)

Vendor Part Number79889

Package Qty1

Package TypeEA
