Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Sensors
- Wide Band Amplifier Kit
- Dual Channel

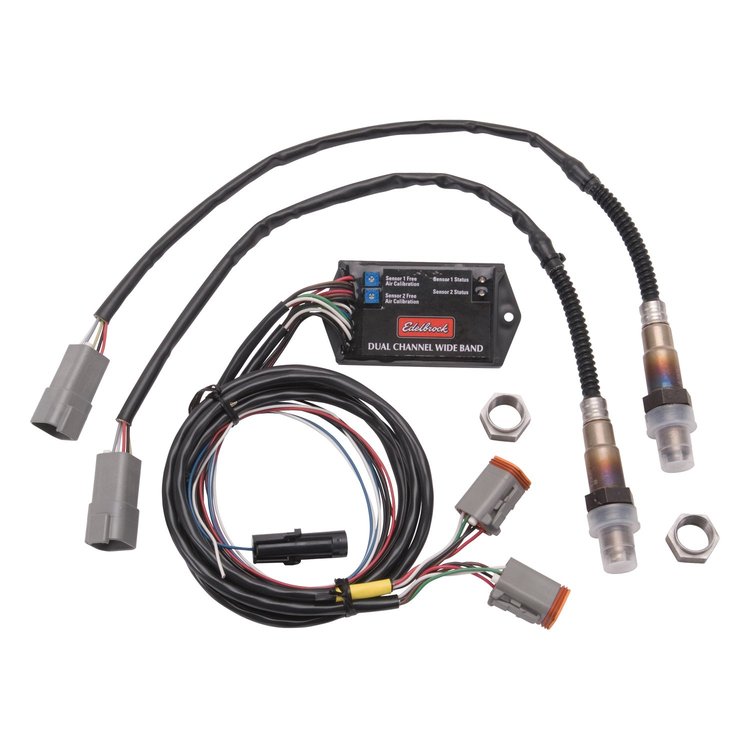

This Edelbrock Wide Band Air/Fuel Ratio interface unit will not only work with all current Edelbrock EFI systems, but with any aftermarket EFI system that can accept a 0-5 volt input for monitoring Air Fuel Ratios. Features two independent 0-5V analog outputs that are linearly scaled with 0V=10.0 AFR and 5V=20.0 AFR. Includes interface unit, sensor, weld-in bungs and all necessary wiring. Does not have internal data logging capability and only includes a single oxygen sensor. For data acquisition applications requiring one oxygen sensors, use Wide Band kit #350-3532 - Allows improved Closed Loop control of the current Pro-Flo EFI systems
- Suitable for automotive, motorcycle, and other 4-Stroke engine applications
- Highly accurate with less than +/- 0.10 AFR error over 10.3 - 19.5 AFR range
- Easy free-air calibration procedure corrects for sensor aging effects
- 0-5V analog AFR output for interface to EFI, Data or Dyno instrumentation.
- Wide supply voltage range from 11-18V allows operation from battery on small engines or race vehicles with out an alternator
- Current draw is approx. 1 amp
- Features compact 4" x 2" x 0.5" water-proof enclosure
Part TypeOxygen Sensor
BrandEDELBROCK
Package Height2.5
Package Width9.25
Package Length10.75
Weight1.65 PG
Part CategoryPerformance Parts
TypeScrew-In
Wire Number2
QuantitySold as a kit
Voltage Range0-5 V
Vendor Part Number91170
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
