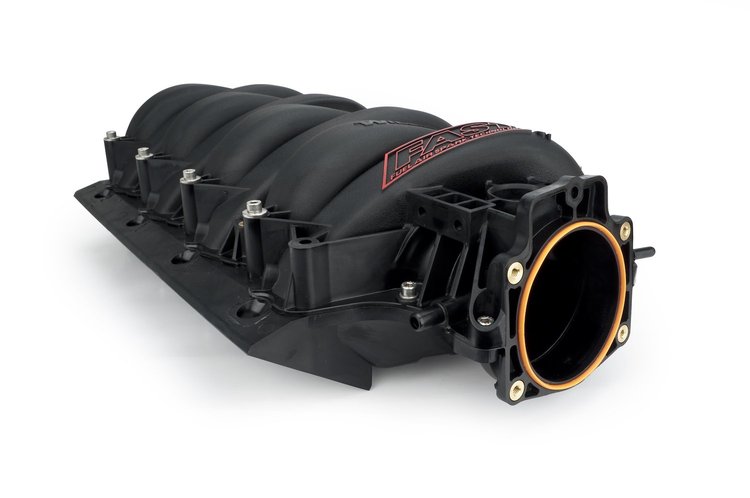

LSX Black Intake Manifold LS1/LS2/LS6

Name: LSX Black Intake Manifold LS1/LS2/LS6
Brand: FAST
SKU: 244-54039B
Price: 1245.95 USD
Availability: InStock

^$1,245⁹⁵

2 left in stock

Ships Today

Lowest Price Guarantee

LSX Black Intake Manifolds

LSX Black Intake Manifold

LS1/LS2/LS6

92mm Throttle Body Inlet

For Cathedral Port Cylinder Heads

Page Title

FAST 54039B LSX Intake Manifold Features:

Black version of the original LSX™ intake with a 92mm opening and added refinements
Includes stainless steel bolts, threaded insert throttle body mounts, and mounting hardware
Incorporates high-quality polymer materials, resisting the "heat sink" effect of aluminum
Maximizes the potential of other popular engine performance upgrades, such as cylinder heads
Improved throttle body sealing flange and o-ring gasket
50-state legal under C.A.R.B. E.O. #D-279-9

Bolt-on Intake Performance Right out of the Box

FAST's LSX 92 mm Intake Manifold is the only three-piece Gen III composite manifold proven to deliver increased performance without compromising bottom-end drivability or high RPM power. It is designed for street and racing applications on GM Gen III (LS1/LS2/LS6) engines. Included are corrosion-free stainless steel assembly bolts, a throttle body sealing flange with an o-ring gasket, and a threaded insert throttle body mount for increased durability.

Part TypeIntake Manifold

Product LineFAST LSX 92 mm Intake Manifold and Components

BrandFAST

Package Height10.0

Package Width14.5

Package Length28.25

Weight17.175 PG

Part CategoryPerformance Parts

Throttle Body Bore Size (Mm)92

Aftermarket Fuel Rail RequiredNo

Runners RemovableYes

Engine Block StyleStock/OEM standard deck
