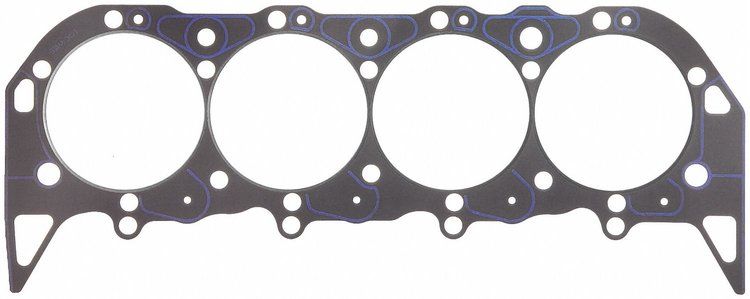

Loc Wire Ring Head Gasket Chevy 502 incl. Gen IV/V/VI
InfoVehicle Info Needed
FEL-PROPART NUMBER: 375-1012

Loc Wire Ring Head Gasket Chevy 502 incl. Gen IV/V/VI

$11699
ShippingShips on 09/08/2026
Lowest PriceLowest Price Guarantee

Big Block Chevy
    Loc Wire Ring Head Gasket
  • Chevy 502 incl. Gen IV/V/VI
  • Bore 4.640''
  • Compressed Thickness .039''
  • Compressed Volume 10.9cc

  • For severe duty, such as nitrous and turbos
  • Requires precision receiver groove machined in head
  • .510" diameter bolt holes; round bore
  • Will not fit some cylinder head valve pockets



    Pre-Flattened Steel Wire Ring Head Gaskets
    The strength of steel wire sealing with minimum brinelling of aluminum heads.

    Pre-Flattened Copper Wire Ring Head Gaskets
    Copper will not brinell aluminum heads, and these gaskets also offer superior heat dissipation from combustion hot spots.

    Loc Wire Ring Head Gaskets
    Loc Wire gaskets are engineered to provide the best sealing available for severe applications. They have oversized wire rings that lock into receiver grooves which must be machined into the cylinder heads. Precise machining is critical to the success of these gaskets.

    *Each gasket type is sold 1 per package

Part TypeHead Gasket
Product LineFel-Pro Wire Ring Cylinder Head Gaskets
BrandFEL-PRO
Package Height0.12
Package Width11.0
Package Length22.0
Weight0.59 PG
Part CategoryReplacement Parts
Lock WireYes
QuantitySold individually
Gasket MaterialStainless steel core laminate
Part FitmentDirect Fit
Bore (Mm)117.856
Compressed Thickness0.039 in (0.991 mm)
Compressed Volume (Cc)10.9
Bore4.64 in (117.856 mm)
Vendor Part Number1012
Package Qty1
Package TypeEA
