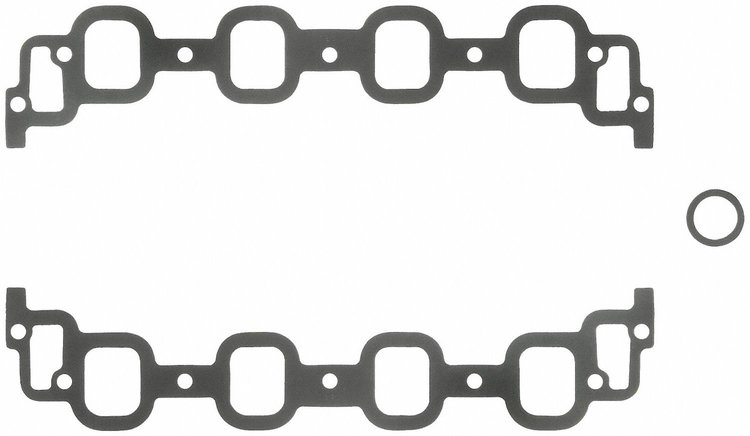

H/P Intake Gasket Small Block Chevy Splayed Valve Heads
InfoVehicle Info Needed
FEL-PROPART NUMBER: 375-1296

H/P Intake Gasket Small Block Chevy Splayed Valve Heads

$3899
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Chevy - Small Block
H/P Intake Gasket
  • Small Block Chevy Splayed Valve Heads
  • Gasket Material: Composite W/Coating
  • Port Size: 1.60" x 2.00"
  • Thickness: .060"

    Fel-Pro 375-1296 Features:

    Fel-Pro Performance Gaskets deliver reliable sealing under grueling racing conditions
    • Fel-Pro performance intake manifold gaskets have been tested with virtually all aftermarket cylinder head and intake manifold combinations.
    • Performance intake manifold gaskets designed without a metal core, to allow engine builders to trim the gasket for exact fit on modified ports.
    • Not intended for use in emission controlled vehicles.

      • Excellent Intake Sealing Performance

      Fel-Pro race gaskets utilize a synthetic rubber bead to provide worry-free sealing around intake and cooling ports. These gaskets trim easily to match modified port shapes. They are available in thicknesses ranging from .030 in. to .120 in., and most include blue cork/rubber end strips with adhesive backing.

    Part TypeIntake Manifold Gasket
    Product LineFel-Pro Intake Manifold Gaskets
    BrandFEL-PRO
    Package Height1.1
    Package Width5.8
    Package Length28.8
    Weight0.3 PG
    Part CategoryReplacement Parts
    Thickness0.06 in (1.5 mm)
    Port Height2 in (50.8 mm)
    QuantitySold as a set
    Port Width1.6 in (40.6 mm)
    Port StyleRectangular
    Gasket MaterialComposite
    Vendor Part Number1296
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
