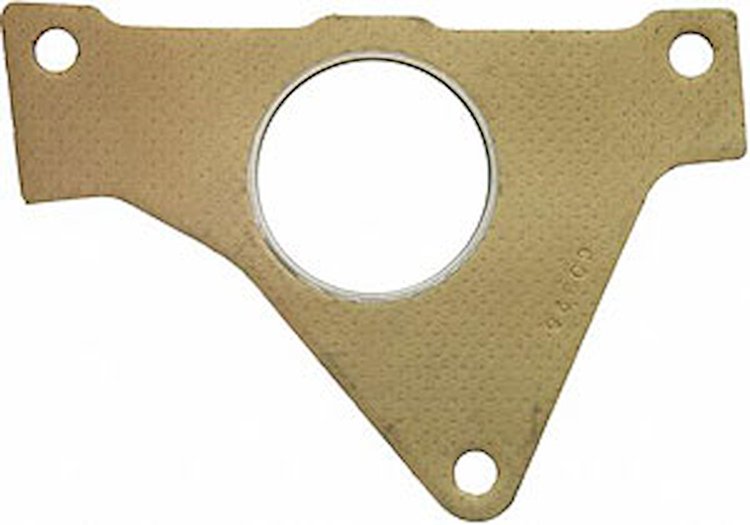

Fel-Pro 60996 is an exhaust pipe flange gasket for LT1-era Chevy Camaro and Pontiac Firebird 5.7L V8 applications. It helps restore a tight exhaust joint where heat cycles, age, or uneven sealing surfaces can cause leaks, using an application-specific shape and repair-focused construction for dependable fit and sealing performance.

Fel-Pro 60996 Technical Specifications:

• Round-port exhaust flange gasket with a 2.25 in. inside diameter for the specified 5.7L V8 exhaust connection.
• Composite and steel construction is suited for high-heat exhaust service while maintaining a compressible sealing surface.
• Approximate thickness is .0625 in., with referenced metric thickness from 1.6 mm to 2 mm.
• Engineered for the repair environment and validated for fit, form, and function against OE-style requirements.

Replace this gasket when servicing the exhaust flange connection, especially if soot marks, ticking noises, or exhaust odor point to a flange leak.

Fits 1995, 1996, and 1997 Chevy Camaro and Pontiac Firebird models equipped with the 5.7L V8 engine.
