Go EFI 2x4 625 HP Dual Quad Throttle Body System Master Kit with Hy-Fuel Single Pump Regulated In-Tank Retrofit Kit

Name: Go EFI 2x4 625 HP Dual Quad Throttle Body System Master Kit with Hy-Fuel Single Pump Regulated In-Tank Retrofit Kit
Brand: FITECH FUEL INJECTION
SKU: 546-34061
Price: 2018.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

625 HP Master Kit

Go EFI 2x4 Dual Quad Throttle Body System Master Kit

625 HP

Bright Tumble Finish

Includes Hy-Fuel Single Pump Regulated In-Tank Retrofit Kit

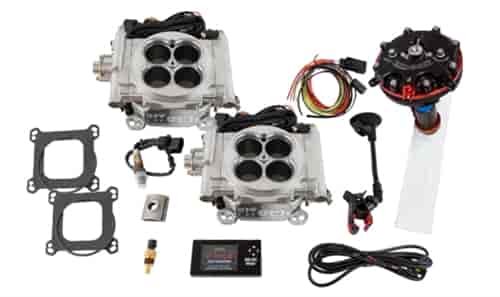

Includes:

(2) Die Cast Throttle Bodies
Handheld Controller
Windshield Mount
(8) Hi-Flow 625 HP injectors
Built-in pressure regulator
2.5 BAR Internal MAP Sensor
Throttle Position Sensor
Idle Air Control
Coolant Temp Sensor
Wide band O2 Sensor
O2 Bung Kit
-06AN Fuel Inlet Fitting
Gasket Kit
Hy-Fuel Pump Main Assembly
58 PSI Fuel Regulator
Extension Shaft
Hy-Fuel Outer Ring (Red)
Hy-Fuel Inner Ring (Black)
340 L/PH Fuel Pump
(16) #10-32×1″ Flat Head Machine Screws
(8) #10-32×1.75″ Flat Head Machine Screws
(8) #10-32×1.5″ Flat Head Machine Screws
(8) #10-32 Keps Nuts and #10 Flat Washers
EFI Grade 5/16″ Hose and (2) Hose Clamps
(3) Electrical Connectors, Nuts, Washers and Rubber Boots
OEM Style Filter
1/4″ Drill Bit
O-ring

Suitable For Up-To 625 HP

FiTech's Go EFI 2x4 625 HP Dual Quad Throttle Body Systems are suitable for normally aspirated engines producing up to 625 HP and fit the most popular manifolds including Edelbrock dual quads, without the use of adapters. One of the throttle bodies handles all the brains while the second holds four additional injectors plus the IAC for idle stability. Once installed, the system dials itself into perfect calibrations, based on your driving and weather conditions. FiTech has made it simple to calibrate your driving with these Go EFI 2x4 625 HP Dual Quad Throttle Body Systems.

Part TypeFuel Injection System

Product LineFiTech Go EFI 2x4 625 HP Dual Quad Throttle Body Systems

BrandFITECH FUEL INJECTION

Package Height11.0

Package Width18.0

Package Length24.0

Weight32.0 PG

Part CategoryPerformance Parts

Package Qty1

Package TypeEA
