Vehicle Info NeededFITECH FUEL INJECTIONPART NUMBER: 546-50005

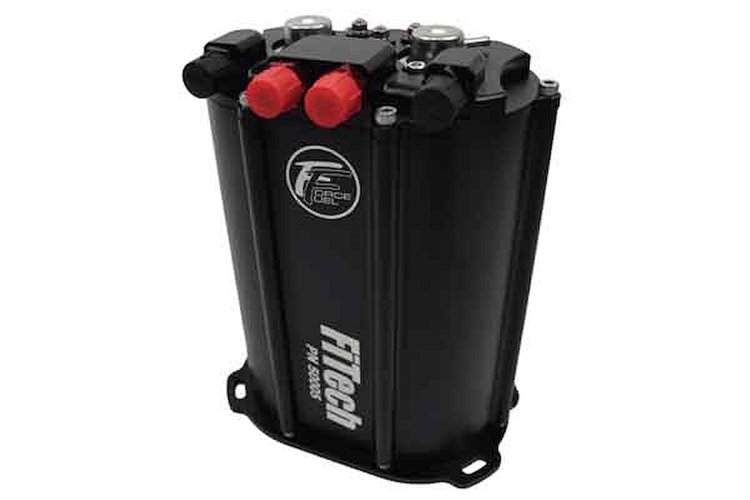

Dual Pump Force Fuel System
Color:
$54700
Ships on Sep 28, 2026
Lowest Price Guarantee340 LPH
Dual Pump Force Fuel System(2) 340 LPH Fuel Pumps Dual Internal Regulators Supports up to 1,600 HP Compatible with E-85, Alcohol or Methanol-Based Fuels Black Finish
Features:
- Uses (2) 340 LPH fuel pumps with internal regulators to maintain 58 PSI for a reliable fuel supply
- Capable of supporting the fuel demands of a 1,600 HP engine on gasoline
- Adds half-a-gallon of fuel capacity - no chance of cavitation
- The billet mounting bracket allows for a side or bottom mount
- Fitting sizes: -6 AN
- Electrical stud sizes: M5 x .800 mm
- Overall dimensions: 7 in. L x 4.625 in. W x 9 in. H
Easily Upgrade Your Fuel System to EFI
FitTech Force Fuel Systems make transitioning a fuel system to EFI a breeze. By simply connecting the Force Fuel to an internal OE electric or mechanical fuel pump, the unit is fed with a steady supply of high-pressure fuel without running an additional line from the fuel tank. The assembly mounts below the stock fuel pump to keep the pump submerged and prevent fuel starvation.
Part TypeElectric Fuel Pump
Product LineFiTech Force Fuel Systems
BrandFITECH FUEL INJECTION
Package Height7.9
Package Width11.0
Package Length15.6
Weight10.8 PG
Part CategoryPerformance Parts
Outlet Size-6 AN
Inlet Size-6 AN
ColorBlack
Regulator IncludedYes
Outlet Quantity2
QuantitySold individually
Inlet AttachmentMale Threads
Pump TypeDual
Fuel TypeGasoline/E85 Compatible
Mounting Bracket IncludedYes
Outlet AttachmentMale Threads
Inlet Quantity2
Part FitmentUniversal
Free Flow Rate340 lph
Package Qty1
Package TypeEA
