50006 Go Fuel Force Fuel Mini Surge Tank System
InfoVehicle Info Needed
FITECH FUEL INJECTIONPART NUMBER: 546-50006

50006 Go Fuel Force Fuel Mini Surge Tank System

$41500
9 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

AN Straight Max Flow Swivel Hose End [-6 AN Female to -6 AN Hose, Black]

JEGS

AN Straight Max Flow Swivel Hose End [-6 AN Female to -6 AN Hose, Black]

Part Number : 555-110001
$359$6.99
You Save$3.40
AN 45-Degree Max Flow Swivel Hose End [-6 AN Female to -6 AN Hose, Black]

JEGS

AN 45-Degree Max Flow Swivel Hose End [-6 AN Female to -6 AN Hose, Black]

Part Number : 555-110011
$749$16.99
You Save$9.50
AN 90-Degree Max Flow Swivel Hose End [-6 AN Female to -6 AN Hose, Black]

JEGS

AN 90-Degree Max Flow Swivel Hose End [-6 AN Female to -6 AN Hose, Black]

Part Number : 555-110021
$749$16.99
You Save$9.50
Red/Black 45° Max Flow Swivel Hose End -6AN

JEGS

Red/Black 45° Max Flow Swivel Hose End -6AN

Part Number : 555-111011
$1499$16.99
You Save$2.00

255 LPH
Go Fuel Force Fuel Mini Surge Tank System
  • 255 LPH Fuel Pump
  • Internal Regulator
  • 10-Micron Filter
  • Supports up to 600 HP
  • Compatible with Gasoline/E85 Fuels
  • Black Finish

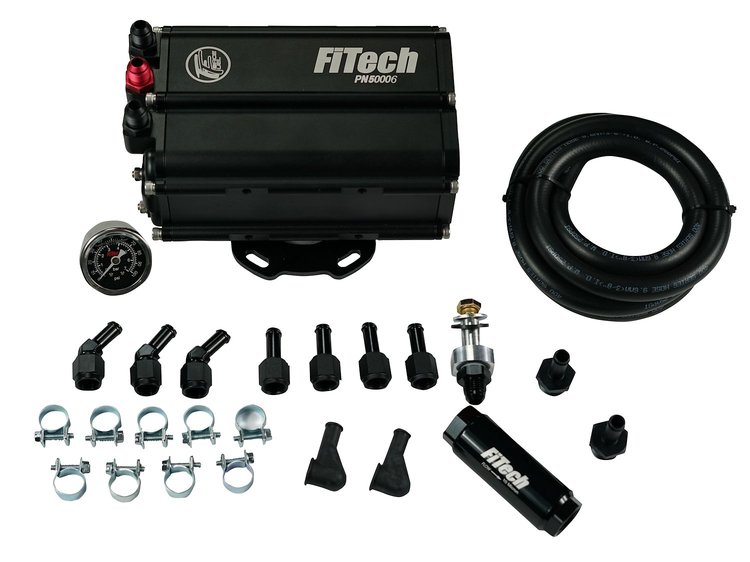

    Breakdown of Included Items

    50006 Features:

    • An internal OE electric or mechanical fuel pump feeds a steady supply of high-pressure fuel without running an additional line from the fuel tank.
    • Dimensions w/ gauge (standing upright): 4 in. L x 5 in. W x 9.250 in. H
    • Dimensions w/o gauge (standing upright): 4 in. L x 5 in. W x 7.625 in. H
    • Small size allows for installation in a smaller engine bay
    • Included mounting bracket has four different mounting locations
    • Includes fuel hose, AN fittings, return line fitting bung, and liquid-filled pressure gauge

    Note: LPH = Liters Per Hour

    • Easily Upgrade Your Fuel System to EFI

      FitTech Force Fuel Systems make transitioning a fuel system to EFI a breeze. By simply connecting the Force Fuel to an internal OE electric or mechanical fuel pump, the unit is fed with a steady supply of high-pressure fuel without running an additional line from the fuel tank. The assembly mounts below the stock fuel pump to keep the pump submerged and prevent fuel starvation.

    Part TypeFuel Surge Tank
    Product LineFiTech Force Fuel Systems
    BrandFITECH FUEL INJECTION
    Package Height7.9
    Package Width10.9
    Package Length15.8
    Weight8.5 PG
    Part CategoryPerformance Parts
    Fuel Pump IncludedYes
    Mounting Bracket IncludedYes
    Flow Rate255 lph (67 gal/hr)
    Universal Or Specific FitUniversal
    Maximum Pressure (Psi)58
    ColorBlack
    Regulator IncludedYes
    Fittings IncludedYes
    QuantitySold as a kit
    Part FitmentUniversal
    Maximum Horsepower600
    Vendor Part Number50006
    Package Qty1
    Package TypeEA
