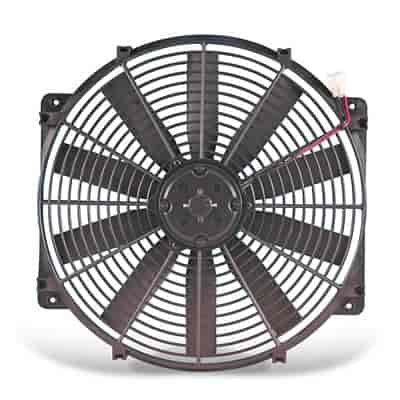

Pusher/Puller Straight Blade Fan 16" Fan Diameter
InfoVehicle Info Needed
FLEX-A-LITEPART NUMBER: 400-105387

Pusher/Puller Straight Blade Fan 16" Fan Diameter

$12499
4 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

30 Amp Relay For Electric Fan or Fuel Pump

JEGS

30 Amp Relay For Electric Fan or Fuel Pump

Part Number : 555-10557
$499$5.99
You Save$1.00
Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

JEGS

Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

Part Number : 555-10559
$3199$34.49
You Save$2.50
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

Part Number : 555-10560
$4899$53.99
You Save$5.00
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [200 degrees on 185 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [200 degrees on 185 degrees off]

Part Number : 555-10561
$4250$46.99
You Save$4.49

Pusher/Puller Straight Blade Fans
    Pusher/Puller Straight Blade Fan
  • 16'' Fan Diameter

  • Slim Design
  • Fully Reversible
  • Straight Blade
  • Economical
  • Frees Up Wasted Horsepower
  • Increases Gas Mileage
  • Provides Additional Cooling
  • Greater Control/Fan Operation

Reversible

Used as a primary fan, these economical fans free up wasted horsepower and increase gas mileage by replacing the stock fan (where applicable). Used as an auxiliary fan (pusher), this unit will provide additional cooling in an engine prone to overheating. Also allows greater control of fan operation; e.g. water crossings, long idles, etc.

Features:

  • Slim design for tight clearance applications.
  • Fully reversible; can be used as pusher or puller.
  • Installation instructions with wiring diagrams in English, French & Spanish.
Show More
Part Number

400-106

400-108

400-112

400-114

400-116

Mounting Surface Required

7-1/4'' x 7'' x 2-3/8''

11-7/8'' x 10-3/4'' x 2-3/4''

13-1/4'' x 12-1/2'' x 2-7/8''

14-3/4'' x 14'' x 3-1/4''

16-1/2'' x 16'' x 3-1/4''

Fan Diameter

6-1/2''

10''

12''

14''

16''

Fan RPM @ 13.5VDC

2500

2460

2150

2220

2000

Number of Blades/Fan Blace Angle

10/21°

10/21°

10/21°

10/21°

10/21°

Airflow-Cu. Ft./Min. at 0° Static Pressure

340

800

1050

1350

2000

Amp Draw

4

6.5

9

9.5

11

Mounting System

Thru Core

Thru Core

Thru Core

Thru Core

Thru Core

Part TypeElectric Fan
Product LineFlex-A-Lite Reversible Pusher/Puller Straight Blade Fans
BrandFLEX-A-LITE
Package Height3.8
Package Width16.6
Package Length16.9
Weight5.85 PG
Part CategoryPerformance Parts
Maximum Fan Rpm2,000 rpm
Blade MaterialPlastic
Fan QuantitySingle
Number Of Blades10 blades
Shroud MaterialGlass-reinforced nylon
Air Conditioning Relay IncludedNo
QuantitySold individually
Mounting Hardware IncludedYes
Thickness3.25 in (82.6 mm)
Fan Diameter16 in (406.4 mm)
Blade ColorBlack
TypeSingle
Amp Draw11.00 amps
Mounting Brackets IncludedYes
Product Height16.5 in (419.1 mm)
Part FitmentUniversal
Maximum Fan Cfm2,000 cfm
Product Width16 in (406.4 mm)
Shroud ColorBlack
Diameter16 in (406.4 mm)
Vendor Part Number105387
Package Qty1
Package TypeEA
