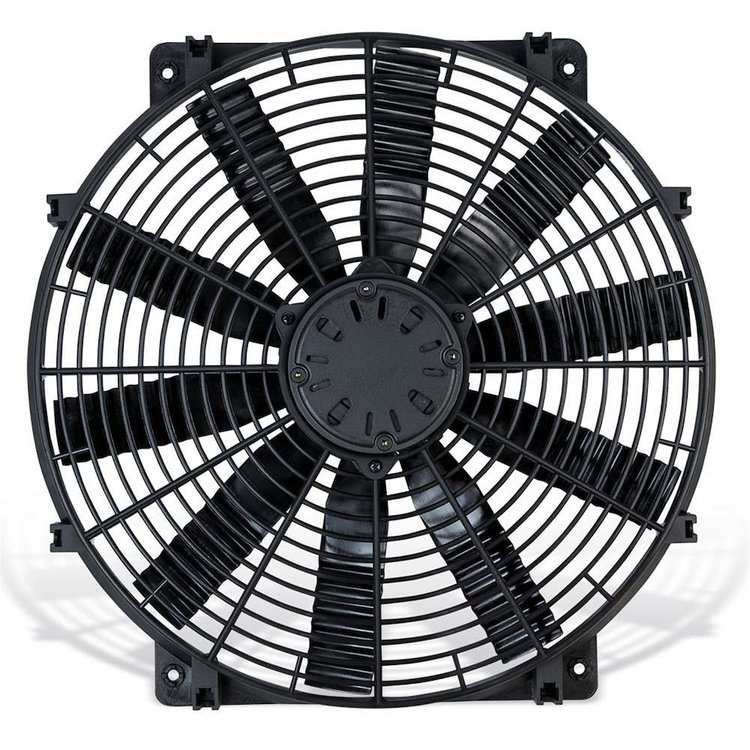

105390 Flex-Wave LoBoy Puller Electric Fan [16 in. Blade Diameter]
InfoVehicle Info Needed
FLEX-A-LITEPART NUMBER: 400-105390

105390 Flex-Wave LoBoy Puller Electric Fan [16 in. Blade Diameter]

$18299
1 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

JEGS

Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

Part Number : 555-10559
$3199$34.49
You Save$2.50
Push-In Adjustable Fan Controller

FLEX-A-LITE

Push-In Adjustable Fan Controller

Part Number : 400-121280
$4999
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

Part Number : 555-10560
$4899$53.99
You Save$5.00
Thread-In Adjustable Fan Controller

FLEX-A-LITE

Thread-In Adjustable Fan Controller

Part Number : 400-121281
$5792

Flex-Wave LoBoy Puller Fans
Flex-Wave LoBoy Puller Electric Fan
  • Blade Diameter: 16 in.
  • Blade Quantity: 10
  • Air Flow: 3,000 CFM
  • Amp Draw: 18.5
  • Dimensions: 16 x 16 1/2 x 3 3/8 in.

    Flex-A-Lite 105390 Flex-Wave LoBoy Puller Electric Fan Features:

    • Leading edge adopts a sin-wave design, initiating efficient air movement
    • Wave surface on blades forms channels, optimizing airflow and reducing energy losses
    • Wave surface configuration at the blade tip creates a winglet, enhancing efficiency by minimizing air vortices
    • Trailing edge variations are incorporated to reduce wind noise, ensuring a quieter operation

    Flex-Wave LoBoy Puller Electric Fan Notes:

    Mounting Holes

    • 1/4 in. Diameter
    • 14 1/2 in. x 9 3/4 in. Mounting Pattern

    FAQ

    How many CFM does a flex fan pull?

    The Flex-A-Lite Flex-Wave electric fans, such as the Flex A Lite 238 model, are known for their high-performance airflow. The CFM (Cubic Feet per Minute) rating of a flex fan varies by model, but the Flex A Lite 238, for example, pulls an impressive amount of air to effectively cool your engine and radiator, ensuring optimal performance in high-demand situations.

    What is the difference between a push fan and a puller fan?

    A push fan and a puller fan differ in their mounting orientation. A push fan is mounted on the front side of the radiator, pushing air through it. In contrast, a puller fan is mounted on the engine side, pulling air through the radiator. The Flex-A-Lite 16 inch electric fan, like the flx-105390, can be configured as either a push or pull fan, providing versatility to suit your specific cooling needs.

    Does a puller fan need a shroud?

    While a puller fan doesn't always require a shroud, it is highly recommended for optimal cooling efficiency. A shroud helps direct airflow through the entire radiator, maximizing the cooling effect. When using the Flex A Lite 16 inch electric fan or the Flex-A-Lite Flex-Wave electric fans 238 as a puller, adding a shroud enhances performance and ensures consistent cooling in various driving conditions.

    How do you install a Flex a Lite Fan Controller?

    Installing a Flex-A-Lite Fan Controller, especially for models like the flx-105390, is a straightforward process. Begin by locating a suitable location for the controller, ensuring it's away from excessive heat. Follow the provided instructions to connect the wiring, temperature probe, and power source. The Flex-A-Lite Fan Controller allows you to customize fan operation based on coolant temperature, providing efficient and adjustable cooling for your high-performance vehicle.


    • Increased Fan Efficiency Using Less Energy

      Flex-A-Lite has pushed electric fan technology further by using advanced engineering to develop the Flex-Wave. Flex-A-Lite's patent-pending Flex-Wave fan blade features improved efficiency and greater airflow through a sine-wave design. Sine-wave blades feature serrated knife-like leading edges that cut through the air first, causing improved efficiency in air startup movement. The winglet and wave surface design further increases efficiency by creating air channels and reducing air vortices, resulting in distinct airflow improvements while using less energy. Flex-Wave fans also use unique variations in fan blades trailing edge for a reduction in wind noise, resulting in a fan that's not only quieter but can flow more air than other similar size fan packages.

    Part TypeElectric Fan
    Product LineFlex-A-Lite Flex-Wave Electric Fans
    BrandFLEX-A-LITE
    Package Height4.4
    Package Width16.6
    Package Length17.0
    Weight6.15 PG
    Part CategoryPerformance Parts
    Amp Draw18.50 amps
    Fan Blade Diameter16 in (406.4 mm)
    Fan Blade MaterialPlastic
    Part FitmentUniversal
    Fan Blade FinishBlack
    Vendor Part Number105390
    Package Qty1
    Package TypeEA
