Vehicle Info NeededFLOWMASTERPART NUMBER: 389-717864

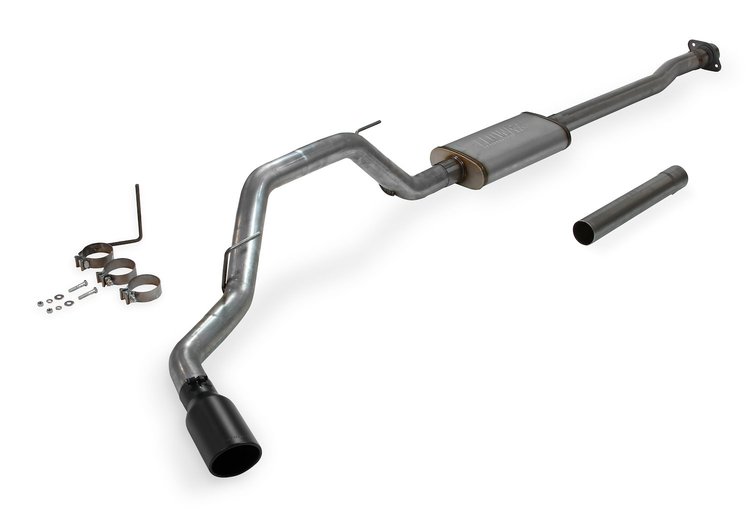

FlowFX Cat-Back Exhaust System 2009-2014 Ford F150 4.6L/5.0L/5.4L V8 and 3.5L EcoBoost
$62395
More than 10 available
Ships on Sep 14, 2026
Lowest Price GuaranteeFord Trucks
FlowFX Cat-Back Exhaust System2009-2014 Ford F150 4.6L/5.0L/5.4L V8 and 3.5L EcoBoost 3 in. Tubing 4.5 in. Black Ceramic Coated SS Tips Single Side Exit Flow FX Series Muffler 409S Stainless Steel
FLOWMASTER MUFFLERS 717864 Features:

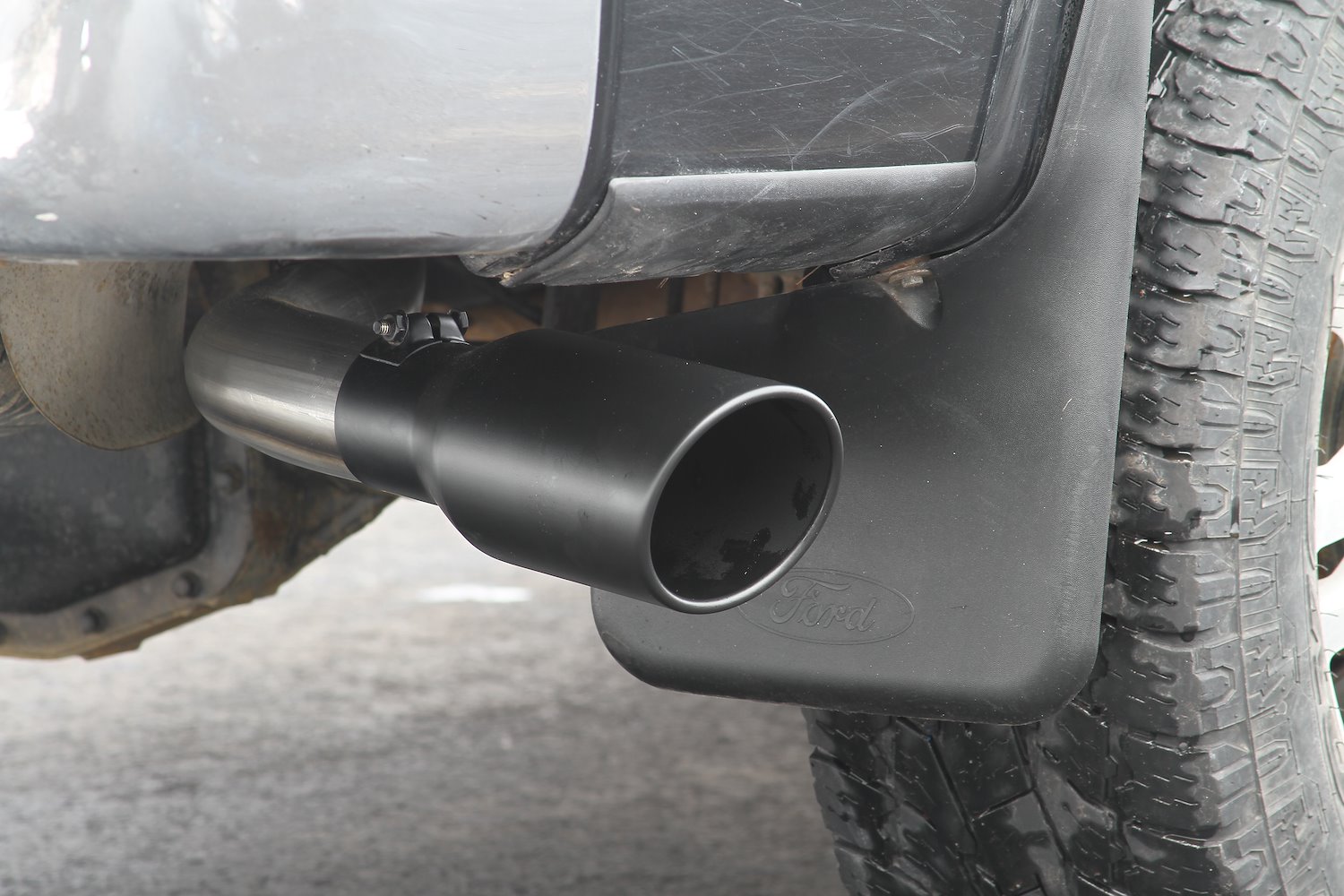

Introducing the FlowFX Cat-back exhaust system for the 2009-2014 Ford F-150 with 3.5L Ecoboost, 4.6L, 5.0L and 5.4L engines. This stainless steel performance single exhaust system bolts up to the factory catalytic converter flange with a large 3-inch mandrel-bent tubing flowing into the "straight-through" FlowFX performance muffler. The FlowFX muffler creates a deep powerful sound outside the vehicle with a moderate tone inside the cab. The mandrel-bent tailpipe exits behind the passenger side rear tire and is finished off with a large 4.50-inch black ceramic coated exhaust tip embossed with the Flowmaster name. The system utilizes the factory hanger locations and connections and includes all necessary parts, hardware and detailed instructions for an easy at home installation. Note: Fits 2/4 wheel drive and all wheelbases.- Large 4.50-Inch Black Ceramic Coated Stainless Steel Tips
- Deep Powerful Tone Inside and Outside the Vehicle
- FlowFX "Straight-through" Performance Muffler
- Mandrel-bent Stainless Steel Tubing
- Uses the Factory Hanger Locations
- Includes All Necessary Hardware
- Quick and Easy Installation
- Lifetime Limited Warranty
Aggressive Exhaust Tone
Bright 409 stainless steel Flowmaster FlowFX Exhaust Systems have straight-through FlowFX mufflers with a large core for a deep, moderate-to-aggressive exterior and interior sound. Each kit is designed and dyno-tuned for maximum performance, so you know you are getting the most out of your exhaust system.
Part TypeExhaust System
Product LineFlowmaster FlowFX Exhaust Systems
BrandFLOWMASTER
Package Height11.25
Package Width16.25
Package Length58.5
Weight43.5 PG
Muffler Inlet Inside Diameter3 in.
Hangers IncludedYes
Main Piping Diameter3 in.
Tail Pipe QuantitySingle
Inlet TypeFlanged
Exhaust Tip Material304 Stainless Steel
Catalytic Converter Quantity0
Muffler Body Length18 in.
Sound LevelModerate
Muffler Body Material409 Stainless Steel
Exhaust Tip CutAngled
Gasket Or Seal IncludedNo
Exhaust Tip IntercooledNo
Pipe ColorSilver
Muffler Quantity1
Muffler Inlet Outside Diameter3.13 in.
Muffler Flanged OutletNo
Exhaust Tip ResonatedNo
Catalytic Converter IncludedNo
Heat Shield IncludedNo
Part CategoryPerformance Parts
Exhaust Tip WallSingle Wall
Exhaust Tip Quantity1
Exhaust Tip FinishBlack Ceramic Coating
Exhaust Tip EdgeRolled Edge Angle Cut
Valve IncludedNo
Muffler TypeAbsorption
Pipe Material409 Stainless Steel
Muffler Body Width9 in.
Tail Pipe Tapered OutletNo
Muffler Body ShapeOval
Mounting Bracket IncludedNo
Muffler Outlet Quantity1
Muffler FinishNatural
Mount TypeUses Factory Hangers
Clamps IncludedYes
FinishNatural
Exit StyleSingle Out Side
Muffler Body Height4 in.
Clamping TypeFlat Band
Muffler Flanged InletNo
Spring Bolt Kit IncludedNo
Muffler SeriesFlow FX
Muffler IncludedYes
Exhaust Tip ConnectionClamp-On
Tail Pipe Outlet Outside Diameter3 in.
Valve TypeNot Applicable
Exhaust Tip Diameter4.50 in.
Part FitmentDirect Fit
Package Qty1
Package TypeEA
