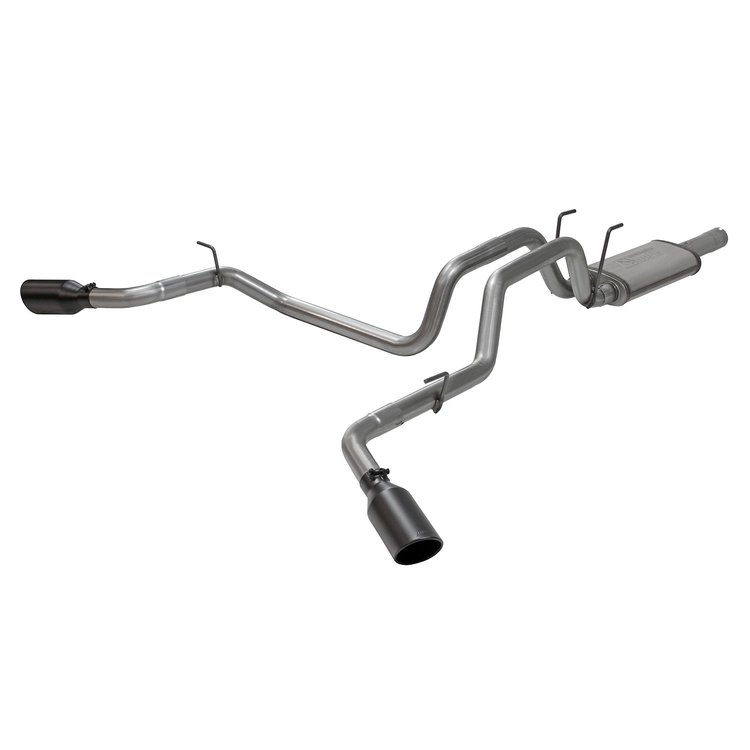

717995 Flow FX Cat-Back Exhaust System; 2006-2008 Dodge Ram 1500 5.7-Liter Cat-Back, Dual Side Exit, Stainless Steel
InfoVehicle Info Needed
FLOWMASTERPART NUMBER: 389-717995

717995 Flow FX Cat-Back Exhaust System; 2006-2008 Dodge Ram 1500 5.7-Liter Cat-Back, Dual Side Exit, Stainless Steel

$84995
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Flow FX Cat-Back Exhaust System
  • 2006-2008 Dodge Ram 1500 5.7-Liter Cat-Back, Dual Side Exit, Stainless Steel
  • Sold Individually

    FLOWMASTER MUFFLERS 717995 Features:

    This Flowmaster® FlowFX® cat-back exhaust system for the 2006-2008 Dodge Ram 1500 trucks with the 5.7-liter Hemi engine is manufactured using durable 409 stainless steel throughout and features 3.00 to dual 2.50-inch mandrel bent pipes for better exhaust gas flow, and a FlowFX "straight-through" muffler is used for an aggressive to moderate sound level and maximum performance. Maximum increases on the dyno revealed +8 hp and +11 lb-ft at the rear wheels. This system exits out both sides, behind the rear wheels with 4.50-inch black ceramic tips for added style and a custom look. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. Backed by Flowmaster's Lifetime Limited Warranty.
    • Max increases of up to 8 hp and 11 lb-ft over the stock exhaust at the rear wheels
    • 3.00 to dual 2.50-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability
    • 4.50-inch black ceramic coated tips add a custom look to the truck

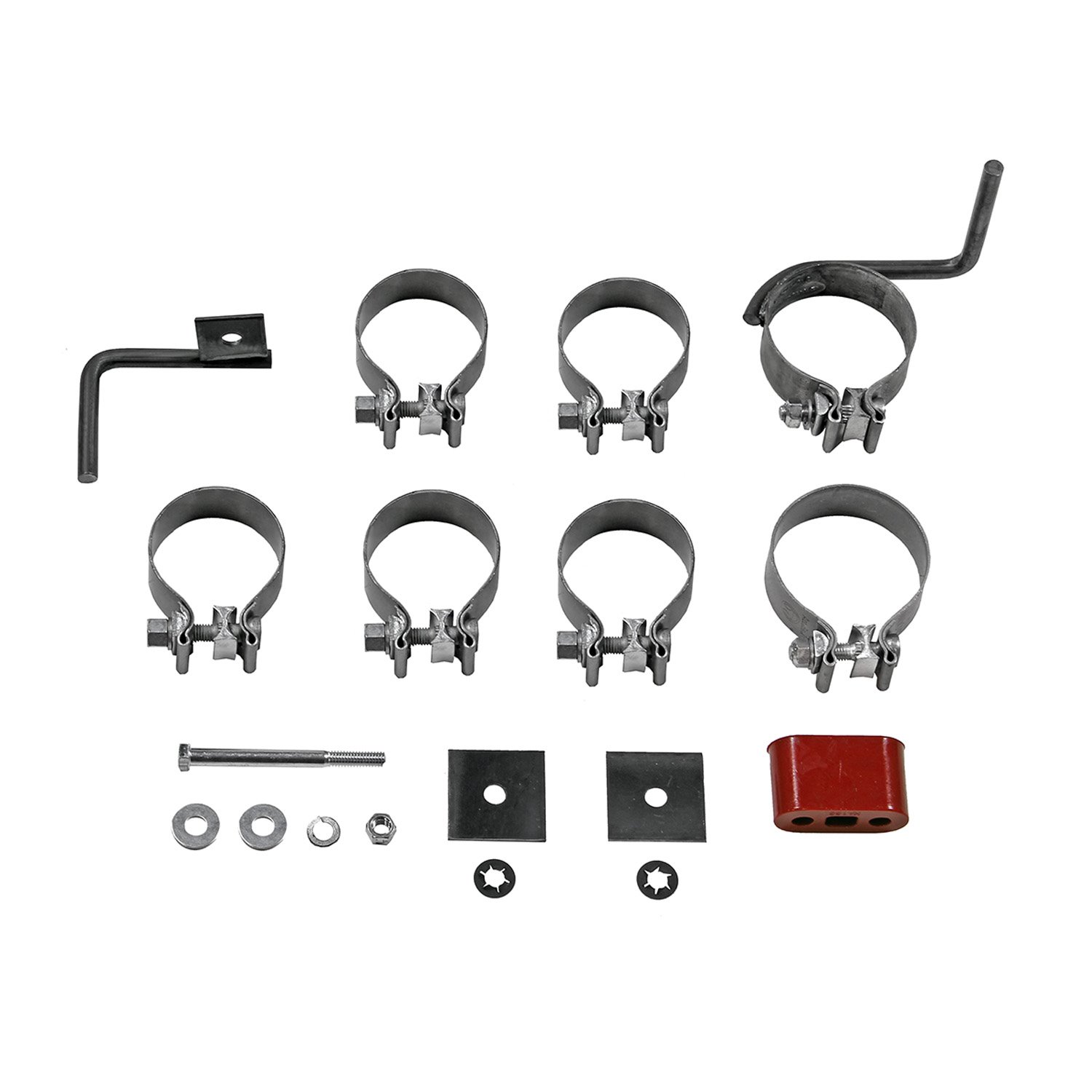

    • Includes complete hardware and factory styled hangers in the stock locations for an easy installation
    • FlowFX “straight through” performance muffler delivers a deep, aggressive to moderate performance tone and improves exhaust flow
  • Part TypeExhaust System
    BrandFLOWMASTER
    Package Height15.0
    Package Width17.5
    Package Length52.5
    Weight54.7 PG
    Muffler Inlet Inside Diameter3 in.
    Hangers IncludedYes
    Main Piping Diameter2.50 in.
    Tail Pipe QuantityDual
    Inlet TypeClamp-On
    Exhaust Tip Material304 Stainless Steel
    Catalytic Converter Quantity0
    Muffler Body Length18 in.
    Sound LevelAggressive / Moderate
    Muffler Body Material409 Stainless Steel
    Exhaust Tip CutAngled
    Gasket Or Seal IncludedNo
    Exhaust Tip IntercooledNo
    Pipe ColorSilver
    Muffler Quantity1
    Muffler Inlet Outside Diameter3.13 in.
    Muffler Flanged OutletNo
    Exhaust Tip ResonatedNo
    Muffler Outlet LocationDual
    Catalytic Converter IncludedNo
    Part CategoryPerformance Parts
    Exhaust Tip WallSingle Wall
    Exhaust Tip Quantity2
    Muffler Inlet LocationCenter
    Exhaust Tip FinishBlack Ceramic Coating
    Exhaust Tip EdgeRolled Edge
    Valve IncludedNo
    Muffler TypeAbsorption
    Pipe Material409 Stainless Steel
    Muffler Body Width9 in.
    Tail Pipe Tapered OutletNo
    Muffler Body ShapeOval
    Mounting Bracket IncludedYes
    Muffler Outlet Quantity2
    Muffler FinishNatural
    Mount TypeUses Factory Hangers
    Clamps IncludedYes
    FinishNatural
    Exit StyleDual Out Side
    Muffler Body Height4 in.
    Clamping TypeFlat Band
    Muffler Flanged InletNo
    Spring Bolt Kit IncludedNo
    Muffler SeriesFlow FX
    Muffler IncludedYes
    Exhaust Tip ConnectionClamp-On
    Tail Pipe Outlet Outside Diameter2.50 in.
    Valve TypeNot Applicable
    Exhaust Tip Diameter4.50 in.
    Part FitmentDirect Fit
    Package Qty1
    Package TypeEA
