Vehicle Info NeededFLOWMASTERPART NUMBER: 389-717997

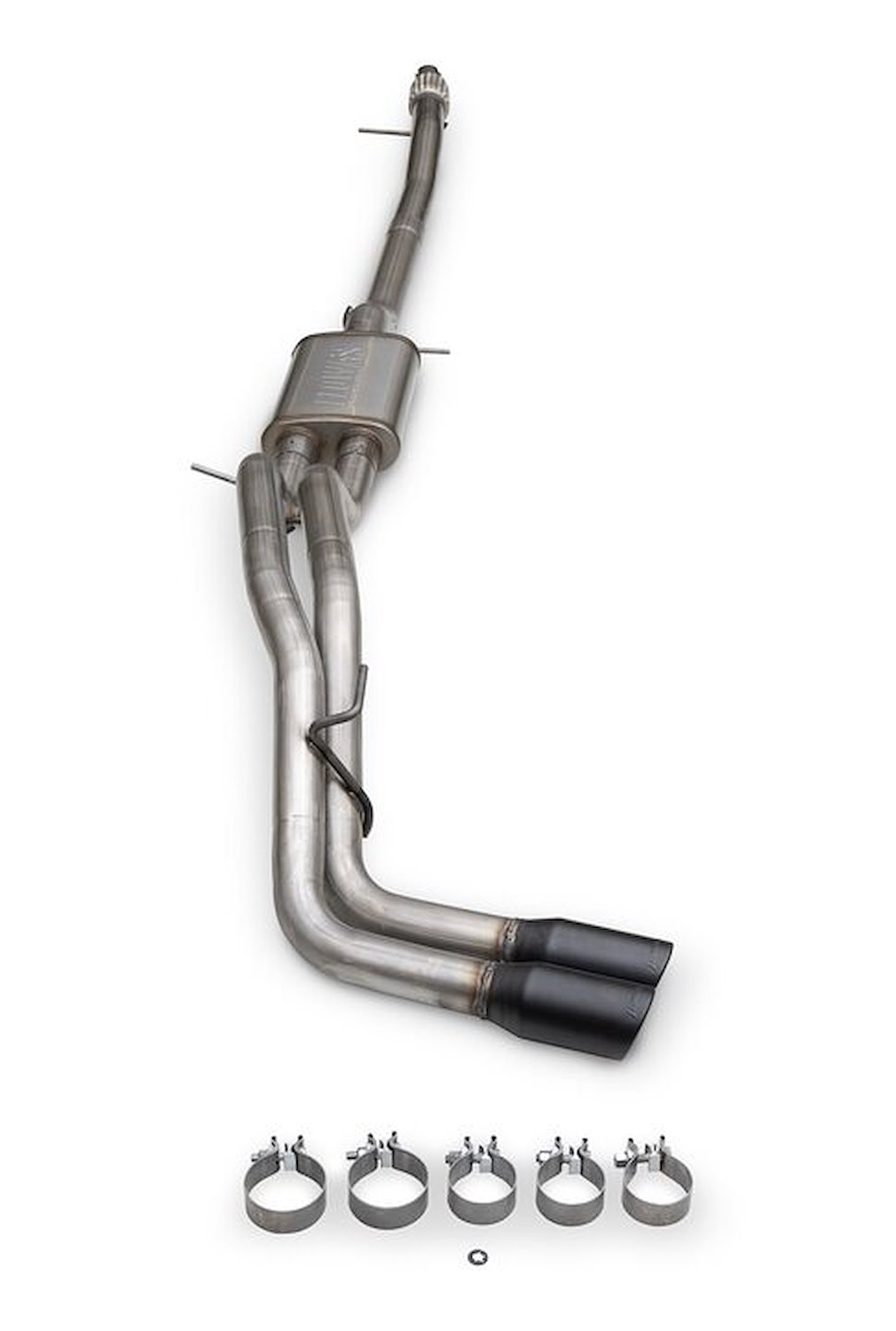

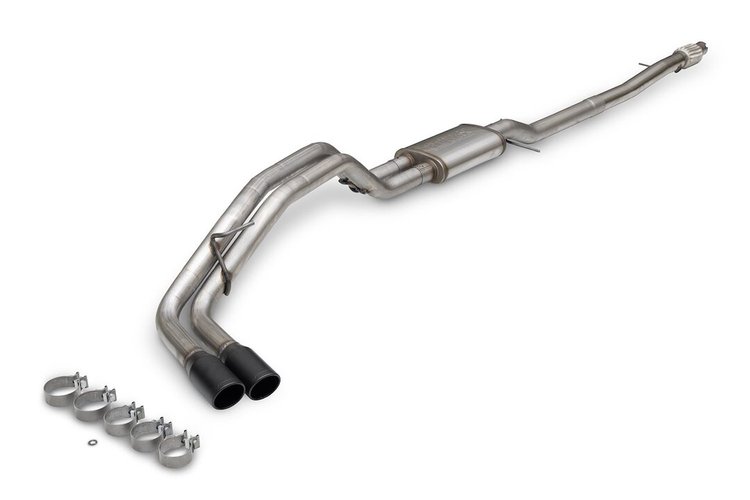

717997 FlowFX Cat-Back Exhaust System Fits Select Ford Ranger 2.3L
$79995
5 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeFord
FlowFX Cat-Back Exhaust SystemFord Ranger 2.3L Dual Outlet Cat-Back System FlowFX Series Muffler 409 Stainless Steel
Flowmaster 717997 FlowFX Cat-Back Exhaust System Features:
- Aggressive / Moderate Sound Level
- Mandrel bent 3 in. to dual 2.5 in. 16 gauge 409 stainless steel tubing
- 3.5 in. dual black tips provided a custom look
- Torque: 12 ft.-lbs.
- Horsepower: 8 HP
- Factory hanger mounting
- Install hardware included
Part TypeExhaust System
BrandFLOWMASTER
Package Height15.25
Package Width16.25
Package Length59.75
Weight58.0 PG
Muffler Inlet Inside Diameter3 in.
Hangers IncludedYes
Main Piping Diameter2.50 in.
Tail Pipe QuantityDual
Inlet TypeClamp-On
Inlet Size (In.)2.5
Tip CutAngle
Exhaust Tip Material304 Stainless Steel
Oxygen Sensor PortNo
Catalytic Converter Quantity0
Exit LocationDual Split Side
Inlet Quantity1
Muffler Body Length14 in.
Sound LevelAggressive / Moderate
Muffler Body Material409 Stainless Steel
UniversalNo
Exhaust Tip CutAngled
Gasket Or Seal IncludedNo
Exhaust Tip IntercooledNo
Pipe ColorSilver
California Air Board ApprovedYes
System FinishNatural
Muffler Quantity1
Muffler Inlet Outside Diameter3 in.
Exit QuantityDual
Exhaust Pipe MaterialStainless Steel
Muffler Flanged OutletNo
Tip Quantity2
Exhaust Tip ResonatedNo
Muffler Outlet LocationDual
Exhaust TypeCat-Back
Catalytic Converter IncludedNo
Part CategoryPerformance Parts
Hardware IncludedYes
Exhaust Tip WallSingle Wall
Exhaust Tip Quantity2
Clamp TypeC-Clamp
Muffler Inlet LocationCenter
Exhaust Tip FinishBlack Ceramic Coating
Exhaust Tip EdgeRolled Edge
Valve IncludedNo
Muffler TypeAbsorption
Pipe Material409 Stainless Steel
Muffler Body Width9 in.
Tail Pipe Tapered OutletNo
Exit PositionDual Side Rear
Muffler Body ShapeOval
Mounting Bracket IncludedNo
Muffler Outlet Quantity2
Muffler FinishNatural
Mount TypeUses Factory Hangers
Clamps IncludedYes
Muffler StyleAbsorption
Horse Power Increase8 HP
FinishNatural
Exit StyleDual Out Same Side
Muffler Body Height4 in.
Tip IncludedYes
Clamping TypeFlat Band
Muffler Flanged InletNo
Mandrel-BentYes
Spring Bolt Kit IncludedNo
Muffler SeriesFlow FX
Material304 Stainless Steel
Muffler IncludedYes
Exhaust Tip ConnectionClamp-On
System StyleCat-back
Tail Pipe Outlet Outside Diameter2.50 in.
Clamp Count5
System Material409 Stainless Steel
Valve TypeNot Applicable
Tip ShapeRound
Exhaust Tip Diameter3.50 in.
Part FitmentDirect Fit
Vendor Part Number717997
Package Qty1
Package TypeEA
