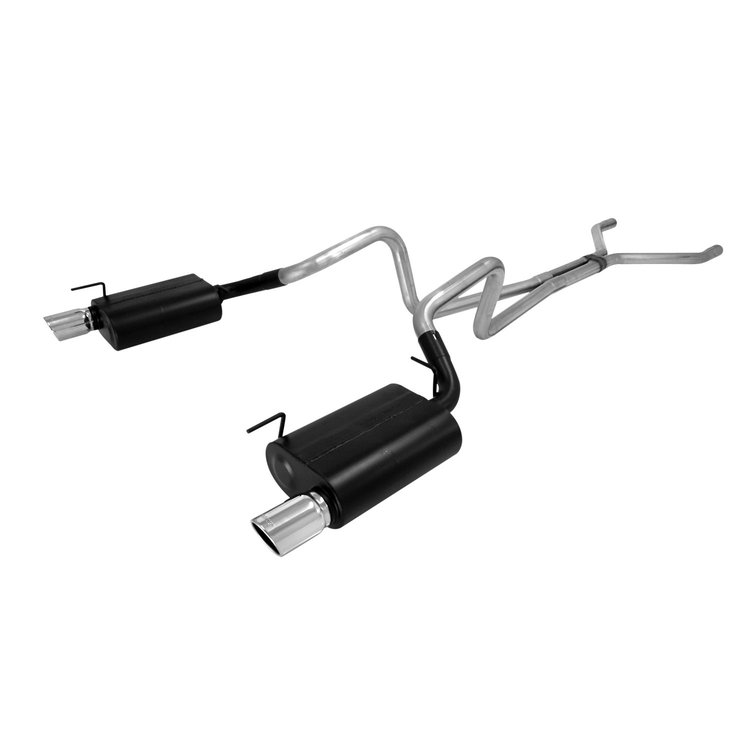

Force II Cat-Back Exhaust System 2005-2009 Ford Mustang 4.0L V6
InfoVehicle Info Needed
FLOWMASTERPART NUMBER: 389-817510

Force II Cat-Back Exhaust System 2005-2009 Ford Mustang 4.0L V6

$1,06595
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Ford
Force II Cat-Back Exhaust System
  • 2005-2009 Ford Mustang 4.0L V6
  • 2.25" Tubing
  • 3.5" Polished SS Tips
  • Dual Rear Exit
  • 60 Series Delta Flow Muffler
  • 409S Stainless Steel

    Flowmaster 817510 Features:

    This Flowmaster Force II system features true dual 2.25-inch mandrel-bent stainless steel tubing flowing into our exclusive Scavenger Series X-pipe for maximum power and a deep unique tone. The tubing then flows into a specially designed pair of 60 Series™ performance mufflers and delivers a moderate exterior tone, with a mild interior tone. The mufflers are finished off with a large pair of 3.00-inch polished stainless steel tips and the system comes with a template to trim the lower valance for that true dual exhaust look and sound. Like all Flowmaster systems, the benefits include improved throttle response, power and mileage. Designed for an easy fit, these systems include all necessary parts and hardware for easy installation and is covered by our Lifetime Limited Warranty. Note: Requires a cut-out to be made in the rear bumper valance to accommodate the left side exhaust tip (template included).

    • Includes Hangers and Hardware for an Easy Installation
    • Specially Designed 60 Series Performance Mufflers
    • Connects After the Factory Catalytic Converters
    • Includes our Exclusive Scavenger Series X-pipe
    • Mandrel-bent 16 Gauge Stainless Steel Tubing
    • Mild to Moderate Exterior Exhaust Tone
    • Uses the Factory Hanger Locations
    • True Dual Exhaust System
  • Part TypeExhaust System
    BrandFLOWMASTER
    Package Height12.0
    Package Width25.0
    Package Length52.0
    Weight35.8 PG
    Tailpipe Diameter (In.)2.25
    Muffler Inlet Inside Diameter2.25 in.
    Hangers IncludedYes
    Main Piping Diameter2.25 in.
    Tail Pipe QuantityDual
    Inlet TypeClamp-On
    Tip CutSlant
    Exhaust Tip Material304 Stainless Steel
    Catalytic Converter Quantity0
    Exit LocationSplit Rear
    Inlet QuantityTwo
    Muffler Body Length13.50 in.
    Sound LevelMild
    Muffler MaterialStainless steel
    Muffler Body Material409 Stainless Steel
    Exhaust Tip CutAngled
    Gasket Or Seal IncludedNo
    Exhaust Tip IntercooledNo
    Pipe ColorSilver
    System FinishNatural
    Muffler Quantity2
    Muffler Inlet Outside Diameter2.63 in.
    Exit QuantityTwo
    Tip MaterialStainless steel
    Muffler Flanged OutletNo
    Tip QuantitySingle
    Exhaust Tip ResonatedNo
    Exhaust TypeDual
    Catalytic Converter IncludedNo
    Heat Shield IncludedNo
    Part CategoryPerformance Parts
    Hardware IncludedYes
    Exhaust Tip WallSingle Wall
    Exhaust Tip Quantity2
    Exhaust Tip FinishPolished
    Exhaust Tip EdgeRolled Edge Angle Cut
    Valve IncludedNo
    Muffler TypeChambered
    Pipe Material409 Stainless Steel
    Muffler Body Width10 in.
    Tail Pipe Tapered OutletNo
    Muffler Body ShapeOval
    Mounting Bracket IncludedYes
    Muffler Outlet Quantity1
    Muffler FinishBlack High-Temperature Paint Finish
    Inlet Diameter2.25 in.
    Clamps IncludedYes
    Muffler StyleChambered
    Tip Outlet Size3.5 in (88.9 mm)
    FinishNatural
    Exit StyleDual Out Rear
    Muffler Body Height5 in.
    Tip IncludedYes
    Clamping TypeFlat Band
    Muffler Flanged InletNo
    Spring Bolt Kit IncludedNo
    Muffler Series60 Series Delta Flow
    QuantitySold as a kit
    Muffler IncludedYes
    Exhaust Tip ConnectionWelded
    System StyleCat Back
    Tail Pipe Outlet Outside Diameter2.25 in.
    Muffler ConfigurationSingle inlet/Single outlet
    System MaterialStainless steel
    Valve TypeNot Applicable
    Tip Edge StyleRolled edge
    Tip ShapeRound
    Intermediate Pipe Diameter2.25 in (57.15 mm)
    Exhaust Tip Diameter3.50 in.
    Part FitmentDirect Fit
    Vendor Part Number817510
    Package Qty1
    Package TypeEA
