Vehicle Info NeededFLOWMASTERPART NUMBER: 389-817513

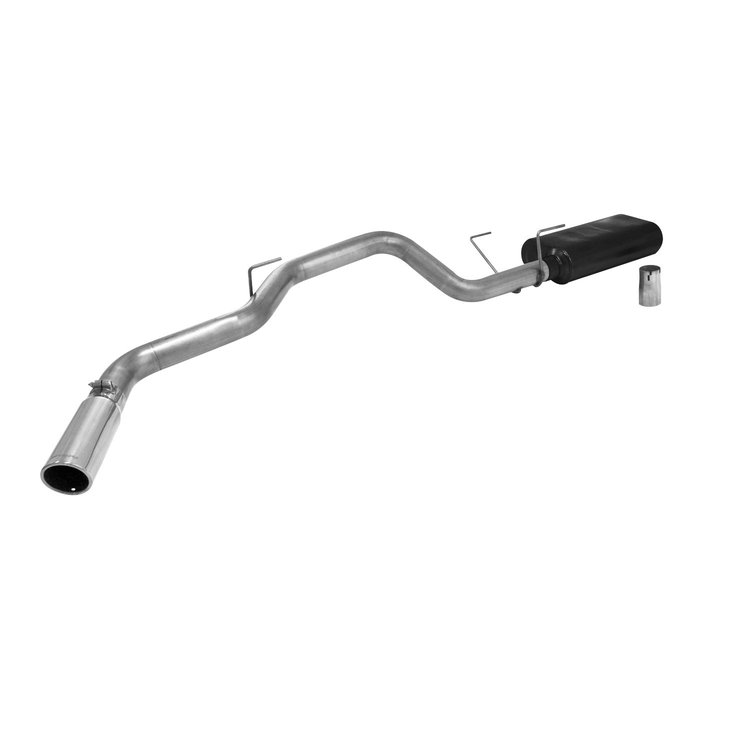

817513 American Thunder Cat-Back Exhaust System 2004-2005 Dodge Ram 1500 5.7L Hemi
$94995
Ships on Sep 11, 2026
Lowest Price GuaranteeDodge
American Thunder Cat-Back Exhaust System2004-2005 Dodge Ram 1500 5.7L Hemi 3" Tubing 3" Polished SS Tips Single Side Exit 50 Series HD Muffler 409S Stainless Steel
FLOWMASTER MUFFLERS 817513 Features:
This Flowmaster® American Thunder® Cat-back System is for 2004-2005 Dodge Ram 1500 trucks with 5.7L Hemi engine and all wheelbases. Manufactured using durable 409S stainless steel, the kit features a 2.75-inch to 3.00-inch adapter pipe which flows into the 50 Series HD™ single in/out muffler and into a single 3.00-inch mandrel-bent stainless steel tailpipe. The 3.00-inch tailpipe exits on the passenger side of the vehicle behind the rear tire and is finished off with a 3.50-inch polished stainless steel Flowmaster tip. As an American Thunder system, it provides improved horsepower, mileage and torque along with a deep, moderate sound level on the inside and outside of the vehicle. Instructions and all the necessary hardware are included with the kit for an easy bolt-on installation. Covered by our Lifetime Limited Warranty.- Includes Hangers and Hardware for an Easy Installation
- Mandrel-bent 16 Gauge Stainless Steel Tubing
- Connects After Factory Catalytic Converter
- Uses the Factory Hanger Locations
- Moderate Exterior Exhaust Tone
- Lifetime Limited Warranty
- Easy Installation
The Classic Sound of Flowmaster
Flowmaster American Thunder Exhaust Systems for Truck/SUVs are ideal for the one looking for a moderate-to-aggressive exhaust tone, inside and out. The mufflers are tuned to deliver more power, torque, throttle response, and mileage. With easy fitment in mind, each system has mandrel-bent tubing for maximum performance and flow; and includes all necessary parts and hardware for installation.
Part TypeExhaust System
Product LineFlowmaster American Thunder Exhaust Systems for Truck/SUV
BrandFLOWMASTER
Package Height10.0
Package Width15.0
Package Length58.0
Weight59.0 PG
Tailpipe Diameter (In.)3
Muffler Inlet Inside Diameter3 in.
Hangers IncludedYes
Main Piping Diameter3 in.
Tail Pipe QuantitySingle
Inlet TypeClamp-On
Tip CutSlant
Exhaust Tip Material304 Stainless Steel
Catalytic Converter Quantity0
Exit LocationPassenger side
Inlet QuantityOne
Muffler Body Length19 in.
Sound LevelModerate
Muffler MaterialStainless steel
Muffler Body Material409 Stainless Steel
Exhaust Tip CutAngled
Gasket Or Seal IncludedNo
Exhaust Tip IntercooledNo
Pipe ColorSilver
System FinishNatural
Muffler Quantity1
Muffler Inlet Outside Diameter3.13 in.
Exit QuantityOne
Tip MaterialStainless steel
Muffler Flanged OutletNo
Tip Quantity1
Exhaust Tip ResonatedNo
Exhaust TypeSingle
Catalytic Converter IncludedNo
Heat Shield IncludedNo
Part CategoryPerformance Parts
Hardware IncludedYes
Exhaust Tip WallSingle Wall
Exhaust Tip Quantity1
Exhaust Tip FinishPolished
Exhaust Tip EdgeRolled Edge Angle Cut
Valve IncludedNo
Muffler TypeChambered
Pipe Material409 Stainless Steel
Muffler Body Width10 in.
Tail Pipe Tapered OutletNo
Muffler Body ShapeOval
Mounting Bracket IncludedNo
Muffler Outlet Quantity1
Muffler FinishBlack High-Temperature Paint Finish
Inlet Diameter2.75 in.
Clamps IncludedYes
Muffler StyleChambered
Tip Outlet Size3.5 in (88.9 mm)
FinishNatural
Exit StyleSingle Out Side
Muffler Body Height5 in.
Tip IncludedYes
Clamping TypeFlat Band
Muffler Flanged InletNo
Spring Bolt Kit IncludedNo
Muffler Series50 Series HD
QuantitySold as a kit
Muffler IncludedYes
Exhaust Tip ConnectionClamp-On
System StyleCat Back
Tail Pipe Outlet Outside Diameter3 in.
Muffler ConfigurationSingle inlet/Single outlet
System MaterialStainless steel
Valve TypeNot Applicable
Tip Edge StyleRolled edge
Tip ShapeRound
Intermediate Pipe Diameter2.75 in (69.85 mm)
Exhaust Tip Diameter3 in.
Part FitmentDirect Fit
Vendor Part Number817513
Package Qty1
Package TypeEA
