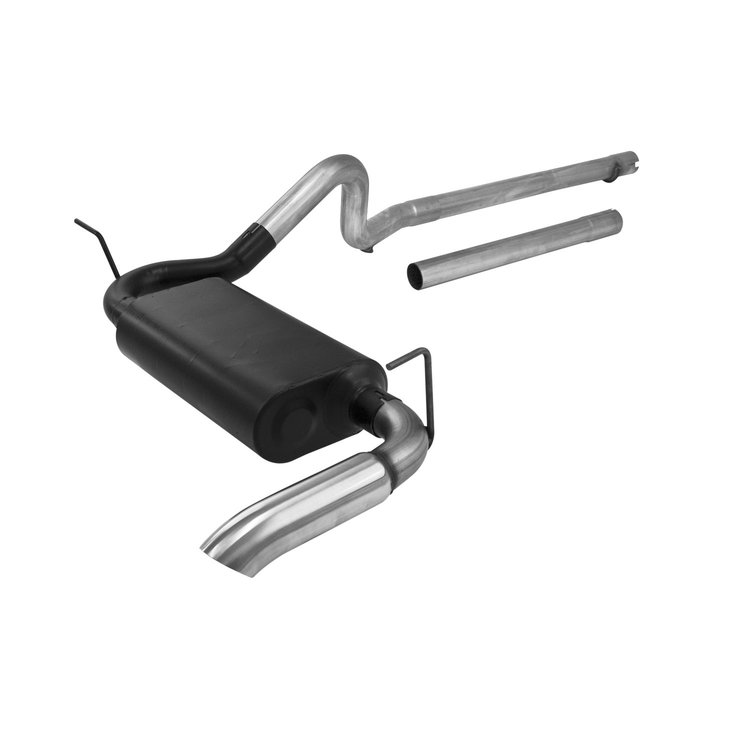

817514 Force II Cat-Back Exhaust System 2007-2018 Jeep Wrangler 3.8L V6
InfoVehicle Info Needed
FLOWMASTERPART NUMBER: 389-817514

817514 Force II Cat-Back Exhaust System 2007-2018 Jeep Wrangler 3.8L V6

$89995
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Jeep
Force II Cat-Back Exhaust System
  • 2007-2018 Jeep Wrangler 3.8L V6
  • 2.5" Tubing, 3" Polished SS Tips
  • Single Rear Exit
  • Super 50 Series Muffler
  • 409S Stainless Steel

    FLOWMASTER MUFFLERS 817514 Features:

    This Flowmaster® Force II® Cat-back exhaust system fits 2007-2018 Jeep Wrangler JK 2-door and 4-door models with the 3.8L or 3.6L engines. This emissions legal system is constructed from 2.50-inch mandrel-bent stainless steel flowing into a Super 50 Series™ muffler, which incorporates an internal resonance chamber keeping interior drone down to a minimum while providing a deep mild exterior sound level. The mandrel-bent tailpipe exits in the stock location and is finished off with a 3.00-inch brushed 304 stainless steel tip at the rear bumper. The system uses the factory hanger locations for easy installation and includes all necessary parts, hardware, installation instructions and is covered by our Lifetime Limited Warranty.
    • Super 50 Series Muffler with Built-in Resonance Chamber
    • Includes Hangers and Hardware for an Easy Installation
    • Mandrel-bent 16 gauge Stainless Steel Tubing
    • Connects After Factory Catalytic Converter
    • Stock to Mild Exterior Exhaust Tone
    • Uses the Factory Hanger Locations
    • Lifetime Limited Warranty
    • Part TypeExhaust System
    BrandFLOWMASTER
    Package Height9.0
    Package Width16.0
    Package Length38.0
    Weight40.4 PG
    Tailpipe Diameter (In.)2.5
    Muffler Inlet Inside Diameter2.50 in.
    Hangers IncludedYes
    Main Piping Diameter2.50 in.
    Tail Pipe QuantitySingle
    Inlet TypeClamp-On
    Tip CutSlant
    Exhaust Tip Material304 Stainless Steel
    Catalytic Converter Quantity0
    Exit LocationRear
    Inlet QuantityOne
    Muffler Body Length17 in.
    Sound LevelMild
    Muffler MaterialStainless steel
    Muffler Body Material409 Stainless Steel
    Exhaust Tip CutAngled
    Gasket Or Seal IncludedNo
    Exhaust Tip IntercooledNo
    Pipe ColorBlack
    System FinishNatural
    Muffler Quantity1
    Muffler Inlet Outside Diameter2.63 in.
    Exit QuantityOne
    Tip MaterialStainless steel
    Muffler Flanged OutletNo
    Tip Quantity1
    Exhaust Tip ResonatedNo
    Exhaust TypeSingle
    Catalytic Converter IncludedNo
    Heat Shield IncludedNo
    Part CategoryPerformance Parts
    Hardware IncludedYes
    Exhaust Tip WallSingle Wall
    Exhaust Tip Quantity1
    Exhaust Tip FinishPolished
    Exhaust Tip EdgeSlash Cut
    Valve IncludedNo
    Muffler TypeChambered
    Pipe Material409 Stainless Steel
    Muffler Body Width10 in.
    Tail Pipe Tapered OutletNo
    Muffler Body ShapeOval
    Mounting Bracket IncludedNo
    Muffler Outlet Quantity1
    Muffler FinishBlack High-Temperature Paint Finish
    Inlet Diameter2.50 in.
    Clamps IncludedYes
    Muffler StyleChambered
    Tip Outlet Size3 in (76.2 mm)
    FinishNatural
    Exit StyleSingle Out Rear
    Muffler Body Height5 in.
    Tip IncludedYes
    Clamping TypeFlat Band
    Muffler Flanged InletNo
    Spring Bolt Kit IncludedNo
    Muffler SeriesSuper 50 Series
    QuantitySold as a kit
    Muffler IncludedYes
    Exhaust Tip ConnectionWelded
    System StyleCat Back
    Tail Pipe Outlet Outside Diameter2.50 in.
    Muffler ConfigurationSingle inlet/Single outlet
    System MaterialStainless steel
    Valve TypeNot Applicable
    Tip Edge StyleRolled edge
    Tip ShapeRound
    Intermediate Pipe Diameter2.5 in (63.5 mm)
    Exhaust Tip Diameter3 in.
    Part FitmentDirect Fit
    Vendor Part Number817514
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
