Ford Performance M-6006-M50C Features:

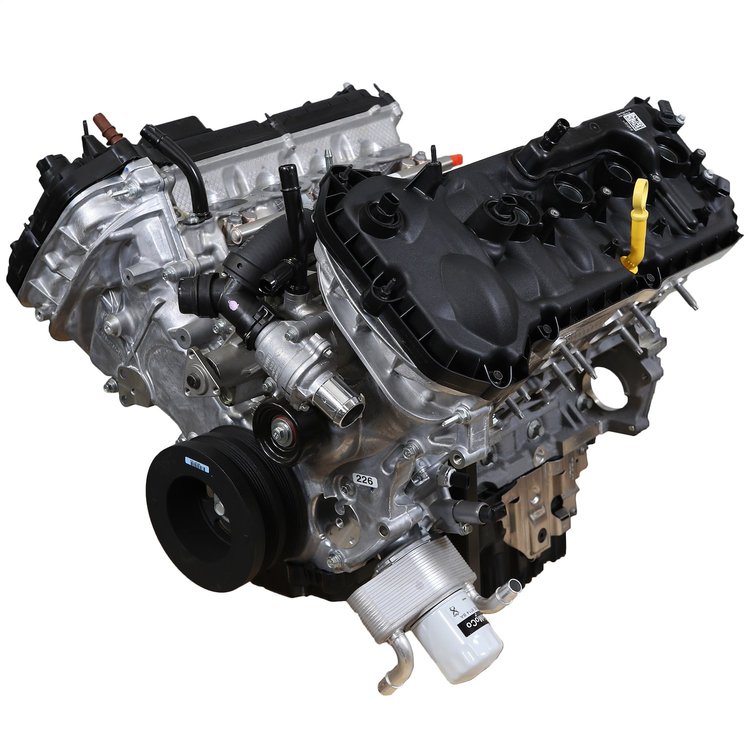

This long block assembly is the basis for the Ford Performance M-6007-M50C all-aluminum 2018-2021 5.0L Coyote crate engine.

• 12.0:1 compression ratio
• Hypereutectic aluminum pistons
• Sintered steel connecting rods - as used on BOSS 302 Mustang
• Forged steel crankshaft
• Aluminum block which features plasma transferred wire arc spray weld liner coating
• Longer, 12 mm head bolts for higher clamp load
• 10 qt. capacity oil pan
• High-flow aluminum cylinder heads
• Dual overhead camshaft (DOHC), four valves per cylinder, variable intake and exhaust camshaft timing
• Engine mount bosses and bell housing mount patterns common to 4.6L modular engines
• Optimized oil drain-back and windage control to improve high-rpm performance
• Cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength
• Engine weight: 445 lbs.

Ford Performance M-6006-M50C Notes:

• Does NOT include:
  • Intake manifold/throttle body
  • Fuel rails/fuel injectors
  • Water pump pulley
  • Alternator
  • Exhaust manifolds
  • Flywheel/flexplate
  • Engine wiring/PCM
