Made in USA

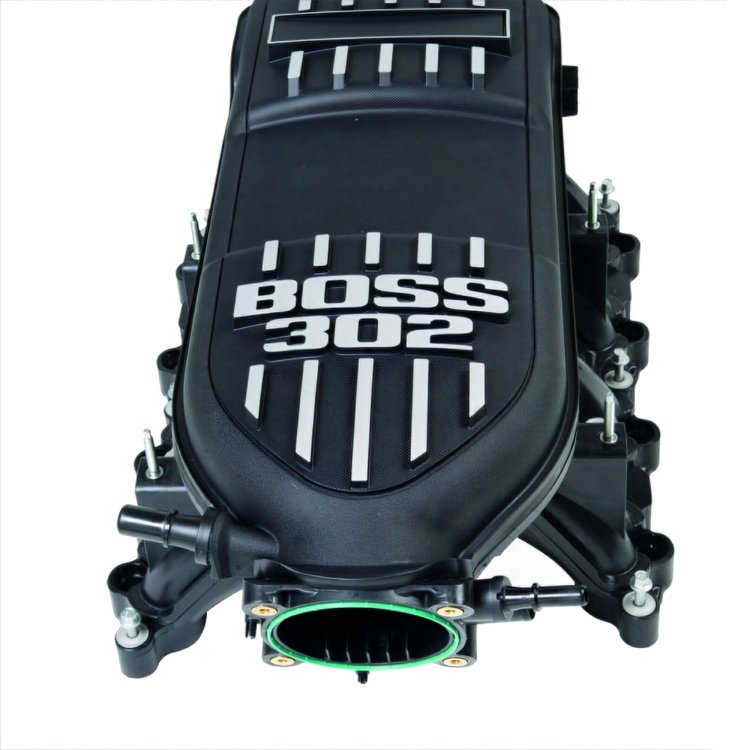

Boss 302 Intake Manifold 2011-14 Mustang 5.0L 4V Engines
InfoVehicle Info Needed
FORD PERFORMANCEPART NUMBER: 397-M-9424-M50BR

Boss 302 Intake Manifold 2011-14 Mustang 5.0L 4V Engines

$25649$284.99You Save$28.50
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

5.0L
    Boss 302 Intake Manifold
  • 2011-14 Mustang 5.0L 4V Engines

  • Fits 2011-2014 Mustang GT with manual transmission
  • Original equipment on Mustang Boss 302, 302S and 302R Race Cars
  • Made from light-weight composite material
  • Short runners for optimum flow at high rpm's.

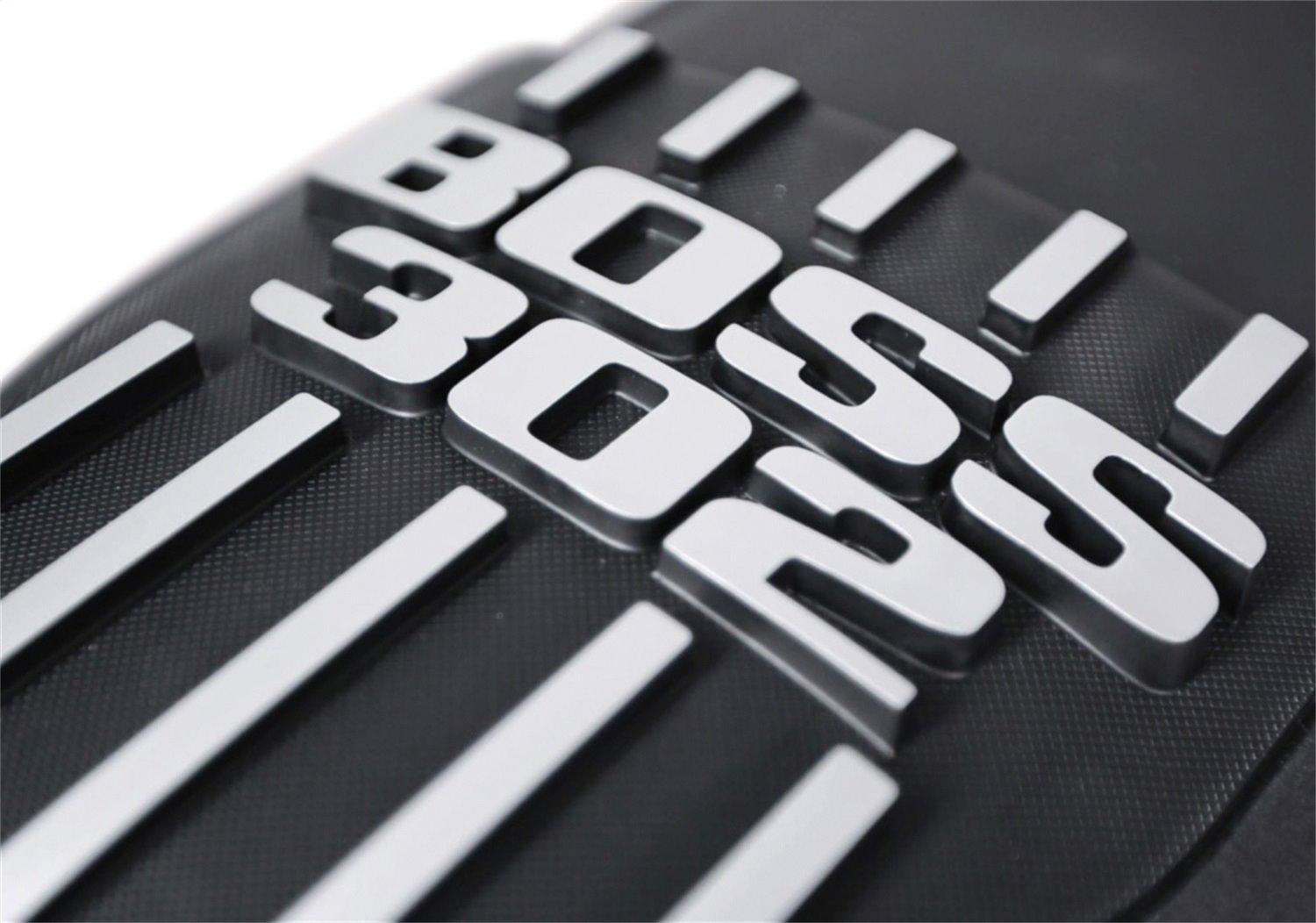

  • Includes unique Ford Racing intake badging
  • O-ring intake gaskets included
  • Calibration is necessary to prevent engine damage! Calibration not included!

    Ford Racing has done it again. You can now put the same intake manifold on your Mustang that comes equipped from the factory on a 2012 Ford Mustang Boss 302. These Ford Racing Boss 302R 5.0L modular intake manifolds feature a huge plenum, coupled with the long, straight runners, allowing for increased airflow at upper rpm levels without sacrificing low-end torque. They have gone through and passed all of the rigorous testing to become assembly line parts, so a direct fit and long service life are guaranteed. Ford Racing Boss 302R 5.0L modular intake manifolds are manufactured from high-quality, composite materials and provide you with excellent high-rpm flow characteristics.

  • Made From Lightweight Composite Material
  • Short Runners For Optium Flow at High RPM
  • Incl. Unique Ford Racing Intake Badging
  • O-Ring Gaskets Included
  • Calibration Is Necessary To Prevent Engine Damage
  • Calibration Not Included
  • Boss Inlet Tube Does Not Provisions For Aspiration Tube Hookup

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeIntake Manifold
BrandFORD PERFORMANCE
Package Height11.5
Package Width14.25
Package Length22.25
Weight13.34 PG
Part CategoryPerformance Parts
Runners RemovableNo
Number Of CarbsNone, For Fuel Injection
Supplemental Bosses Cast-InNo
Plenum MaterialComposite plastic
EmissionWith EGR
Engine Make/SizeFord 5.0L/302
Base FinishBlack
Rpm RangeOEM
Injection StyleMulti-port
Base MaterialComposite plastic
Plenum FinishBlack
Aftermarket Fuel Rail RequiredNo
Engine Block StyleStock/OEM standard deck
UsageStreet/Hi-Performance
Throttle Body IncludedNo
PositionN/A
QuantitySold individually
Cylinder Head TypeStandard
Injectors IncludedNo
Fuel Rails IncludedNo
Intake Section IncludedComplete
EgrWithout EGR
Supplemental Bosses MachinedNo
Runners IncludedYes
Part FitmentSemi Universal
Vendor Part NumberM-9424-M50BR
Package Qty1
Package TypeEA
