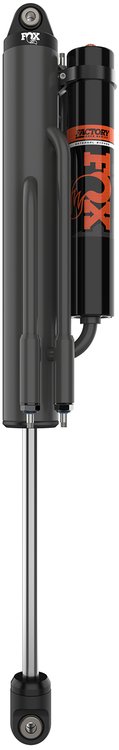

This Factory Race Series external bypass shock absorber is a non-vehicle-specific damper for custom, prerunner and race builds. It has a 3 in. body and 7.86 in. of travel, so check your shock mounts and chassis geometry before you order.

FOX 981-30-427-R Installation Notes:

• Universal application; verify mounting dimensions before installation.
• Right/Passenger Side unit.
• Sold individually.

Key Dimensions:

• Body diameter is 3 in.
• Shaft diameter is 7/8 in.
• Usable travel is 7.86 in.
• Extended length is 24.46 in. and compressed length is 16.6 in.
• The body is steel with a gray cerakote finish.
• The piggyback reservoir holds extra oil and nitrogen to help control heat during long runs.
• Mounting uses eyelet top and bottom mounts. Eyelet length is 2 in.
• Mounting hole and bushing size is 1/2 x 1-1/2 in.
• Reservoir measures 2.55 in. x 8.00 in.
• 4 external bypass tubes (3/4 in. size) shape the damping curve.
• Damping is tuned with Gen 2 External Bypass Clickers.
• Service seal kit part number: 803-04-025.
