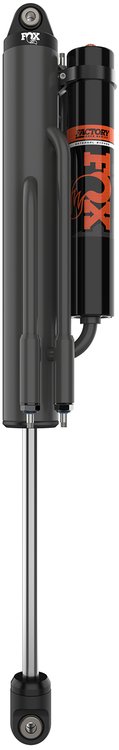

A 3 in. body and 15.86 in. of travel make this Factory Race Series external bypass shock absorber a fit for race-prepped trucks, UTVs and custom chassis where the exact mounting dimensions are known.

FOX 981-30-431-R Installation Notes:

• Universal application; verify mounting dimensions before installation.
• Right/Passenger Side unit.
• Sold individually.

Key Dimensions:

• Body diameter is 3 in.
• Shaft diameter is 7/8 in.
• Usable travel is 15.86 in.
• Extended length is 41.46 in. and compressed length is 25.6 in.
• The body is steel with a gray cerakote finish.
• The remote reservoir holds extra oil and nitrogen to help control heat during long runs.
• Mounting uses eyelet top and bottom mounts. Eyelet length is 2 in.
• Mounting hole and bushing size is 1/2 x 1-1/2 in.
• Reservoir measures 2.55 in. x 14.00 in.
• Reservoir hose is -10 AN and 28 in. long.
• 5 external bypass tubes (3/4 in. size) shape the damping curve.
• Damping is tuned with Gen 2 External Bypass Clickers.
• Service seal kit part number: 803-04-025.
