Capacitive Discharge Coil

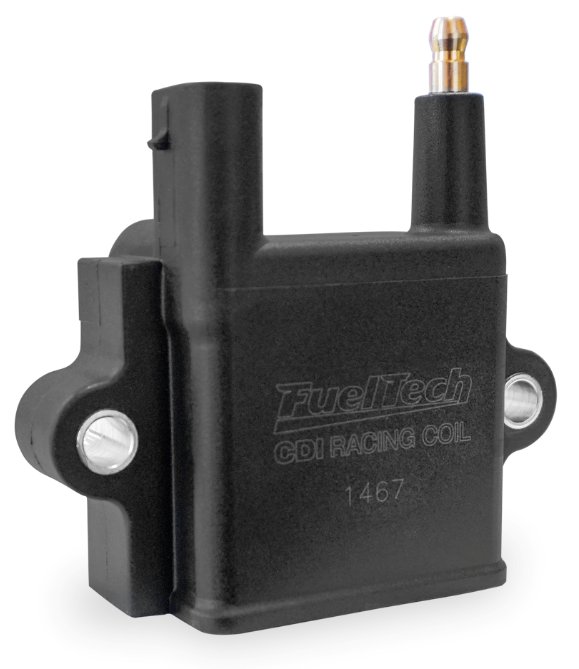

Capacitive Discharge Racing Ignition Coil
  • Only for Use with Capacitive Discharge Ignitions
  • Individual Coil per Cylinder and Rotary Engines
  • Sold Individually

    FuelTech 5001100171 Capacitive Discharge Racing Ignition Coil:

    • Used ONLY with capacitive discharge ignitions (CDI)
    • Developed and recommended for use with FuelTech High-Energy Capacitive Discharge Ignition Modules
    • NOT for use with inductive ignition driver modules such as FuelTech SparkPRO
    • Uses FuelTech CDI racing ignition coil plug kit 5005100161 (sold separately)

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

      • Ignition Coils with the Power to Fire under Extreme Cylinder Pressures

      FuelTech ignition coils are designed with the power to run engines with high-compression ratios, boost, or nitrous.

    Part TypeIgnition Coil
    Product LineFuelTech Ignition Coils
    BrandFUELTECH
    Package Height3.7
    Package Width3.8
    Package Length4.3
    Weight0.93 PG
    Part CategoryPerformance Parts
    Primary Resistance0.090 ohms
    Coil Wire AttachmentMale
    Test Voltage470 V DC
    Coil StyleCapacitive Discharge
    Primary Inductance0.78 mH
    QuantitySold individually
    Output (No Load)44k V
    Leakage Inductance0.057 mH
    Capacitance1.5 mF
    Secondary Resistance988 ohms
    Part FitmentSemi Universal
    Secondary Inductance3.7 H
    Vendor Part Number5001100171
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
