170 lbs./hr.

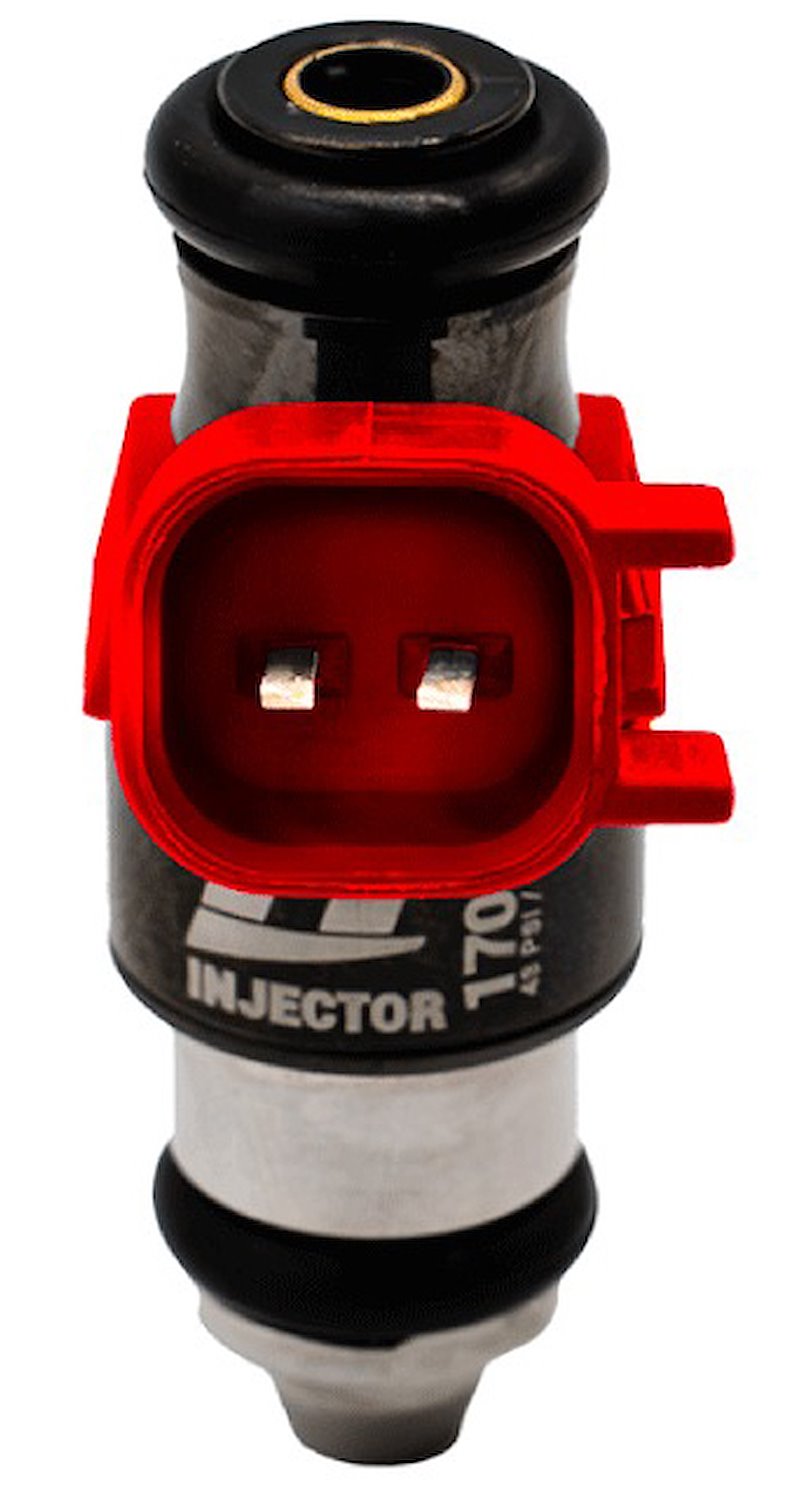

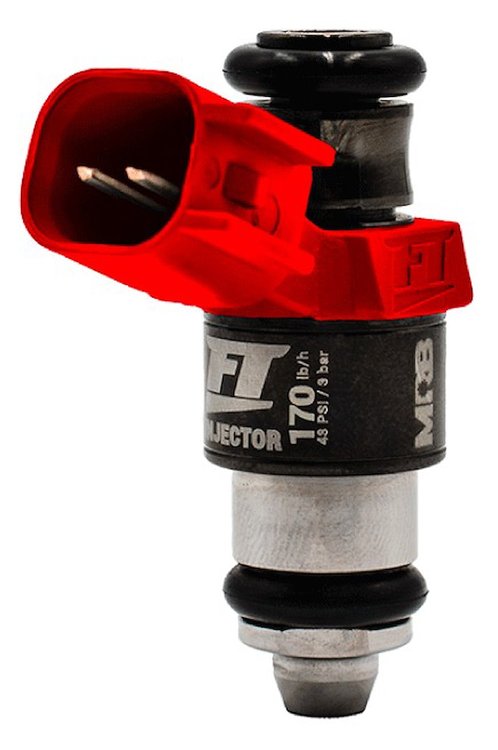

FT Fuel Injector
  • 142 lbs./hr. @ 30 psi Fuel Pressure
  • 170 lbs./hr. @ 43.5 psi Fuel Pressure
  • 253 lbs./hr. @ 90 psi. Fuel Pressure
  • EV6 Connector
  • Red
  • Set of 8

    FuelTech 5010115897-8 FT Fuel Injectors Features:

    • High impedance design—no peak and hold driver required, making wiring simpler and more reliable
    • Compatible with gasoline, ethanol, methanol, nitromethane, nitropropane, MTBE, ETBE—built for versatility across many fuel setups
    • Features EV6 style connector (USCAR plug) with silver-plated terminals for better conductivity and corrosion resistance
    • Short-length form factor helps fit into tight engine bays or setups where standard injector height is constrained
    • Coil resistance: 7.4-8.2 ohms
    • Dimensions:
      • Overall height: 1.970 in.
      • Overall width: 0.710 in.
      • O-Ring Diameter: 0.570 in.
    • IP67 rated for environmental protection—sealed against moisture and harsh conditions
    • All injectors flow tested and calibrated for linearity and repeatability to ensure equal fuel delivery across all cylinders

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Injectors Compatible with any Fuel, from Gasoline to Nitromethane

      FuelTech fuel injectors are manufactured from high-quality, corrosion-resistant materials allowing them to work with whatever fuel you're using.

    Part TypeFuel Injector
    Product LineFuelTech Fuel Injectors
    BrandFUELTECH
    Package Height0.5
    Package Width1.0
    Package Length2.0
    Weight1.0 PG
    Part CategoryPerformance Parts
    Wiring Harness IncludedNo
    Overall Height1.97 in
    Tip Length0.28 in.
    Top O-Ring Diameter0.57 in.
    Injector Advertised Flow Rate (Lbs./Hr.)170 lbs./hr
    ColorRed/Black
    Injector Plug StyleEV6
    QuantitySet of 8
    O-Rings IncludedYes
    Injector ImpedanceLow 1.5 ohms
    Bottom O-Ring Diameter0.57 in.
    Part FitmentSemi Universal
    Vendor Part Number5010115897-8
    Package Qty1
    Package TypeEA
