GF-LS-SBC-AP Engine Adapter Plates for Chevy LS to Small Block Chevy Vehicles

Name: GF-LS-SBC-AP Engine Adapter Plates for Chevy LS to Small Block Chevy Vehicles
Brand: G FORCE PERFORMANCE PRODUCTS
SKU: 472-GF-LS-SBC-AP
Price: 44.99 USD
Availability: InStock

^$44⁹⁹

Ships Tomorrow

Lowest Price Guarantee

Engine Adapter Plates

For Chevy LS to Small Block Chevy Vehicles

G Force Performance GF-LS-SBC-AP Features:

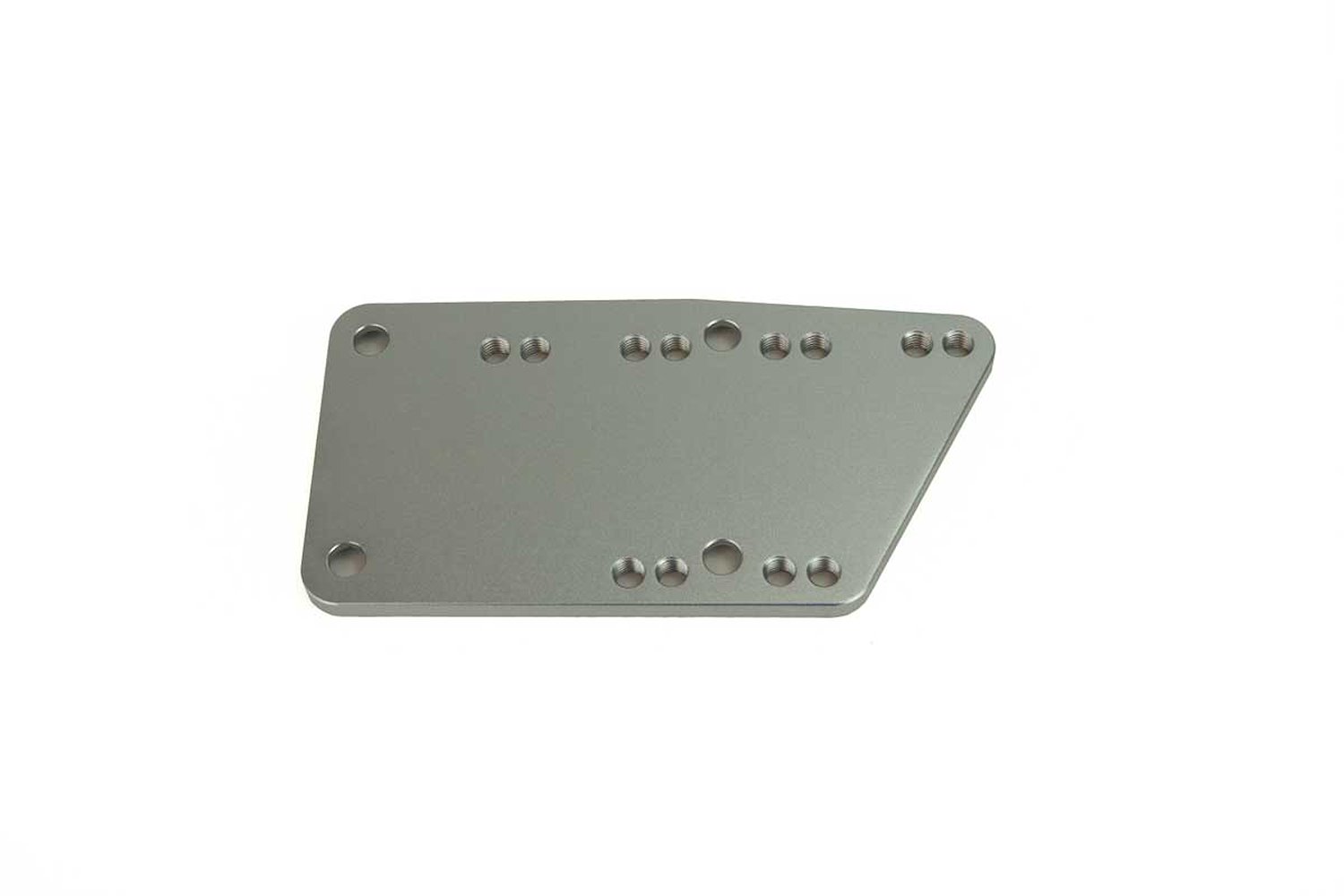

These 3/8" thick Billet Aluminum adapter plates allow a LS Series Engine to be bolted to a vehicle originally equipped with a Small Block Chevy (SBC) engine.
These adapters bolt to your LS series engine and have provisions for 4 different mounting locations for a standard 3 bolt SBC Motor mount.

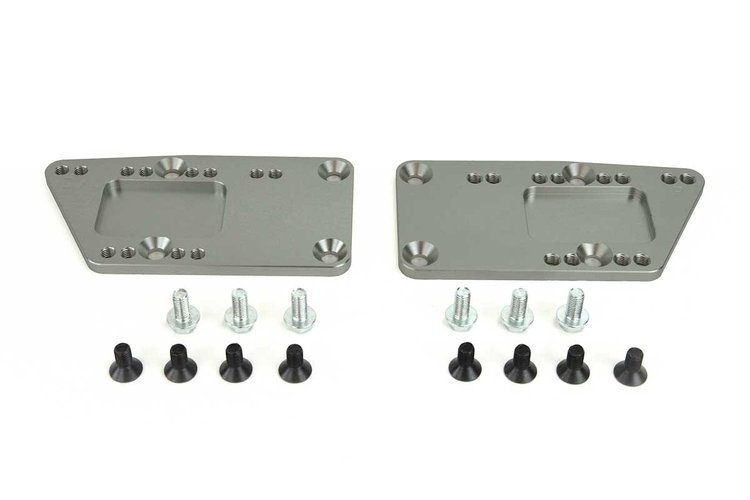

Includes:
- 2 aluminum adapter plates
- 6 flange head M10 bolts
- 8 flat head M10 bolts.
The fG Force positions of these mounts are 0.100" , 0.600" , 1.860" , and 2.360" engine moved forward.
Engine crank centerline will be 0.18" above factory SBC.

Part TypeMotor Mount Adapter Plate

BrandG FORCE PERFORMANCE PRODUCTS

Package Height4.0

Package Width6.0

Package Length10.0

Weight3.0 PG

Part CategoryPerformance Parts

Part FitmentDirect Fit

Vendor Part NumberGF-LS-SBC-AP

Package Qty1

Package TypeEA

No Questions
