GF-LSAR5-KIT Transmission Adapter Kit for Chevy LS (Gen III/IV) to AR5 5-Speed

Name: GF-LSAR5-KIT Transmission Adapter Kit for Chevy LS (Gen III/IV) to AR5 5-Speed
Brand: G FORCE PERFORMANCE PRODUCTS
SKU: 472-GF-LSAR5-KIT
Price: 289.00 USD
Availability: InStock

^$289⁰⁰

Ships on 11/03/2026

Lowest Price Guarantee

Transmission Adapter Kit

For Chevy LS (Gen III/IV) to AR5 5-Speed

G Force Performance GF-LSAR5-KIT Features:

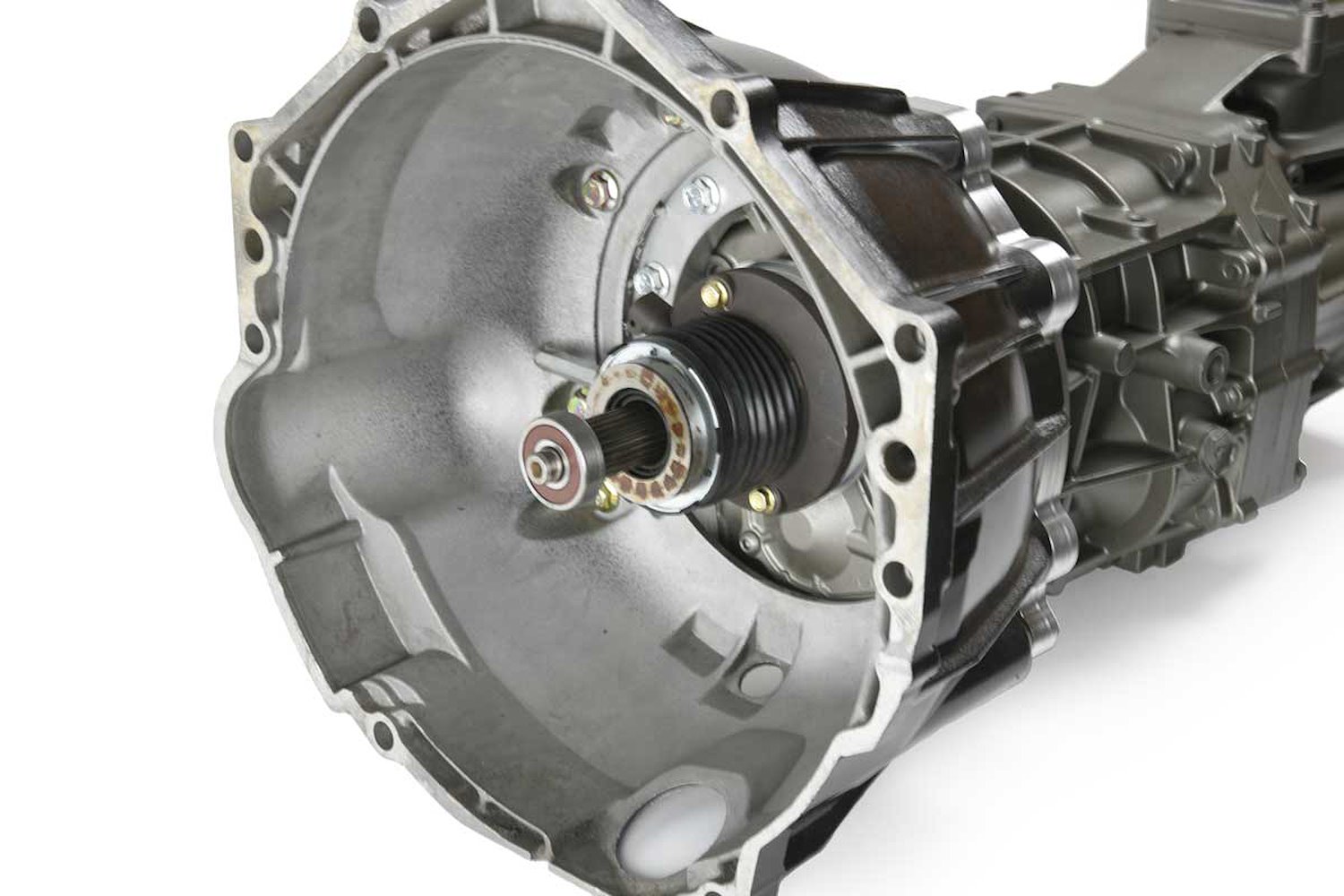

Mate your G Force Aisin AR5 5-speed manual transmission to any short-crank LS Gen 3 or Gen 4 engine utilizing this G Force Adapter kit
Designed to be used with an LS Style 4L60e bellhousing (not included)

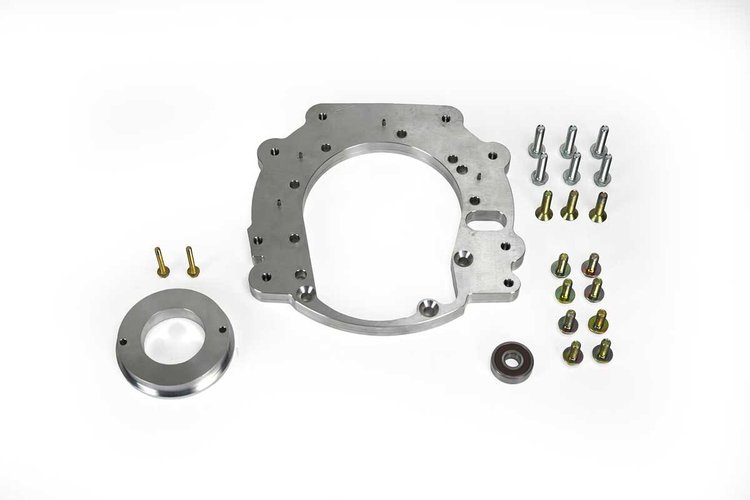

Comes with the following:
- 1- G Force Bellhousing Adapter
- 1- G Force Clutch Release Bearing Spacer
- 1- Pilot Bearing
- 1- Hardware Kit
Constructed from 6061 T6 billet aluminum
Designed to be used with F-Body style throwout/ slave cylinder (LUK # 5100041770)
Use any F-Body LS1 T56 Clutch and Flywheel
Must be used with remote bleeder
AR5 Transmissions were found in Chevy Colorado and GMC Canyon in both 2WD and 4x4.

Adapt Popular Engines to Transmissions with G Force

G Force Performance Transmission Adapters provide you with the ability to connect the most popular engine swaps (application pending) to vehicle-specific transmissions for reliable and customized builds and power increases. These kits feature premium adapters, plates, flywheels (where applicable), and hardware for seamless installation.

Part TypeTransmission Adapter

Product LineG Force Performance Transmission Adapters

BrandG FORCE PERFORMANCE PRODUCTS

Package Height3.0

Package Width14.0

Package Length14.0

Weight10.0 PG

Part CategoryPerformance Parts

Part FitmentDirect Fit

Vendor Part NumberGF-LSAR5-KIT

Package Qty1

Package TypeEA
