Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

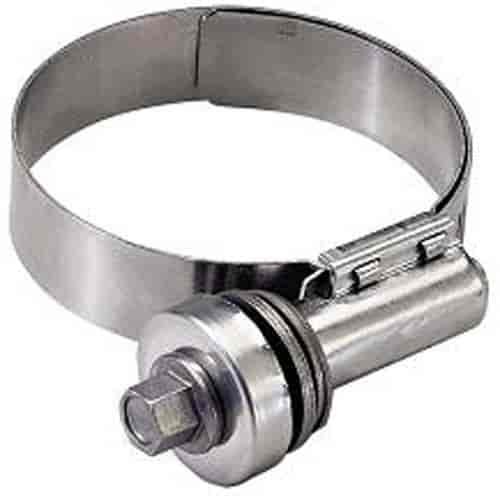

Constant-Tension Clamps
- Constant-Tension Hose Clamp
- Range: 1.25" to 2.125"
- 1/pkg
Choose from a variety of high-quality clamps. Sold 1/pkg.
Features:
- 100% marine-grade stainless steel
- Saline and corrosion-resistant
Show More
- 9/16" wide band with rounded edges
- 300 Series stainless steel screw with deep-slotted 5/16" hex Green Stripe T-Bolt Hose Clamps
- Designed for high-vibration and large diameter applications (e.g. heavy truck, off-road, industrial)
- 3/4" wide 201/301 stainless steel band
- 1/4"-28 plated steel bolt with 7/16" hex
- Nylon insert and plated steel locknut Green Stripe Constant-Tension Hose Clamps
- Reusable self-adjusting band for a dependable seal
- 100% stainless steel for maximum corrosion resistance
- 9/16" wide band with rounded edges
- Spring washers with higher rates of band tension contribute to superior sealing
- Tighten to minimum 50 in/lbs and maximum 85 in/lbs Silicone Hose Clamps
- Designed to provide extra-tight seal on silicone hose
- 300 Series stainless steel 9/16" wide band
- Inner liner prevents hose cover extrusion
- Combination 5/16" hex deep-slotted screw
- Mechanical interlock for added strength
- Tighten to 35 in/lbs
| Clamp Size | Hose ID (Inside Diameter) | Hose Clamping Range |
| Size 8 | Fits 5/16" to 1/2" | 7/16" to 1" |
| Size 10 | Fits 3/8" to 5/8" | 3/4" to 1-1/8" |
| Size 12 | Fits 5/8" to 3/4" | 7/8" to 1-1/4" |
| Size 16 | Fits 3/4" to 1" | 1" to 1-1/2" |
| Size 24 | Fits 1-1/4" to 1-1/2" | 1-1/4" to 2" |
| Size 28 | Fits 1-1/4" to 1-3/4" | 1-5/16" to 2-1/4" |
| Size 32 | Fits 1-1/2" to 2" | 1-9/16" to 2-1/2" |
| Size 36 | Fits 1-3/4" to 2-1/4" | 1-13/16" to 2-3/4" |
| Size 40 | Fits 2" to 2-1/2" | 2-1/16" to 3" |
| Size 44 | Fits 2-1/4" to 2-3/4" | 2-5/16" to 3-1/4" |
| Size 48 | Fits 2-1/2" to 3" | 2-9/16" to 3-1/2" |
| Size 52 | Fits 3" to 3-1/4" | 2-13/16" to 3-3/4" |
| Size 56 | Fits 3-1/4" to 3-1/2" | 3-1/16" to 4" |
| Size 64 | Fits 3-3/4" to 4" | 3-9/16" to 4-1/2" |
| Size 72 | Fits 4" to 4-1/2" | 4-1/16" to 5" |
Part TypeHose Clamp
Product LineGates Hose Clamps
BrandGATES
Package Height0.8
Package Width2.5
Package Length3.2
Weight0.22 PG
Part CategoryAccessories
Band Width (In).5625
TypeConstant Tension (Heavy-Duty)
Clamping Range Min (In)1.25
Clamping Range Max (In)2.125
Screw Type.375" Hex-Head
Vendor Part Number32620
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
