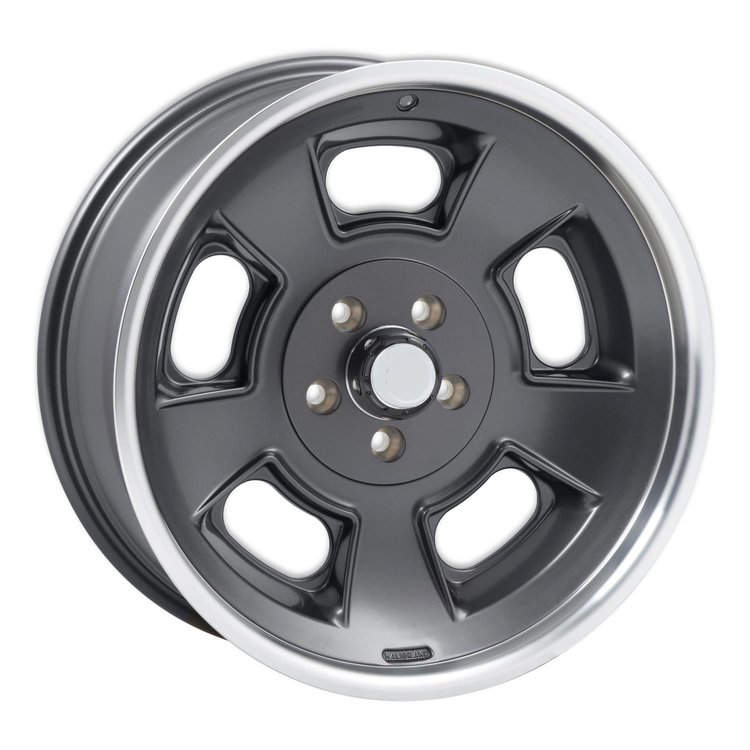

Sprint Front Wheel, Size: 20x8.5", Bolt Pattern: 5x5", Backspace: 4.75" [Anthracite with Machined Lip - Semi Gloss Clearcoat]
Product Discontinued
HALIBRAND WHEELSPART NUMBER: 524-HB001-033

Sprint Front Wheel, Size: 20x8.5", Bolt Pattern: 5x5", Backspace: 4.75" [Anthracite with Machined Lip - Semi Gloss Clearcoat]

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Items You Need

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

JEGS

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

Part Number : 555-W32902
$4199$46.99
You Save$5.00
Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

JEGS

Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

Part Number : 555-W32903
$5699$62.99
You Save$6.00
Leather Split Sleeves 18 in. Set of 2

JEGS

Leather Split Sleeves 18 in. Set of 2

Part Number : 555-81646
$1599$18.99
You Save$3.00
1/2 in. Drive Metric Socket Set [9-Piece]

JEGS

1/2 in. Drive Metric Socket Set [9-Piece]

Part Number : 555-W32202
$1799$19.99
You Save$2.00

  • Size: 20x8.5
  • Bolt Pattern: 5x5
  • Backspace: 4.75
  • Finish: Anthracite with Machined Lip - Semi Gloss Clearcoat


  • JEGS How to Measure Wheel Fitment: Click Here

    Halibrand HB001-033 Features:

      Wheel Fitment: Front with Narrow Spindle
    • Offset: 0
    • Center Bore: 3.083"
    • Material: A356 Aluminum
    • Wheel Construction: Flow Formed
    • Load Rating: 900 (kg)
    • Center Cap Included: Yes
    • Lug Nut Seat Style: 60 Degree Conical

      Nostalgic style wheels for the Square-Body C10

      Halibrand Sprint Wheels for the Square-Body C10 are a nostalgic styled wheels based on the original classic "Sprint" wheels, but updated to fit modern tire sizes and modern tapered seat lug nuts. They were engineered specifically for the C10 Square-Body fleet side trucks with proven fitment, tire clearance, and backspacing optimized to fill up the wheel openings. These wheels eliminate the fitment guesswork and tire rubbing that can be common with generic-sized after-market wheels. The Flow-Formed wheel manufacturing process applies pressure and heat to the wheel casting while it is spinning to stretch and compress the aluminum. The finished wheel is lighter, stronger, and features a higher shock resistance and load capacity compared to a standard cast aluminum wheel.

    Part TypeWheel
    Product LineHalibrand Sprint Anthracite with Machined Lip Semi Gloss Clearcoat Wheels
    BrandHALIBRAND WHEELS
    Package Height12.0
    Package Width23.6
    Package Length23.8
    Weight36.05 PG
    Backspacing4.75 in.
    Center Bore Diameter3.083 in.
    ColorAnthracite
    Wheel Bolt Pattern5 x 5 (127 mm)
    Wheel Diameter20 in.
    Wheel Offset0 mm (0 in)
    Wheel TypeCar Street Wheels
    Wheel Width8.5 in.
    Wheel MaterialFlow Formed Aluminum
    Bolt Pattern5 x 5 in.
    Wheel FinishAnthracite
    Back Spacing4.75 in (120.65 mm)
    Offset0 In.
    Vendor Part NumberHB001-033
    Package Qty1
    Package TypeEA
