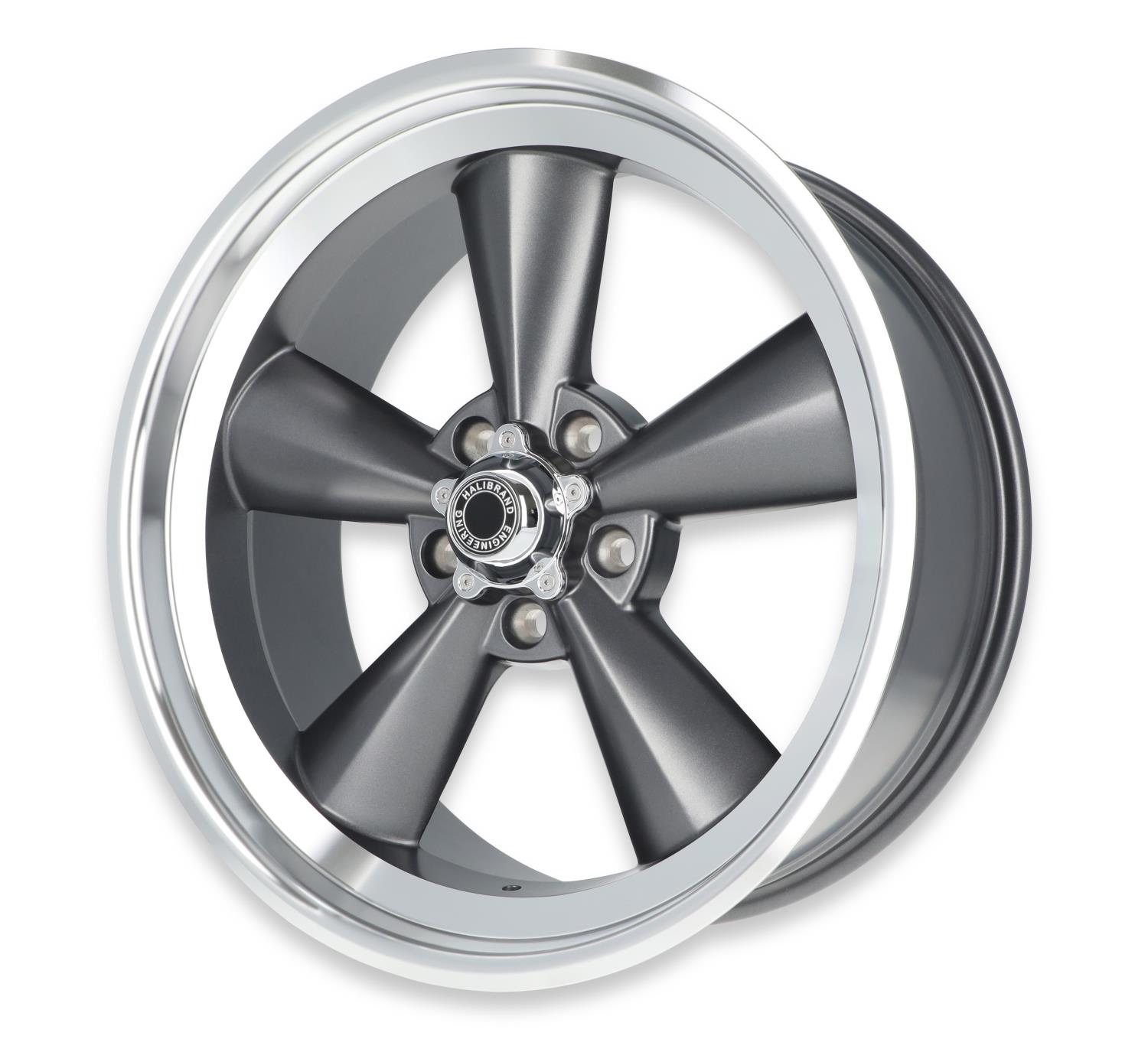

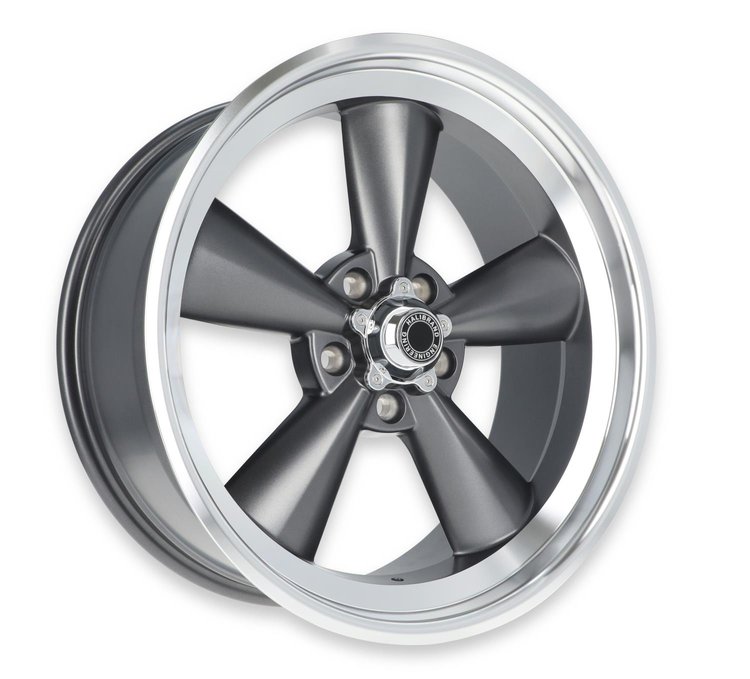

5 Spoke Front Wheel, Size: 20x8.5", Bolt Pattern: 5x5", Backspace: 5.25" [Anthracite - Semi Gloss Clearcoat]
Product Discontinued
HALIBRAND WHEELSPART NUMBER: 524-HB005-002

5 Spoke Front Wheel, Size: 20x8.5", Bolt Pattern: 5x5", Backspace: 5.25" [Anthracite - Semi Gloss Clearcoat]

Color:

Anthracite
Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

  • Size: 20x8.5
  • Bolt Pattern: 5x5
  • Backspace: 5.25
  • Finish: Anthracite - Semi Gloss Clearcoat


    • JEGS How to Measure Wheel Fitment: Click Here

    Halibrand HB005-002 Features:

      Wheel Fitment: Front with Stock Track Width
    • Offset: 13
    • Center Bore: 3.083"
    • Material: A356 Aluminum
    • Wheel Construction: Flow Formed
    • Load Rating: 900 (kg)
    • Center Cap Included: Yes
    • Lug Nut Seat Style: 60 Degree Conical

      Halibrand 5 Spoke for the Square-Body C10

      Halibrand 5 Spoke for the Square-Body C10 are a nostalgic styled wheel based on original Halibrand design, but updated to fit modern tire sizes and modern tapered seat lug nuts. They were engineered specifically for the C10 Square-Body fleet side trucks with proven fitment, tire clearance, and backspacing optimized to fill up the wheel openings. The finished wheel is lighter, stronger, and features a higher shock resistance and load capacity compared to a standard cast aluminum wheel. Wheels are available with a painted Anthracite finish or fully polished.

    Part TypeWheel
    Product LineHalibrand 5 Spoke Anthracite Semi Gloss Clearcoat Wheels
    BrandHALIBRAND WHEELS
    Package Height10.5
    Package Width22.1
    Package Length22.5
    Weight29.04 PG
    Backspacing5.25 in.
    Center Bore Diameter3.083 in.
    ColorAnthracite
    Wheel Bolt Pattern5 x 5 (127 mm)
    Wheel Diameter20 in.
    Wheel Offset13 mm (.5118 in)
    Wheel TypeCar Street Wheels
    Wheel Width8.5 in.
    Wheel MaterialFlow Formed Aluminum
    Bolt Pattern5 x 5 in.
    Wheel FinishAnthracite
    Back Spacing5.25 in (133.35 mm)
    Offset0.511 in.
    Vendor Part NumberHB005-002
    Package Qty1
    Package TypeEA
