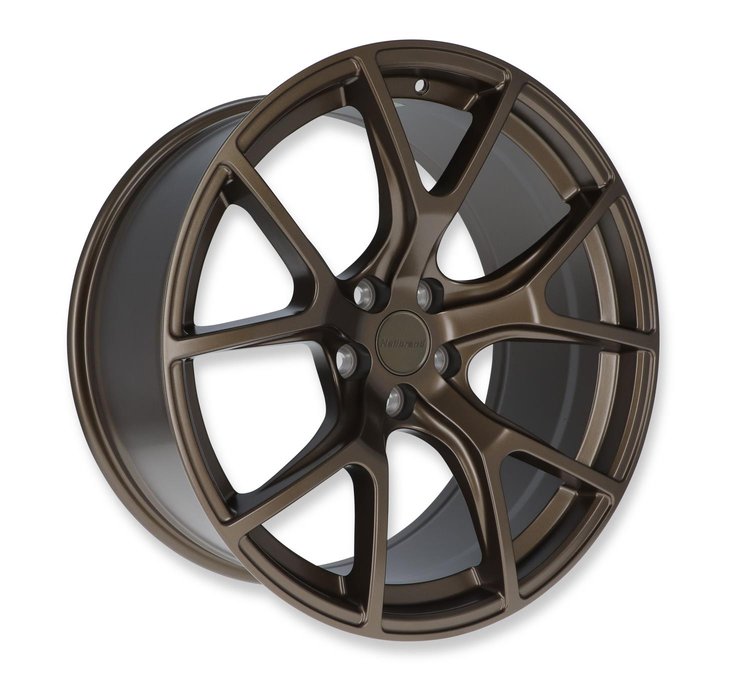

Split-Spoke Wheel, Size: 20x9.5", Bolt Pattern: 5x115", Backspace: 5.84" [Semi Gloss Bronze]
Product Discontinued
HALIBRAND WHEELSPART NUMBER: 524-HB006-005

Split-Spoke Wheel, Size: 20x9.5", Bolt Pattern: 5x115", Backspace: 5.84" [Semi Gloss Bronze]

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Items You Need

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

JEGS

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

Part Number : 555-W32902
$4199$46.99
You Save$5.00
Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

JEGS

Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

Part Number : 555-W32903
$5699$62.99
You Save$6.00
TIG 200 1/16 in. (1.6 mm) Tungsten Rod for All JEGS TIG Welders

JEGS

TIG 200 1/16 in. (1.6 mm) Tungsten Rod for All JEGS TIG Welders

Part Number : 555-81595
$399$5.99
You Save$2.00
1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

JEGS

1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

Part Number : 555-M200DB
$5239$56.99
You Save$4.60

  • Size: 20x9.5
  • Bolt Pattern: 5x115
  • Backspace: 5.84
  • Finish: Semi Gloss Bronze


  • JEGS How to Measure Wheel Fitment: Click Here

    Halibrand HB006-005 Features:

      Wheel Fitment: Front or Rear without AWD
    • Offset: 15
    • Center Bore: 3.083"
    • Material: A356 Aluminum
    • Wheel Construction: Flow Formed
    • Load Rating: 900 (kg)
    • Center Cap Included: Yes
    • Lug Nut Seat Style: 60 Degree Conical

      Modern Mopar Application Split-Spoke Wheels

      Halibrand's Split-Spoke wheels were designed for Modern Mopar applications with ideal sizes tailored to the vehicle, hub centric mounting, and proven fitment & tire clearance. The unique front and rear offset fill up the wheel openings and moves the wheels out closer to flush with the body. The Flow-Formed wheel manufacturing process applies pressure to the wheel casting while it is spinning to stretch and compress the aluminum. The finished wheel is lighter, stronger, and has a higher shock resistance & load capacity - as compared to a standard cast aluminum wheel. A color-matched, snap in polymer center cap is included with each wheel, but factory Mopar center caps from applicable vehicles can be re-installed for a more OE look if desired.

    Part TypeWheel
    Product LineHalibrand Split-Spoke Semi Gloss Bronze Wheels
    BrandHALIBRAND WHEELS
    Package Height11.6
    Package Width21.9
    Package Length22.0
    Weight31.52 PG
    Backspacing5.84 in.
    Center Bore Diameter3.083 in.
    Wheel Bolt Pattern5 x 115 mm
    Wheel Diameter20 in.
    Wheel TypeCar Street Wheels
    Wheel Offset15 mm (.5905 in)
    Wheel Width9.5 In.
    Wheel MaterialFlow Formed Aluminum
    Wheel FinishGloss Bronze
    Bolt Pattern5 x 115 mm
    Back Spacing5.84 in (148.336 mm)
    Offset0.59 In.
    Vendor Part NumberHB006-005
    Package Qty1
    Package TypeEA
