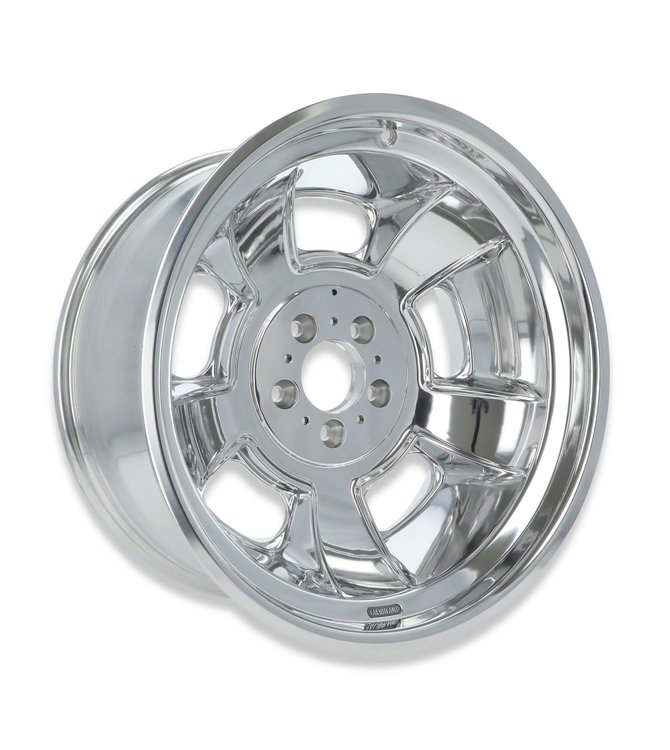

Sprint Rear Wheel, Size: 20x10", Bolt Pattern: 5x5", Backspace: 4" [Polished]
InfoVehicle Info Needed
HALIBRAND WHEELSPART NUMBER: 524-HB007-063

Sprint Rear Wheel, Size: 20x10", Bolt Pattern: 5x5", Backspace: 4" [Polished]

$52995
ShippingShips on Sep 14, 2026
Lowest PriceLowest Price Guarantee

  • Size: 20x10
  • Bolt Pattern: 5x5
  • Backspace: 4
  • Finish: Polished - No Clearcoat


  • JEGS How to Measure Wheel Fitment: Click Here

    Halibrand HB007-063 Features:

      Wheel Fitment: Rear with 3 in. Narrowed Axle
    • Offset: -37
    • Center Bore: 3.083"
    • Material: A356 Aluminum
    • Wheel Construction: Flow Formed
    • Load Rating: 900 (kg)
    • Center Cap Included: Yes
    • Lug Nut Seat Style: 60 Degree Conical

      Nostalgic style wheels for the Square-Body C10

      Halibrand Sprint Wheels for the Square-Body C10 are a nostalgic styled wheels based on the original classic "Sprint" wheels, but updated to fit modern tire sizes and modern tapered seat lug nuts. They were engineered specifically for the C10 Square-Body fleet side trucks with proven fitment, tire clearance, and backspacing optimized to fill up the wheel openings. These wheels eliminate the fitment guesswork and tire rubbing that can be common with generic-sized after-market wheels. The Flow-Formed wheel manufacturing process applies pressure and heat to the wheel casting while it is spinning to stretch and compress the aluminum. The finished wheel is lighter, stronger, and features a higher shock resistance and load capacity compared to a standard cast aluminum wheel.

    Part TypeWheel
    Product LineHalibrand Sprint Polished Gloss Wheels
    BrandHALIBRAND WHEELS
    Package Height16.0
    Package Width23.0
    Package Length23.4
    Weight44.91 PG
    Center Bore Diameter3.083 in (78.308 mm)
    Wheel Diameter20 in (508 mm)
    Wheel Bolt Pattern5 x 5 (127 mm)
    Wheel TypeCar Street Wheels
    Wheel Offset-37 mm (-1.4567 in)
    Wheel Width10 in (254 mm)
    Wheel MaterialFlow-Formed Aluminum
    Wheel FinishPolished
    Back Spacing4 in (101.6 mm)
    Vendor Part NumberHB007-063
    Package Qty1
    Package TypeEA
