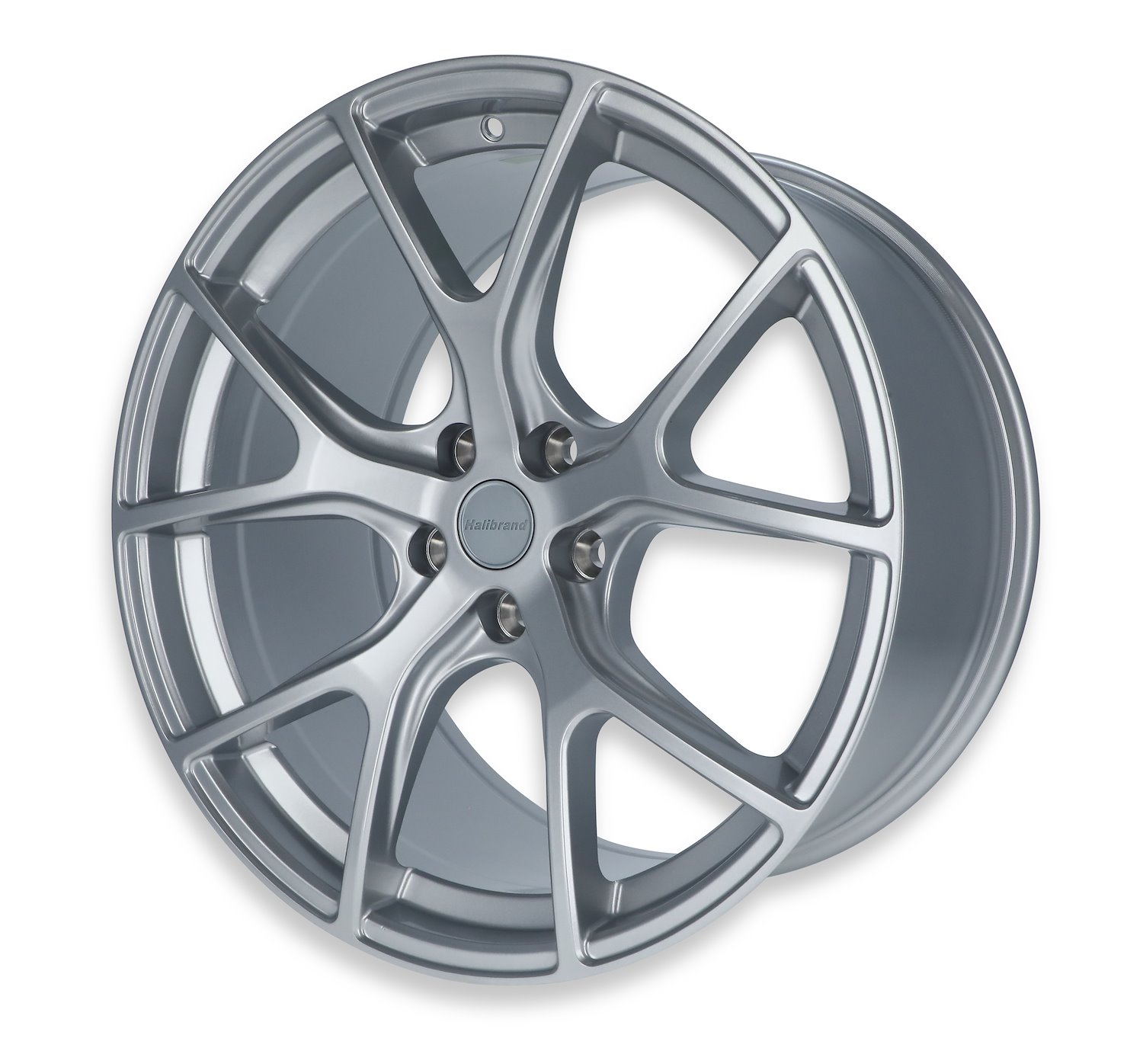

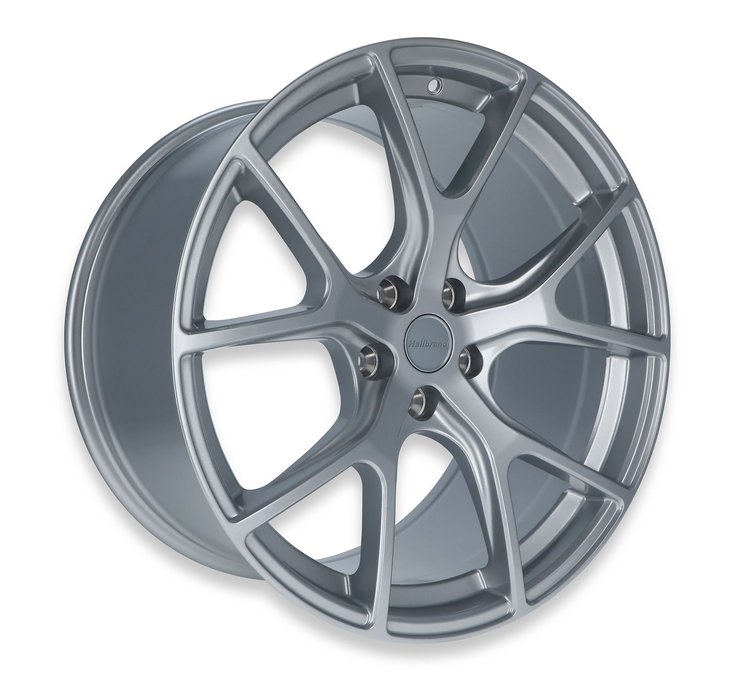

Split-Spoke Rear Wheel, Size: 20x11", Bolt Pattern: 5x4.5", Backspace: 7.97" [Gloss Silver]
Product Discontinued
HALIBRAND WHEELSPART NUMBER: 524-HB012-012

Split-Spoke Rear Wheel, Size: 20x11", Bolt Pattern: 5x4.5", Backspace: 7.97" [Gloss Silver]

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Items You Need

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

JEGS

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

Part Number : 555-W32902
$4199$46.99
You Save$5.00
Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

JEGS

Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

Part Number : 555-W32903
$5699$62.99
You Save$6.00
1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

JEGS

1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

Part Number : 555-M200DB
$5239$56.99
You Save$4.60
Round Magnetic Parts Tray [5 1/2 in. Round]

JEGS

Round Magnetic Parts Tray [5 1/2 in. Round]

Part Number : 555-80080
$549$5.99
You Save$0.50

  • Size: 20x11
  • Bolt Pattern: 5x4.5
  • Backspace: 7.97
  • Finish: Gloss Silver


  • JEGS How to Measure Wheel Fitment: Click Here

    Halibrand HB012-012 Features:

    • Offset: 50
    • Center Bore: 3.083"
    • Material: A356 Aluminum
    • Wheel Construction: Flow Formed
    • Load Rating: 900 (kg)
    • Center Cap Included: Yes
    • Lug Nut Seat Style: 60 Degree Conical

      Modern Mopar Application Split-Spoke Wheels

      Halibrand's Split-Spoke wheels were designed for Modern Mopar applications with ideal sizes tailored to the vehicle, hub centric mounting, and proven fitment & tire clearance. The unique front and rear offset fill up the wheel openings and moves the wheels out closer to flush with the body. The Flow-Formed wheel manufacturing process applies pressure to the wheel casting while it is spinning to stretch and compress the aluminum. The finished wheel is lighter, stronger, and has a higher shock resistance & load capacity - as compared to a standard cast aluminum wheel. A color-matched, snap in polymer center cap is included with each wheel, but factory Mopar center caps from applicable vehicles can be re-installed for a more OE look if desired.

    Part TypeWheel
    Product LineHalibrand Split-Spoke Gloss Silver Wheels
    BrandHALIBRAND WHEELS
    Package Height13.0
    Package Width21.3
    Package Length21.9
    Weight33.42 PG
    Backspacing7.97 in.
    Center Bore Diameter3.083 in.
    ColorSilver
    Wheel Bolt Pattern5 x 4 1/2 (114.3 mm)
    Wheel Diameter20 in.
    Wheel Offset37 mm (1.4567 in)
    Wheel TypeCar Street Wheels
    Wheel Width11 in.
    Wheel MaterialFlow Formed Aluminum
    Bolt Pattern5 x 4.5 in.
    Wheel FinishSilver
    Back Spacing7.97 in (202.438 mm)
    Offset1.456 In.
    Vendor Part NumberHB012-012
    Package Qty1
    Package TypeEA
