Vehicle Info NeededHAYSPART NUMBER: 490-10-026

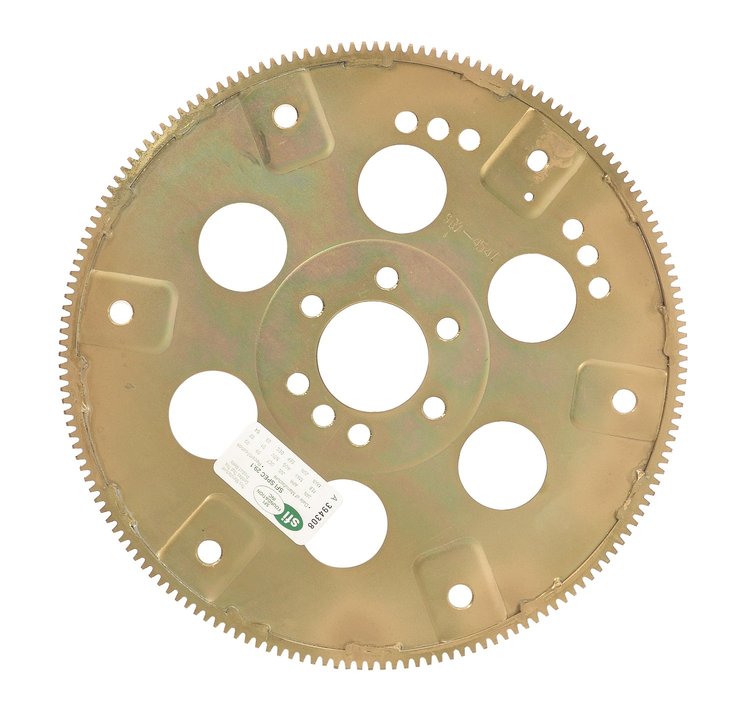

Heavy-Duty Flexplate 1991-97 Big Block Chevy Gen-V
$23695
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeChevyExternal Balance
Heavy-Duty Flexplate 1991-97 Big Block Chevy Gen-V External Balance 1-Piece Rear Main Seal 168-Tooth 10.75''/11.5'' Dual Converter Bolt Pattern SFI 29.1 Approved Zinc Dichromate Finish
HAYS / MR GASKET 10-026 Features:
Constructed of thicker than stock steel plate to withstand the stress of high stall speed converters and high RPM enginge Securely welded ring gear with dual bolt pattern for use with either Powerglide or Turbo-Hydromatic transmission Meets SFI specification 29.1 for racing Hays heavy-duty flexplates for high performance and competition engines are constructed of a thicker than stock steel plate, enabling them to withstand the stress of high-stall torque converters and high-RPM engines. While factory stock plates tend to crack around the crankshaft hub when punished under high torque and RPM conditions, the thicker Hays flexplate handles the force. These H.D. flexplates are supplied with a ring gear that is securely welded in place and feature dual bolt patterns for use with either a Powerglide or Turbo-Hydromatic torque converter. All Hays heavy-duty flexplates are zinc-dichromate plated to resist corrosion and are SFI certified under specification 29.1.- S.F.I. 29.1 Certified
- 168 Tooth Ring Gear
- For External Balance Gen-V Big Block Chevy V8 engines
- Zinc Dichromate Plated
Part TypeFlexplate
BrandHAYS
Package Height0.7
Package Width14.1
Package Length14.2
Weight7.54 PG
Part CategoryPerformance Parts
Ring Gear Tooth Quantity168-tooth
Flexplate MaterialSteel
Sfi Certification29.1
Rear Main Seal Style1-piece
QuantitySold individually
MaterialSteel
Part FitmentSemi Universal
Safety RatingSFI 29.1
FinishZinc Dichromate
Engine BalanceExternal
Vendor Part Number10-026
Package Qty1
Package TypeEA
