Vehicle Info NeededHOLLEYPART NUMBER: 510-12-289-13

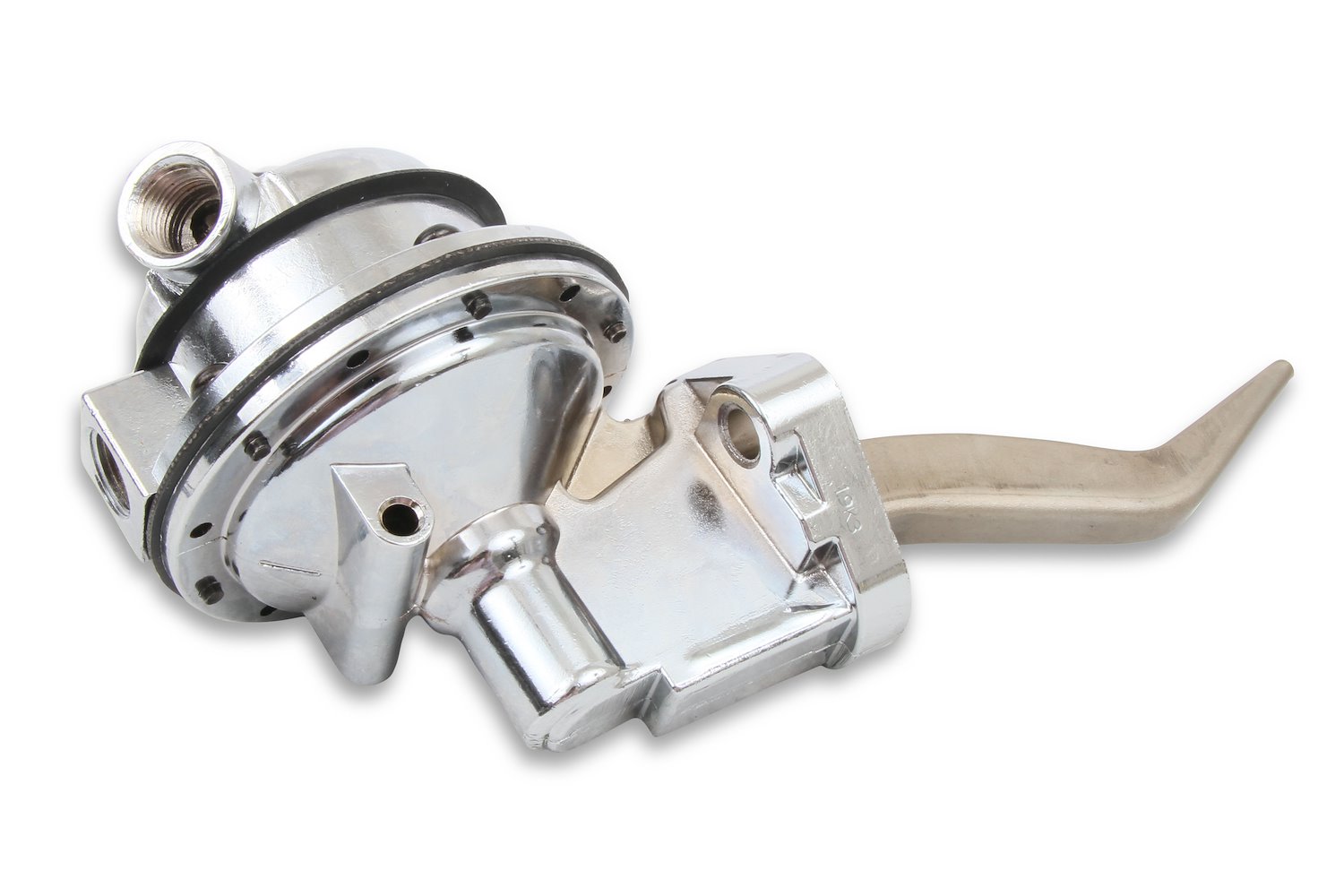

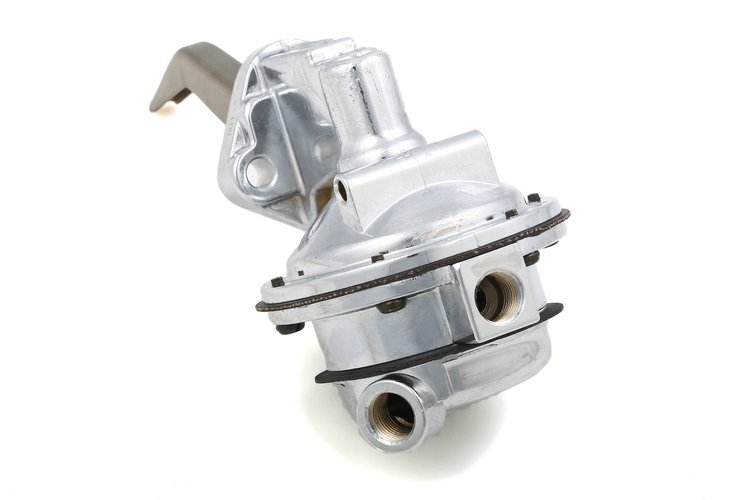

12-289-13 130+ GPH Mechanical Fuel Pump Ford 289, 302, 351W
$24995
8 left in stock
Ships on Sep 14, 2026
Lowest Price GuaranteeFord Fuel Pumps
- 130+ GPH Mechanical Fuel Pump
- Ford 289, 302, 351W
- High Output Fuel Flow
- Flows 130 Plus GPH/Free Flow
- Shutoff Pressure Pre-Set At 7.5-9 PSI
- Heavy Duty Const. For High RPM Operation
- Redesigned High Flow Valves
- Ensures Adequate Fuel Delivery
- Inlet/Outlet Tapped For 3/8 in. NPT
- Fuel Pressure Regulator Is Required
Holley 130+ GPH (Gallons Per Hour) mechanical fuel pumps are designed for racing applications when maximum fuel delivery requirements are necessary. These fuel pumps feature a pump shut-off pressure which is pre-set for 7.5-9 psi. Unlike the 110 GPH Pumps, these 130 GPH pumps require a fuel pressure regulator.
Features
- High Output Fuel Flow
- Flows 130 GPH Free Flow
- Shutoff Pressure Pre-set from 7.5 to 9 PSI
Show More
- Fuel Pressure Regulator Required
- Heavy Duty Construction For Continuous High RPM Operation
- Fuel Body Casting Can Be Rotated to Accommodate Various Plumbing Situations
- Inlet & Outlet Tapped For 3/8" NPT
Part TypeMechanical Fuel Pump
Product LineHolley 130+ GPH Mechanical Fuel Pumps
BrandHOLLEY
Package Height4.4
Package Width6.4
Package Length10.3
Weight1.96 PG
Part CategoryPerformance Parts
Outlet Size3/8 NPT
Maximum Pressure (Psi)7.5 to 9
Outlet AttachmentFemale Threads
Outlet QuantityOne
QuantitySold individually
Inlet QuantityOne
Part FitmentSemi Universal
Inlet AttachmentFemale Threads
Inlet Size (In.)3/8 NPT
Free Flow Rate130 gph
Vendor Part Number12-289-13
Package Qty1
Package TypeEA
