Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side.

Features:

• 12-volt operation
• 7-10 psi operating pressure
• 34 gallons per hour flow
• Good for up to 400HP naturally aspirated
• Reliable solid state design provides longer life
• Compatible with all fuels and fuel additives (gas, diesel, blended alcohol, ethanol, e-85)
• Simple 2-wire hookup
• Self-priming and regulating
• 50' dry lift capable
• Quiet operation - 65db
• Great for carbureted trucks, cars, generators and agricultural equipment - also makes a great transfer pump
• Engineered and matched performance with Holley, Demon, Quick Fuel and Edelbrock carburetors(all trademarks are property of their respective owners. Edelbrock is a registered trademark of Edelbrock,LLC)

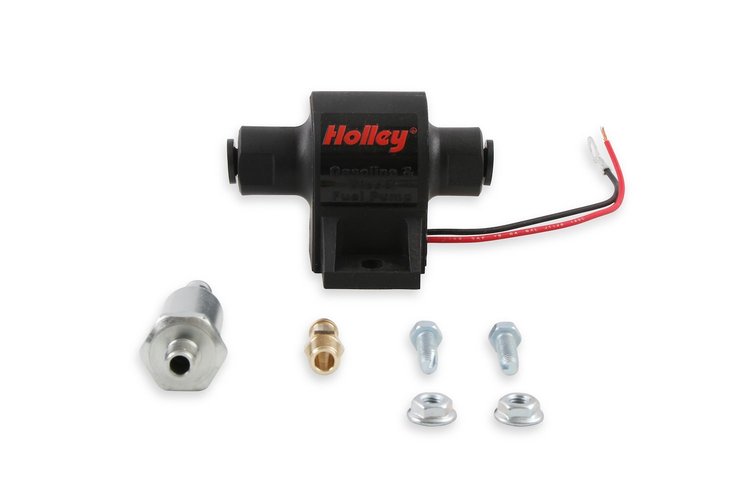

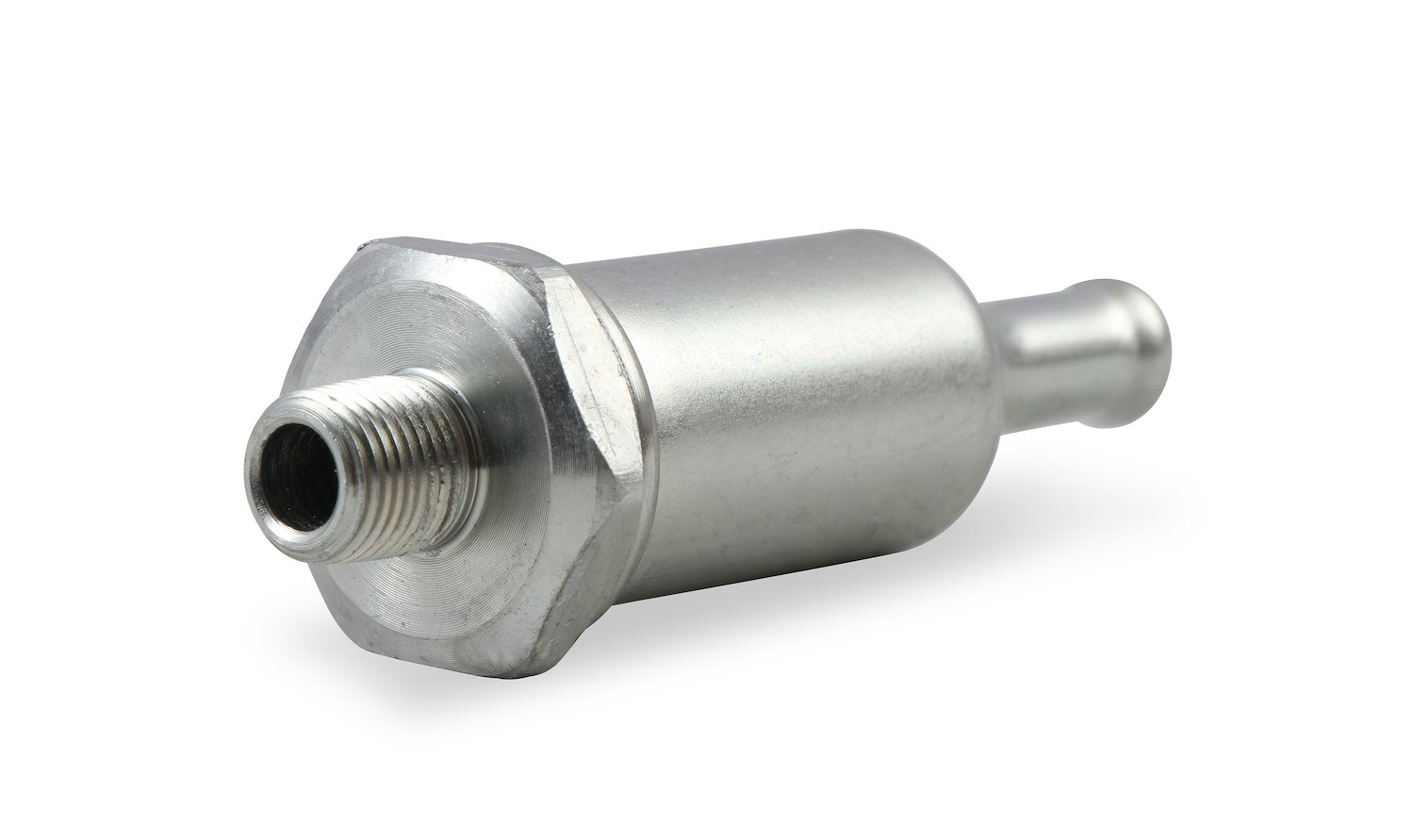

• Comes with fuel filter, fittings and mounting hardware
• 1/8" x 5/16" Hose barb fittings
• Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side
• Perfect for a Diesel lift pump!
• Made in the USA
