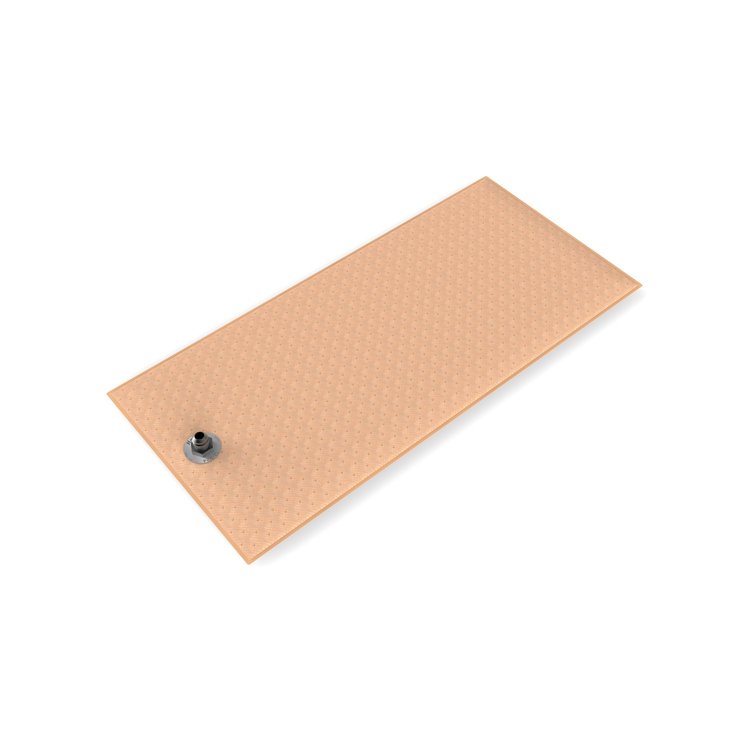

12-924-1 HydraMat Rectangle 30 in. x 14 in.

Name: 12-924-1 HydraMat Rectangle 30 in. x 14 in.
Brand: HOLLEY
SKU: 510-12-924-1
Price: 1171.95 USD
Availability: InStock

^$1,171⁹⁵

Ships on 09/16/2026

Lowest Price Guarantee

HydraMat
Rectangle

HydraMat

30 in. x 14 in. Rectangle

Side Pick-Up

-10 AN Male Fitting

Fitting Location Designed for Circle Track Use

Holley 12-924-1 Features:

The amazing HydraMat® is Holley's patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. HydraMat is the solution!Surface tension and fluid wicking are the secrets of the HydraMat, giving it the amazing ability to draw from nearly any area that has contact with fuel and then store it in its internal reservoir. As an area of the HydraMat is uncovered, the tiny pores of the media seal off through surface tension, forcing fuel to be contained in the reservoir and drawn from other areas of the mat where fuel continues to be available. The sheer size and coverage area of the HydraMat allows it to pull fuel from virtually any area in the tank or cell eliminating the need for specialty reservoirs and pick up pumps saving cost and greatly reducing complexity. HydraMats are available in various sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells.

Patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells
Greatly reduces the potential for air to enter into the fuel system which can result in poor engine performance and/or engine stalling
Perfect for vehicles experiencing fuel starvation during hard cornering, acceleration, stopping, inclines, and low fuel conditions
Surface tension and fluid wicking allow the HydraMat to continue to draw fuel from the tank or cell even when part of the mat uncovered
As an area of the HydraMat is uncovered, tiny pores in the media seal off through surface tension, forcing fuel to be drawn from other areas of the mat where fuel continues to be available
Unique internal reservoir assists in keeping fuel available at the pickup even under extreme fuel slosh conditions
Eliminates the need for specialty reservoirs, sumps and pick up pumps saving cost and greatly reducing complexity
Also acts as a 15 micron pre-filter eliminating the need for a separate filter before the fuel pump
Can be folded and compressed for easy installation through a variety of fuel cell openings
HydraMats are also available in other sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells
Works with Alcohol, Ethanol, Methanol, and E-85 fuels
Works with 2-cycle oil blends as high as 20:1
Not for use with most oils (see previous point for exceptions)
Not for use with diesel fuels

Eliminate Fuel Starvation Issues

Holley's HydraMat is a patent-pending fuel reservoir system designed to reduce fuel starvation issues present in hard cornering, acceleration, stopping, inclines, and low fuel conditions. Traditional fuel pickups can easily be starved of fuel, resulting in poor engine performance and even engine stalling. The HydraMat comes in various sizes and shapes to accommodate different tank sizes and openings. Square, rectangular, and "X" shaped mats are available to provide easy installation thru various sending unit access holes or fuel cell cover plates.

Part TypeFuel Tank Pickup

Product LineHolley Universal HydraMat Fuel Reservoir System

BrandHOLLEY

Package Height8.1

Package Width8.2

Package Length15.8

Weight1.45 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Grade TypePerformance

Fitting Inside Diameter (Mm)11

Vendor Part Number12-924-1
