HOLLEYPART NUMBER: 510-19-191

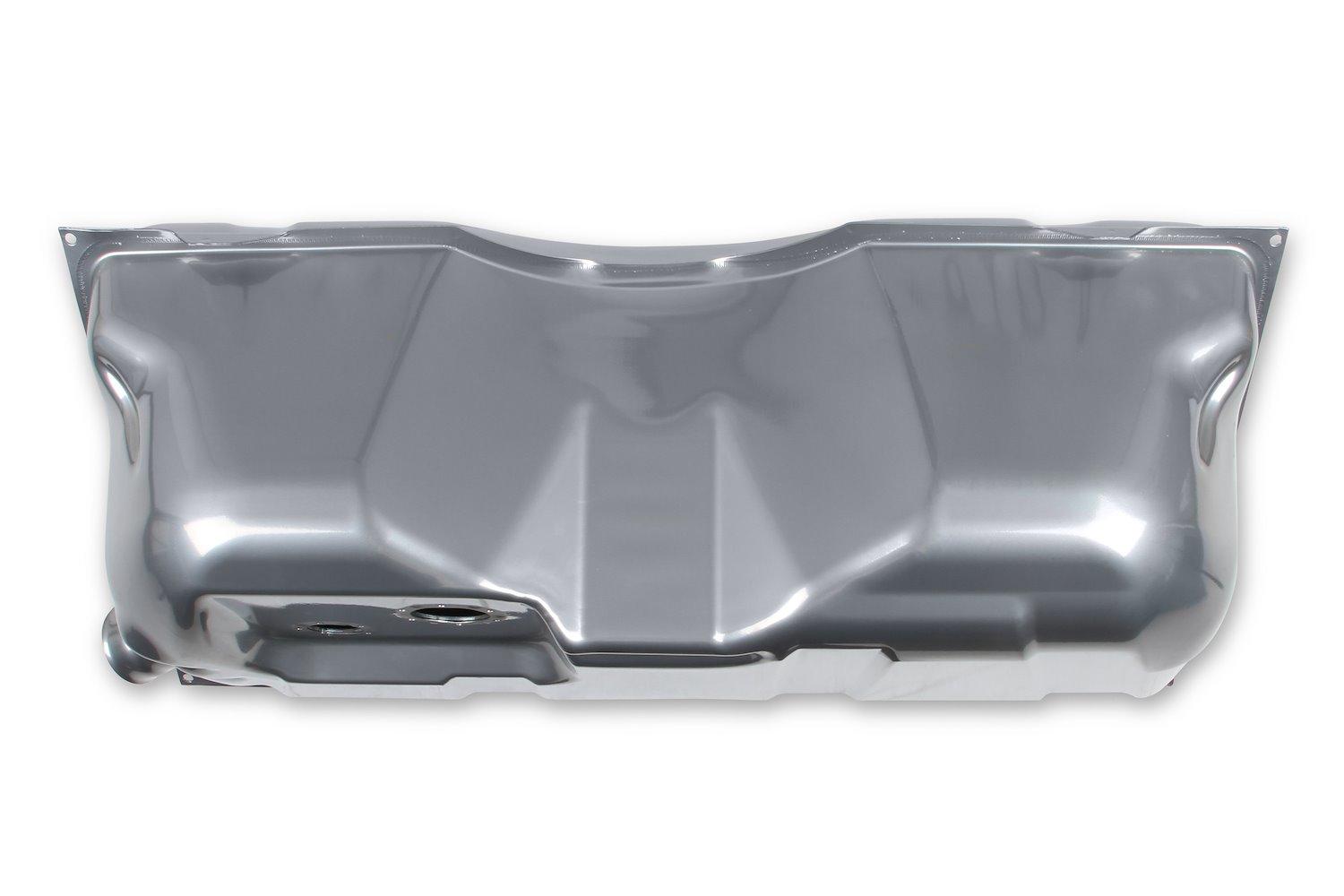

19-191 Sniper EFI Fuel Tank System 1957 Chevy Station Wagon and Sedan Delivery
$1,06595
GM
150/210/Bel Air
150/210/Bel Air
Sniper EFI Fuel Tank System1957 Chevy Station Wagon and Sedan Delivery 255 LPH Fuel Pump 17-Gallon Capacity Galvanized Steel Silver Powder-Coated Finish
19-191 Features:

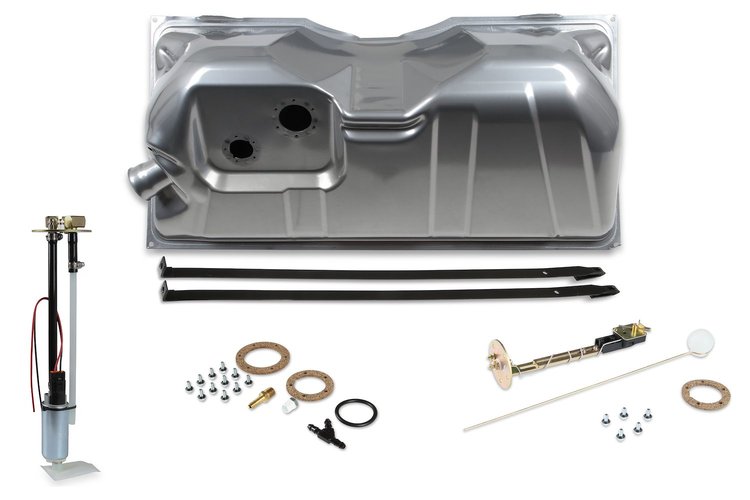

- Includes fuel tank, fuel level sender assembly, fuel pump and hanger, drain plug, and tank straps
- 0-30 Ohms fuel level sender for use with factory gauges
- 1/4 (.250) in. NPT fuel sender supply and return line ports
- Barbed vent fitting
- Supports up to 550 HP EFI (60 PSI at 13.5 V / 10.4 amp draw)
- Pump and sender recessed into the tank
- Tank baffling incorporates a 4.3-liter fuel tray to prevent fuel starvation
Notes:
- The filler neck that extends to the rear valance is not included
- Stock filler neck can be used
- Will not fit nine passenger wagons
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeFuel Tank and Pump Assembly Combination
BrandHOLLEY
Package Height8 in (203.2 mm)
Package Width25 in (635 mm)
Package Length24.5 in (622.3 mm)
Weight28.0 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Fuel Pressure Regulator IncludedNo
Filler Neck AttachedNo
QuantitySold as a kit
Fuel Tank MaterialGalvanized steel
Flow Rate255 lph (67 gal/hr)
Fittings IncludedYes
Part FitmentSemi Universal
Mounting Straps IncludedYes
Fuel Tank FinishSilver powdercoated
Package Qty1
Package TypeEA
