Holley 19-456

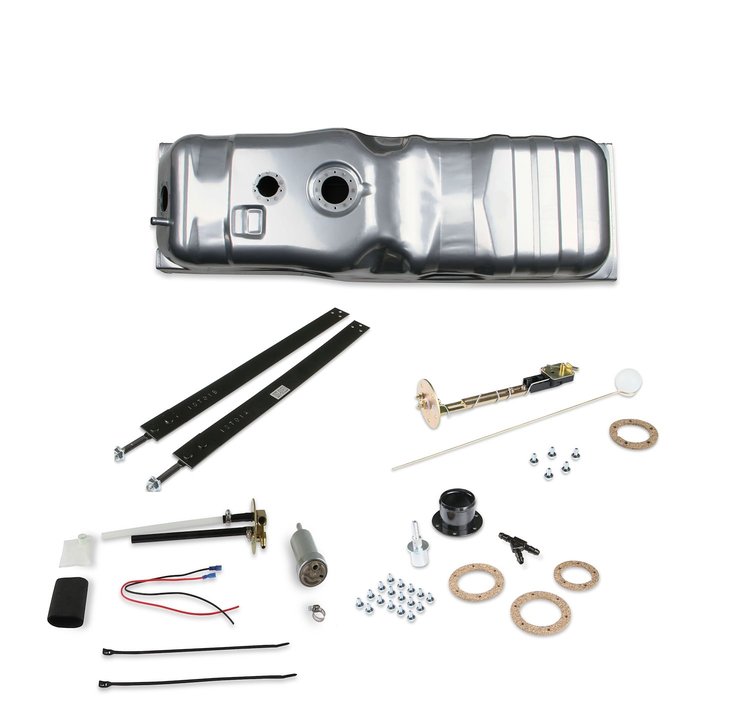

Breakdown of Included Items

Dimensions

Features:

• 0-90 Ohms fuel level sender for use with factory gauges
• 1/4 (.250) in. NPT fuel sender supply and return line ports
• Barbed vent fitting
• The fuel pump and fuel sender are recessed within the tank to provide easy installation - no modification necessary
• A large 4.3-liter internal fuel tray baffle prevents fuel pump starvation
• Supports up to 750 HP EFI (60 PSI at 13.5 V / 10.4 Amp draw)

Notes:

• Using the factory GM design, the tank will fit on both the driver and passenger side of the truck
• For better sealing, use Permatex Indian Head Gasket Shellac Compound 775-20539 or Aviation Form-A-Gasket Sealant 775-80019 on the gasket and screws

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
