Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

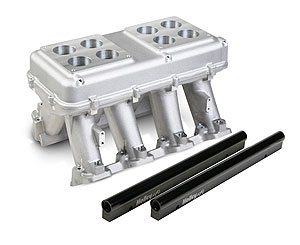

LS Modular Hi-Ram Intake
- EFI Hi-Ram Intake
- For LS3/L92
- Designed for use with 2 x 4500 Throttle Bodies, which are sold separately
- 2 x 2000cfm Sideways or Inline Mount
- Outstanding Power Potential
- Aggressive and Bold Race Styling
- Broad Power Range
Make Your Bad Intentions Known!
Holley GM LS Modular Hi-Ram Intake Manifold features aggressive race-bred styling for all-out performance! Intended for use where hood clearance is not a factor, Hi-Ram intakes feature straight long runners with a tall overall height for producing maximum power on naturally aspirated or forced induction engines at 7,000 to 8,000 RPM! Designed with a modular base to allow a wide variety of carbureted or EFI tops and also provides a great foundation for custom fabricated inductions. Hi-Ram LS intakes are perfect for any LS powered drag race, muscle car, marine, off-road, sandrail, pulling truck or street-rod application!
Show More
Features
- Cast aluminum available in natural or black ceramic coated finish
- 2.490 in. Height x 1.210 in. Wide Port Size
- Standard Molded O-Ring Mounting Flange Gasket
- 3/32 in. Round O-ring Cord Plenum Top Gasket
- EFI fuel rails are machined for -8 AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits
Part TypeIntake Manifold
Product LineHolley GM LS Modular High-Ram Intake Manifolds - EFI
BrandHOLLEY
Package Height13.0
Package Width14.75
Package Length21.5
Weight32.5 PG
Part CategoryPerformance Parts
Runners RemovableNo
Number Of CarbsTwo
Supplemental Bosses Cast-InYes
Plenum MaterialAluminum
EmissionWithout EGR
Engine Make/SizeGM LS
Basic Operating Rpm RangeIdle-8,000
Base FinishNatural
Rpm Range7000-8000
Injection StyleMulti-port
Supplemental Boss QuantityEight
Base MaterialAluminum
Plenum FinishNatural
Aftermarket Fuel Rail RequiredNo
Engine Block StyleStock/OEM standard deck
UsageRacing
Throttle Body IncludedNo
PositionUpper
QuantitySold individually
Cylinder Head TypeStandard
Injectors IncludedNo
Fuel Rails IncludedYes
Intake Section IncludedComplete
EgrWithout EGR
Supplemental Bosses MachinedNo
Runners IncludedYes
Part FitmentSemi Universal
Vendor Part Number300-114
Package Qty1
Package TypeEA
