Features:

• Designed for performance-minded LS engines with a 2,500-7,000 rpm power band
• Cast aluminum construction with consistent wall thickness throughout and strong mounting flanges
• Constant cross-sectional area produces a broad torque curve
• Accepts a carburetor with a Holley 4150 square bore flange
• The lowest carb flange height possible for improved hood clearance
• Ideal manifold for the centrifugal blower, turbocharger or nitrous power adders

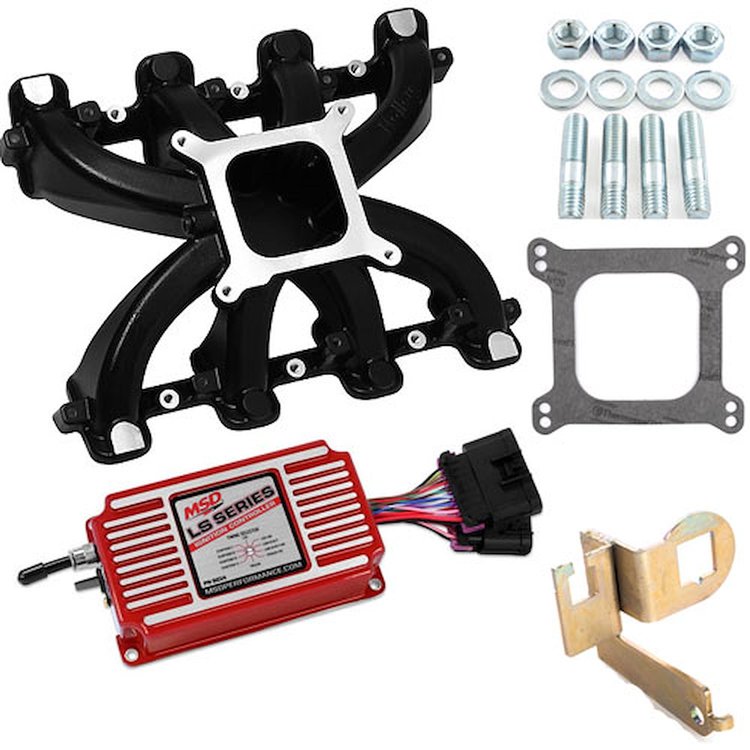

Kit Part Numbers

• Holley LS1/LS2/LS6 Cathedral Port Intake Manifold p/n 510-300-132BK
• MSD Ignition Controller 121-6014
• JEGS Carb Base Gasket p/n 555-16100
• JEGS Carb Studs p/n 555-15840
• JEGS Throttle/Transmission Cable Bracket 555-157310



  Intake Manifold Includes:
• Zinc plated hex head cap mounting bolts & washers
• 3/8" NPT hex socket pipe plug (to block the manifold vacuum port if necessary)
• 1/8" NPT hex socket pipe plug (to block the MAP sensor port if necessary)
• (8) Viton O-ring cylinder head mounting flange gaskets Intake Manifold Specs:
• RPM Range: 2,500 - 7,000
• Weight: 11.5 lbs
• Port Size: 2.50"H x 1.15"W
• Carb Mounting Flange Height from Lifter Valley Cover Flange: 5.42"
• Carb Flange: Standard Holley 4150, accepts up to 1.75" diameter throttle bores
• Vacuum Port Thread: 3/8" NPT
• MAP Sensor Port Thread: 1/8" NPT

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
