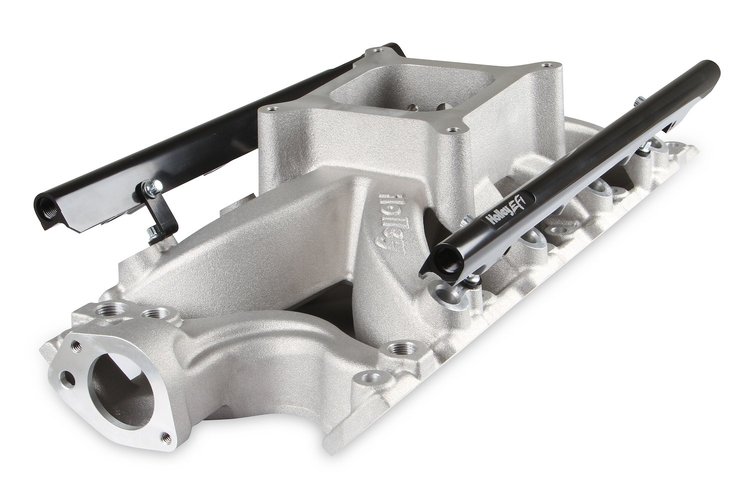

300-276 EFI Multi-Port 4150 Single Plane Intake Manifold Small Block Ford w/Fuel Rails
Items You Need
Holley 300-276 Small Block Ford EFI 4150 Intake Manifold Features:
- Engineered for Small Block Ford engines with an original block deck height of 8.200 in. and standard head port openings and bolt hole locations.
- 2500-7500 RPM range makes it an excellent choice for Small Block Ford engines including 347 ci. strokers for street performance.
- Includes high-volume fuel rails with -6 AN o-ring ports and mounting hardware.
- The fuel rail kit comes with two sets of brackets; one set for long fuel injectors (usually standard length), and one set for short fuel injectors (such as Pico/EV6 style fuel injectors)
- Isolated (air-gap) plenum with a square bore, single plane 4150 style flange with a height at the front of 5.580 in. and 6.400 in. at the rear.
- 1.820 in. height x 1.040 in. wide intake ports are cast with extra material to allow for porting to 2 in. height x 1.200 in. width.
- Threaded NPT (pipe) ports located under the carburetor flange in 1/8, 1/4, and 3/8 sizes.
Fitment Notes:
- Does not fit 1980-1982 Ford 255 ci. engines.
- Early 289 ci. engines require thermostat housing w/counterbore 555-511310 for the thermostat.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Upgrade to Electronic Multi-Port Fuel Injection for Modern Performance
Upgrading to a Holley EFI intake manifold will maximize the performance of your custom-built, multi-port electronic fuel injection system.
