Breakdown of Included Items

Dimensions

Features:

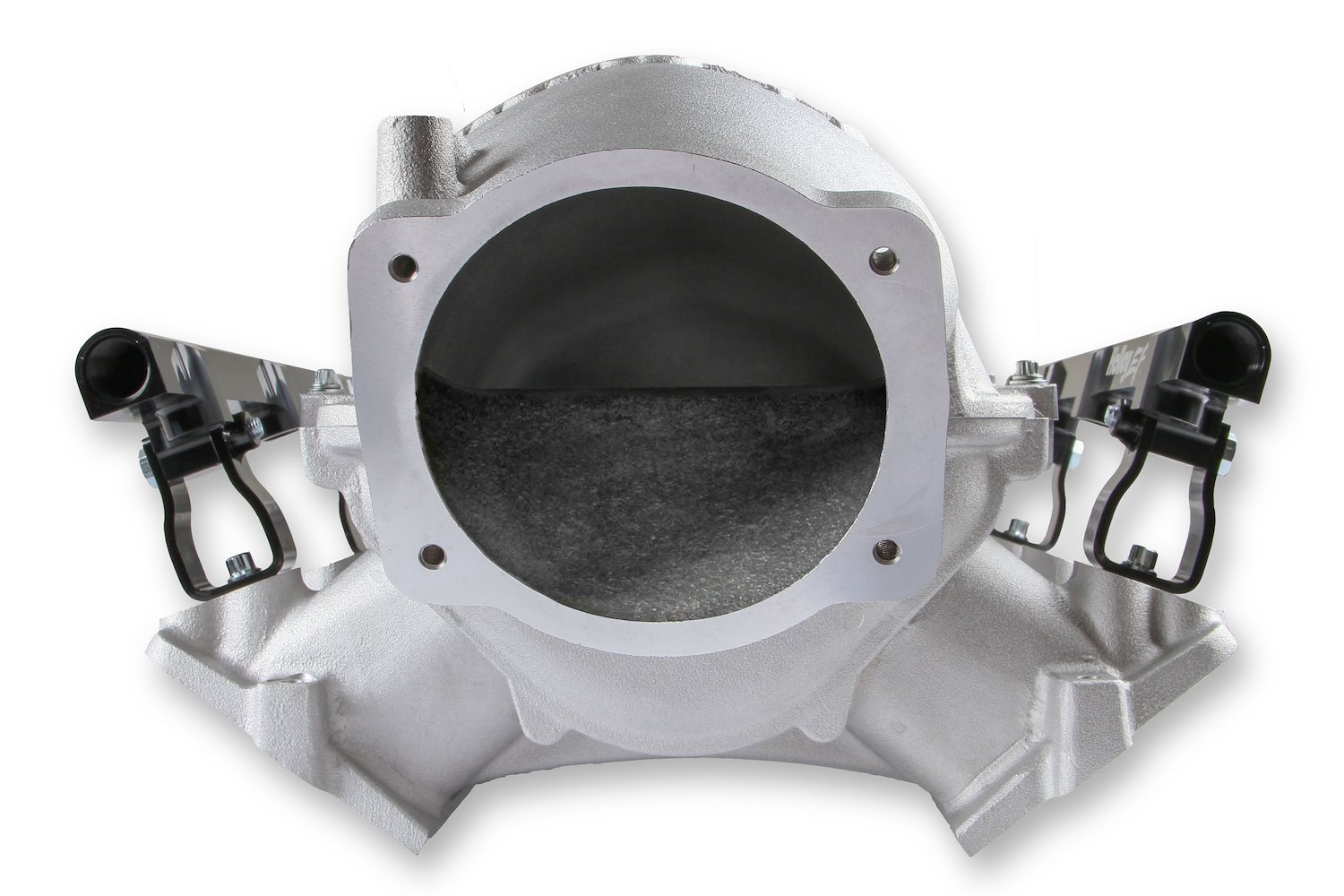

• Designed for GM LS Gen III and IV engines equipped with GM LS1/LS2/LS6 cathedral port stock or aftermarket cylinder heads
• 105 mm throttle body opening
• Designed for forced-inducted supercharged or turbocharged engine applications
• Peak power at 7,000-8,000 rpm (depending on the application)
• Top-feed plenum entry
• The low manifold height aids in the installation of a plenum mounted air-to-water intercooler in the top-feed configuration with a mildly modified hood
• Cast aluminum silver satin finish
• Includes high volume fuel rails with 8 AN (3/4 in. (.750) -16) o-ring ports and mounting hardware
  • The fuel rail kit comes with two sets of brackets; one-set for long fuel injectors (usually standard length), and one-set for short fuel injectors (such as Pico or LS7 fuel injectors)

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
