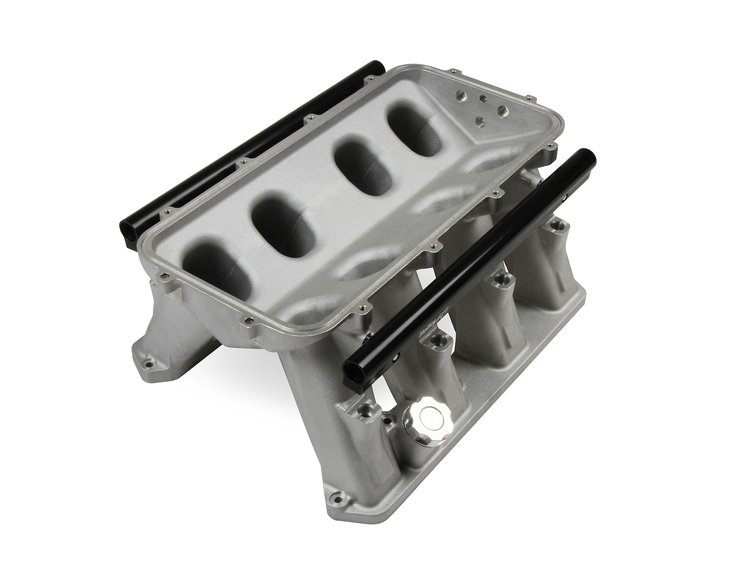

300-653 Hi-Ram EFI Intake Manifold Base, Fits 5.7L, 2005-2010 6.1L, and 6.4L Gen III Hemi Engines - Satin Finish
Items You Need
Holley 300-653
Features:
- A modular designed that accepts a wide range of EFI tops for building custom induction systems
- 1.700 in. H x 1.880 in. W intake port size
- Tapered cross-section with 6.650 in. L runners
- -8 AN o-ring EFI fuel rail fittings
- Large fuel rail passages provide high-flow and less pressure fluctuation in the fuel system
- Will work with Gen III Hemi injectors and Bosch EV-1 style injectors
- OE-quality intake manifold-to-cylinder head o-ring sealing
- Low-profile billet oil fill cap
- Positive crankcase ventilation (PCV) ports with included adapter fittings
- OE-style manifold absolute pressure (MAP) sensor port - 1 or 2 bar
- (2) 3/8 (.375) in. NPT and (1) 1/4 (.125) in. NPT vacuum ports
- Pads are casted-in for adding nitrous nozzles
Notes:
- Intended for use on naturally-aspirated, forced-induction, or nitrous-fed engines in the 5.7 to 7.2+ liter range - max power at 7,500-8,500 RPM
- Holley Intake Manifold Adapter Plates 510-300-652 may be used to match the smaller intake ports on early 2003-2008 Gen III Hemi 5.7L engines
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
High-Performance Cast Aluminum Intake Manifolds
Holley Hi-Ram EFI Intake Manifolds add big performance and aggressive-styling to the Gen III Hemi engine. If the height of your induction system is not an option, these cast aluminum intake manifolds are a great option for high-performance naturally-aspirated and forced-induction applications, adding an increase in air velocity and fuel demand.
