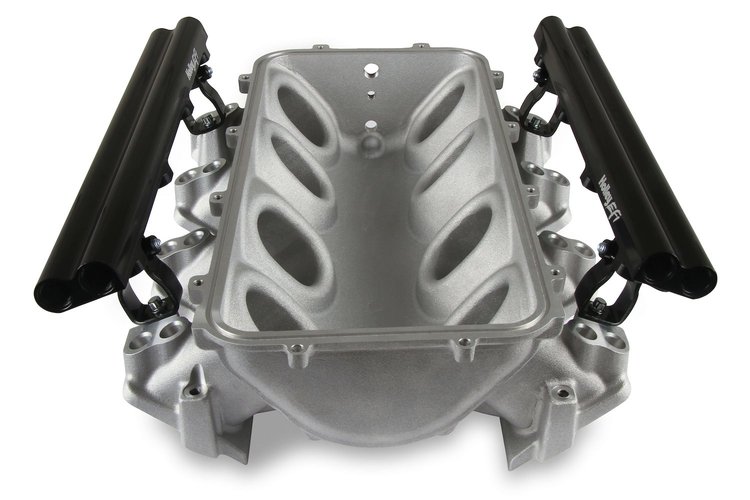

Lo-Ram Intake Manifold Base and Dual-Injector Fuel Rail Kit GM LS3/L92 - Satin Finish
Product Discontinued
HOLLEYPART NUMBER: 510-300-671

Lo-Ram Intake Manifold Base and Dual-Injector Fuel Rail Kit GM LS3/L92 - Satin Finish

Color:

Black
Silver
Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Intake Manifold Base
LS3/L92
Lo-Ram Intake Manifold Base and Dual-Injector Fuel Rail Kit
  • GM LS3/L92
  • Satin Finish
  • Sold Individually

    300-671 Features:

    • Includes (2) high-volume dual-injector fuel rails with 3/4 in.-16 (8 AN) O-ring ports and mounting hardware
    • This is the intake manifold base for Holley Modular Lo-Ram EFI Intake Manifold 510-300-683
    • For GM LS Gen III and Gen IV engines with stock or aftermarket GM LS3/L92 cylinder heads
    • Designed for forced-inducted supercharged or turbocharged engine applications
    • Peak power at 7,000-8,000 RPM (depending on the application)
    • The low manifold height aids in the installation of a plenum mounted air-to-water intercooler in a top-feed configuration or fitting under a stock or mildly modified hood in the front-feed configuration
    • The fuel rails are dual-fuel compatible
    • Base plenum top mounting flange height - 5.670 in.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Low-Profile Intakes for the Street or Strip!

      Holley Modular Lo-Ram and Ultra Lo-Ram Intake Manifolds deliver big performance within a low-profile package. Each intake manifold features short runners and a large 105 mm throttle body opening for forced-induction engines. The low plenum height allows for fitting under most stock hoods, making them an excellent choice for both street or strip applications, providing race-inspired performance and appearance.

    Part TypeIntake Manifold
    Product LineHolley GM LS Modular Lo-Ram and Ultra Lo-Ram Intake Manifolds
    BrandHOLLEY
    Package Height6.69
    Package Width14.17
    Package Length19.69
    Weight19.51 PG
    Part CategoryPerformance Parts
    Fuel Rail MaterialAluminum
    Intake MaterialCast Aluminum
    Throttle Body IncludedNo
    Gasket Or Seal IncludedYes
    ColorSilver
    Fuel System TypeEFI
    QuantitySold individually
    Mounting Hardware IncludedYes
    Cylinder Head TypeLS3/L92
    Intake FinishSatin
    Injectors IncludedNo
    Fuel Rails IncludedYes
    Engine Make/SizeGM LS
    Intake Section IncludedBase only
    EgrNo
    Fuel Rail FinishBlack
    Package Qty1
    Package TypeEA
